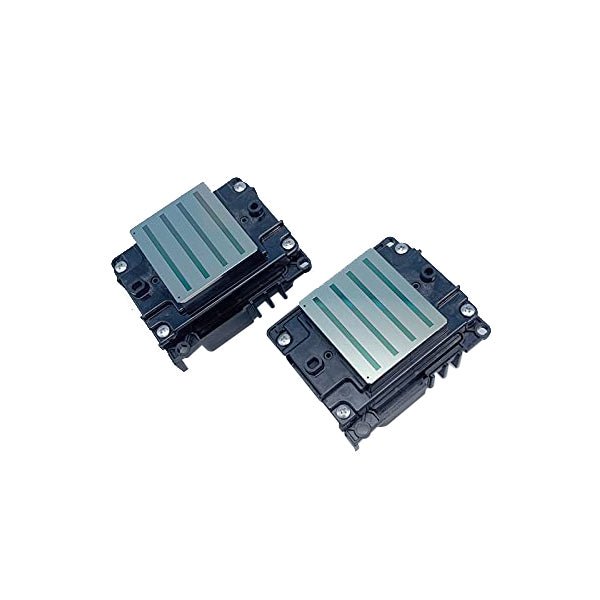

STS Inks EPSON i3200-A1 Printhead

Sold individually

The Epson I3200-A1 Water Printhead is a high-performance, cost-effective precision printhead designed for aqueous (water-based) inks. Built with PrecisionCore Micro-TFP technology, it delivers excellent image quality and reliability:

• 3200 nozzles across 8 rows, giving ultra-fine control and consistent output. printheadstore.com+2printheadparts.com+2

• High resolution: native 600 dpi (600 npi over 2 rows) for crisp, detailed prints. i3200.eu+1

• Variable drop sizes: supports variable-sized droplet technology (VSDT), enabling greyscale gradients with droplets like 6.3 pl / 12.3 pl at 21.6 kHz, and 3.8 / 6.1 / 9.4 pl in 4-level greyscale. gsmfloridagroup.com+2printheadparts.com+2

• Fast jetting frequency: binary jetting at up to 43.2 kHz. i3200.eu

• Compact form factor: 69.1 × 59.4 × 35.6 mm, 82g weight. printheadstore.com

• Effective print width: 33.8 mm (~1.33 in). i3200.eu

• Ink compatibility: 4-color water-based (aqueous) inks; viscosity range: ~3–4 mPa·s. gsmfloridagroup.com+1

• Durability: High-durability design intended for industrial use; Epson MEMS nozzles provide long life and consistent performance. SUBLICOOL

Applications:
Ideal for DTF (direct-to-film), DTG (direct-to-garment), or any wide-format or specialty printers using water-based pigment or dye inks. Because of its high nozzle count and variable droplet capabilities, it’s well-suited for high-resolution imagery, smooth gradients, and fast production environments.
