Mimaki UCJV330 UV Printer - McLogan Supply

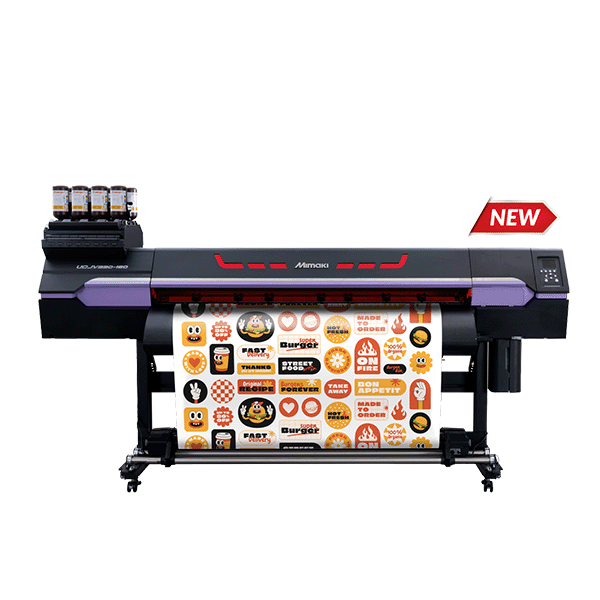

Mimaki UCJV330 UV Printer

by Mimaki
SKU
$0
$27,995.00 - $29,995.00
$27,995.00
$27,995.00 - $29,995.00
$27,995.00
Size: 54 Inch
 More payment options

Introducing the UCJV33O

The revolutionary UV-LED printer/cutter engineered to redefine image quality, speed, and creative versatility for modern professionals.

UCJV330 Series

Large Format UV-LED Printer/Cutter

UCJV330 _websiteandMobile_Resource page_620x474.png__PID:e17a2743-abc1-4f47-9324-3a8baa7f5e38

Experience unrivaled performance with the Mimaki UCJV330 Series – a groundbreaking UV-LED printer/cutter that delivers superior image quality and rapid production. Designed for versatility, it elevates your creative potential. Boosting truly creative output.

check.png__PID:3e47f255-9e98-46b2-b12e-a7b19ff00b4e

High-quality UV-LED printing delivers stunning visuals instantly.

check.png__PID:3e47f255-9e98-46b2-b12e-a7b19ff00b4e

Rapid production with efficient print & cut functionality.

check.png__PID:3e47f255-9e98-46b2-b12e-a7b19ff00b4e

Versatile 2.5D and watermark printing for endless creative options.

UCJV330-130UCJV330-160
Print headOn-demand piezo head (2 staggered layout)
Print resolution Y: 600, 1200 dpi X: 600, 1200, 1800 dpi
Print gapBy manual 3 levels (2.0/2.5/3.0 mm)
InkType/ColorLUS-170：C,M,Y,K,Lc,Lm,W,Cl
LUS-175：C,M,Y,K,Lc,Lm,W,Cl *1
LUS-200：C,M,Y,K,W
LUS-190：C,M,Y,K,W *1
LUS-210：C,M,Y,K,W *1
Capacity 1L bottle
Ink circulationCirculation in damper MCTv2
Maximum print width1,360mm (53.5")1,610mm (63.4")
Maximum width 1,370mm (53.9")1,620mm (63.8")
Thickness1 mm or lower
Roll diameterφ250 mm or less
MediaMountable no.Standard : 1 roll / Option : 3 rolls (with the Media changer)
Roll weightOne roll：Max. 45 kg (99.2 lb) or less
Three rolls：Total 90 kg (198.4 lb) or less
Roll inside diameter2 inch / 3 inch
Media cuttingAuto cutting by cutter of head unit *2
Cutting speed Max. 300 mm/s
AccelerationMax. 0.5G
Cutting functionCutting pressure 10 - 450 gf
Cutter response times 10 times/sec
Repeatability ±0.2 mm (Excluding shrinkage / expansion caused by the film temperature)
Interface Ethernet 1000 BASE-T (Recommended) / USB2.0 Hi-speed
Certifications VCCI class A, FCC class A, ETL IEC 62368-1,
CE Marking (EMC, Low voltage, Machinery directive, and RoHS),
CB, REACH, Energy Star, RCM, KC, UKCA
Power supply Single phase AC100-120V±10% /12A or
Single phase AC200-240V±10% /6A
50/60Hz±1Hz
Power consumption Max.1,440W or less ×1 / 800W (Continuous operation) / 4.5W or less (Sleep mode)
Operational environment Temperature: 20–30 °C (68–86 °F)
Humidity: 35–65% Rh (Non condensing)
Recommended temperature: 20–25 °C (68–77 °F)
Dust level: General office level
Dimensions (W x D x H) 2,640 x 800 x 1,480mm
(103.9 x 31.5 x 58.3")
2,890 x 800 x 1,480mm
(113.8 x 31.5 x 58.3")
Machine weight 217kg (478.4 lb) 227kg (500.4 lb)

*1 Only available in specific countries
*2 Cut shape can be V-shaped cut or straight cut.

Ink Set

Ink SetInk Configurations
LUS-170 ［C,M,Y,K,Lc,Lm,W,Cl］C　M　Y　K
C　M　Y　K　Lc　Lm　W
C　M　Y　K　W　Cl
LUS-175 ［C,M,Y,K,Lc,Lm,W,Cl］C　M　Y　K
C　M　Y　K　Lc　Lm　W
C　M　Y　K　W　Cl
LUS-200 ［C,M,Y,K,W］C　M　Y　K
C　M　Y　K　W
LUS-210 ［C,M,Y,K,W］C　M　Y　K
C　M　Y　K　W
  • Some of the screens and printing samples in this website are artificial renderings.
  • Specifications are subject to change without notice.
  • All trademarks or registered trademarks are the property of their respective owners.
  • Inkjet printers print using extremely fine dots, thus colors may vary slightly following replacement of the printing heads. Also note that if using multiple printer units, colors may vary slightly among the units due to slight individual differences among the units.

Precautions for UV printing

⚠️ Inks and substrates:

  • Please note that properties and adhesion, weather resistance etc. of ink and substrates can vary. Therefore please test materials before printing.
  • Some substrates require primer before printing. Please test materials beforehand or ask your sales representative.

⚠️ Safety notice:
You are dealing with UV light sources that may harm your health. Please follow below guidelines strictly:

  • Do not look directly into the UV light source nor place your hand, or expose your skin directly to the UV light source.
  • Depending upon print mode, there might occur some VOC emittance from printed parts not yet cured and hardened.
  • In addition, please read the instructions and guidelines of the manual carefully and follow those.
Mimaki LUS - 170 UV Ink - McLogan Supply
Mimaki LUS - 170 UV Ink - McLogan Supply

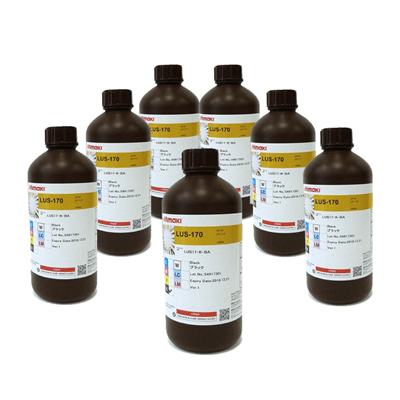

Mimaki LUS-170 UV Ink

$173.00

Mimaki LUS-170 UV Ink: Immediate Curing and Adhesion by UV Radiation - An Ecological and Energy-Saving Ink

The Mimaki LUS-170 UV-curable ink is uniquely designed to cure and adhere to various media and substrates through UV radiation. This means that prints are instantly dried as they exit the printer, making it perfect for meeting tight delivery schedules. This ink allows printing on non-absorbent materials such as plastic, glass, and metal, expanding the possibilities for diverse applications.

As an ecological and energy-saving solution, the LUS-170 ink not only provides exceptional print quality but also supports sustainable practices in printing. Mimaki offers a comprehensive range of UV-curable ink products, catering to a wide array of industries such as decoration, architecture, and industrial design, enabling creative expression and innovation.c



View Details
Mimaki Maintenance Liquid 16 200ml bottle - McLogan Supply
Mimaki Maintenance Liquid 16 200ml bottle - McLogan Supply

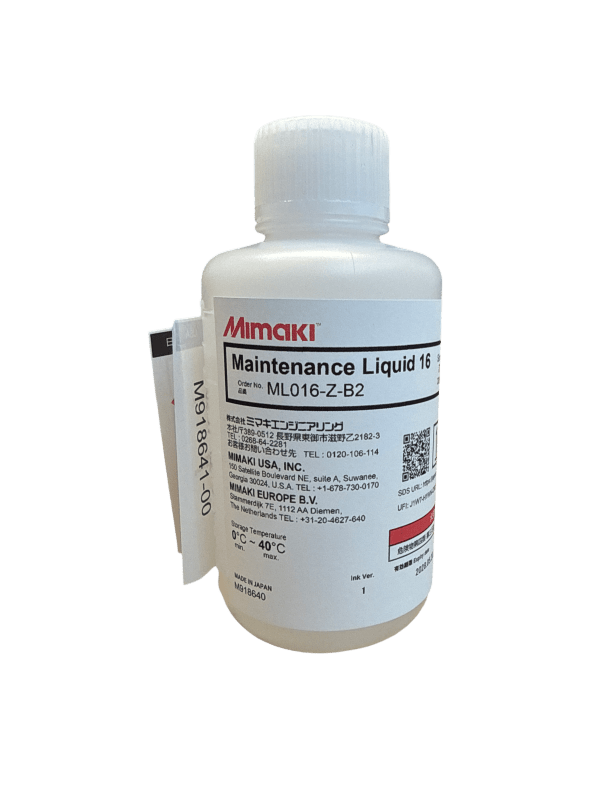

Mimaki Maintenance Liquid 16 200ml bottle

$35.00

Mimaki Maintenance Liquid 16 – 200ml Bottle

Mimaki Maintenance Liquid 16 is a specialized cleaning solution designed to keep your printer in top condition. It effectively removes ink buildup, prevents clogging, and ensures smooth operation of critical components such as printheads, wipers, and caps. Regular use helps extend the lifespan of your printer and maintain consistent print quality.

Key Features:

  • Removes dried ink and prevents clogging

  • Ideal for cleaning printheads, wipers, and capping stations

  • Essential for routine printer maintenance

  • Compatible with select Mimaki printers


View Details
UCJV330_Series_Brochure

Download Your UCJV330 Series Brochure

Download your digital brochure to explore in-depth features,
benefits, applications, and technical specifications of the UCJV330 Series.

Download Brochure
UCJV330 Series Spec

Download Your UCJV330 Series Specsheet

Get your digital guide to all the features, applications,
benefits, and specifications of the UCJV330 Series.

Download Specsheet
UCJV330-uai-1120x630 play.JPG__PID:8888c13f-71e1-47bc-bd94-c045418b8761

Leading The Way
For UV-LED Technology

The new UCJV330-160 integrated printer/cutter offers extremely versatile UV-LED roll-to-roll inkjet printing with significantly improved productivity and image quality for sign graphics applications. With production speeds of 301 sqft/hr for a four-color configuration or 194 sqft/hr with White and/or Clear inks, the UCJV330-160 enables users to provide their customers with impressive turnaround times and produce more jobs with increased efficiency. In addition, the high speeds achievable with this technology do not compromise the image quality. This is thanks to Mimaki’s newly developed patent pending ink ejection technology that reduces color irregularities in high density areas even in high-speed output mode.

All Your Ideas.
One Exceptional Printer.

Outdoor signboard

Banners & fabric flags

Labels

Exhibition Graphics

Illumination signboard

Floor signage

Illumination signboard

Floor signage

Innovative Print Solutions
Empower Creative Output

1.png__PID:821359a9-95a0-4933-8a77-3cd5767a5f2d

Vibrant Colors

Experience breathtaking color intensity with advanced UV-LED inks that deliver a broad, true-to-life color gamut.

2.png__PID:1359a995-a039-430a-b73c-d5767a5f2db6

Exceptional Quality

High-definition print heads and innovative technology ensure flawless, consistent output every time.

3.png__PID:59a995a0-3933-4a77-bcd5-767a5f2db6bd

High-Speed Performance

Instant ink curing and rapid production keep your workflow moving without compromising detail.

4.png__PID:a995a039-330a-473c-9576-7a5f2db6bd09

Cost-Efficient Operation

Optimized energy consumption and smart ink usage significantly lower operating expenses.

5.png__PID:95a03933-0a77-4cd5-b67a-5f2db6bd098a

Simple Maintenance

User-friendly design minimizes downtime, making routine upkeep straightforward and hassle-free.

6.png__PID:a039330a-773c-4576-ba5f-2db6bd098afa

Innovative Design

Versatile features like 2.5D and watermark printing empower creative projects with modern style.

Instant Ink Curing
Speed & Versatility

Engineered for rapid turnaround, UV-LED printing cures ink instantly with UV light. This enables immediate post-processing—laminating, cutting, and more—across a wide variety of substrates without the wait.

90%

Faster

Eco-solvent systems need 27 hrs (2 hr print, 24 hr dry, 1 hr laminate); UCJV finishes in just 3 hrs for rapid turnaround.

50%

Lower Energy Use

Eco-solvent printers consume double the power; UCJV330’s efficient design cuts energy use by 50%.

Instant

Ink Cure

While eco-solvent inks require a 24-hr drying period, UCJV’s UV ink cures instantly, opening options for same day lamination delivery.

90%

Faster

Eco-solvent systems need 27 hrs (2 hr print, 24 hr dry, 1 hr laminate); UCJV finishes in just 3 hrs for rapid turnaround.

50%

Lower Energy Use

Eco-solvent printers consume double the power; UCJV330’s efficient design cuts energy use by 50%.

Instant

Ink Cure

While eco-solvent inks require a 24-hr drying period, UCJV’s UV ink cures instantly, opening options for same day lamination delivery.

Cloud-Based Monitoring
Control from Anywhere

309b8c181a2b631acea177191ba9615cbfbb73e47b875dbe0f5d8c621e53e705.png__PID:26f5d9d3-c768-4597-9f49-e5f45291d3ab

Real-Time Printer Insights

PICT is a cloud-based monitoring tool that provides real-time visualization of your printer’s status and performance, accessible from your PC or mobile device. Enhance production management and efficiency with remote insights that keep you in control, wherever you are.

67ca72ece08893849f018f068704d740000132d43317944a173cd5f84fe92cee.jpg__PID:629026f5-d9d3-4768-a597-9f49e5f45291

High-Performance, User-Friendly RIP

Experience next-level productivity with Mimaki's newly developed RasterLink7. Designed for ease of use and powerful performance, it improves special effects reproducibility, shortens PDF processing by 25% versus RL6Plus, and supports variable printing—all through an intuitive, integrated interface.

8dc267cbe0e5c8ad2d3dfcb9e24880a4b0338fa94293f52d4123aaad87aaeea0.png__PID:e48a3bdd-6290-46f5-99d3-c76865979f49

Boost Productivity Remotely

Mimaki Remote Access (MRA) empowers you to monitor and control your Mimaki printers and plotters from any location. Effortlessly check operating status, ink levels, and more via your smartphone or PC. Enjoy real-time panel operations and streamlined workflows that boost productivity and eliminate the need for site visits.

Creative Clear Ink
for Profitable Applications

Feel the Texture.
Elevate Your Art.

Experience the innovation of 2.5D printing with Mimaki’s first roll-to-roll printer that supports emboss printing. Layered UV ink creates textures reminiscent of oil paintings and wood grains for stunning, tactile output.

Screenshot 2025-04-01 092903.PNG__PID:6c3b69d5-2c12-4164-869b-8b4c9f3c42f9
Screenshot 2025-04-01 092941.PNG__PID:d52c1221-6406-4b8b-8c9f-3c42f9a25a60

Reveal Hidden Details

Our watermark print feature unveils an intricate skeleton image when backlit, creating an eye-catching silhouette that adds a unique twist to your designs.

Luxurious Finishes

Elevate your designs with clear ink that offers versatile finish options. Choose glossy for vibrant luster or matte for a refined, textured effect that enhances every detail.

Screenshot 2025-04-01 1401455.PNG__PID:f25ec283-2fbb-488a-b99b-00d73f060d53
Screenshot 2025-04-01 140458.PNG__PID:449f403a-69a4-4624-9e15-5318d413e585

Artista UV Textures

Unlock creative potential with 129 built-in texture patterns in RasterLink7. Enhance designs or add a luxurious frosted privacy screen to windows using versatile clear ink.

XY Slitter

Inline X & Y-directional cutting is possible. The system reads the dedicated registration marks and automatically cuts the sheets, dramatically reducing labor and optimizing all post-processing.

Media changer

Three-roll media can be set. Anyone can easily, safely and efficiently switch between media simply by turning the handle.

Anti-static sheet

Prevents media from sticking, deflection of the media on the post heater, and other media transportation malfunctions caused by static electricity.

Made for Busy Businesses

48a5e54053caa27803227d1cc742f4a71f435f4f62f500f4bbbb8b4c8ebea245.png__PID:d42c0614-40b8-4f69-959b-1248695a2f9d

High-Speed Production

High-speed mode for practical use
| 4 colors
  28.0sqm/h (301.4sqft/h)

|4-color + SP/6-color + SP
  18.0sqm/h (193.8sqft/h)

High productivity supports customer operations

Seamless Print & Cut

The UCJV330 leverages UV-curable inks for instant drying, allowing smooth print & cut operations that unlock endless creative possibilities—from store decorations to labels. Efficiency features like ID cut and zero-margin crop marks help automate cutting while minimizing media waste.

2f53effffc7761fcabb7f45d92df08ea0e48e55a75adc0413c5bc1491ab312fd.png__PID:2c061440-b8bf-4955-9b12-48695a2f9d18
UCJV330-uai-1120x630.jpg__PID:0353ca19-5449-4a75-92fe-bdcaa51fcf5e

Included RasterLink 7 RIP Software

Newly developed RasterLink7 is equipped with more useful and advanced functions! With increased RIP processing speed, usability, and productivity, it supports Variable printing.

white.png__PID:c15f98e6-fa82-4aa8-b1d4-13a08e9d8e90

Improves reproducibility of special effects (such as transparency) of PDF data

white.png__PID:c15f98e6-fa82-4aa8-b1d4-13a08e9d8e90

Swift RIP processing of PDF data for increased productivity

white.png__PID:c15f98e6-fa82-4aa8-b1d4-13a08e9d8e90

Prints out the variable data by Variable print function

white.png__PID:c15f98e6-fa82-4aa8-b1d4-13a08e9d8e90

Displays frequently used setting and pop-up windows

Take Control Anywhere with Mimaki Remote Access

Take charge of your entire production environment with Mimaki Remote Access. This innovative tool provides a comprehensive dashboard that delivers real-time performance metrics and instant alerts, allowing you to adjust settings on the fly from any PC or smartphone.
 Whether you're monitoring ink levels, temperature, or device status, you can quickly respond to any deviations and ensure smooth operation across multiple sites. Centralized control helps optimize workflows, reduce downtime, and ultimately enhance productivity throughout your print operations.

Screenshot 2025-04-01 150226.png__PID:ea98fa04-f8e6-4175-be18-bda5e4881dbf
greenguard__PID:b0f4cf48-bcb0-4685-a077-b5afa92e5529

GREENGUARD Gold Certified

Mimaki’s UCJV330 is designed with both operators and the environment in mind. Its innovative UV-LED curing technology drastically reduces energy consumption, using only about half the power of typical eco-solvent printers and one-third that of conventional latex printers. The environmentally friendly UV inks generate nearly zero VOCs without requiring short-wavelength UV light, which minimizes ozone generation. With GREENGUARD Gold certification—meeting the world's strictest chemical emissions standards—this printer is safe for schools, hospitals, and other sensitive environments, ensuring responsible printing that helps reduce indoor air pollution.
