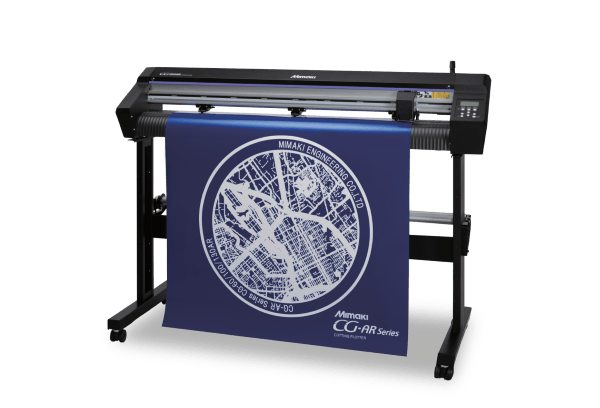

Mimaki CG-AR Series Cutting Plotters

Professional Precision Cutting, Simplified

Whether you're a creative hobbyist or a production-focused business, the Mimaki CG-AR Series cutting plotters deliver fast, precise, and repeatable cuts across a wide variety of media. Ideal for producing t-shirt transfers, decals, window signage, cardstock crafts, packaging, and more.

These versatile cutters are compatible with both Windows® and macOS® systems, making them a perfect fit for any workspace. Available in 29” and 61” cutting widths, they adapt seamlessly to your project scale.

Key Features

• Advanced Contour Cutting: Continuous crop mark detection ensures accurate cutting around printed graphics.

• Half-Cut Function: Enables easy handling of stickers and decals by leaving backing sheets intact.

• Selectable Job Speeds: Choose from three cutting speeds to match your workflow.

• Flexible Media Loading: Load media from either the front or back for greater convenience.

• Remote Monitoring: Receive alerts and updates via the built-in remote event notification system.

• Perfect Match for Mimaki Roll-to-Roll Printers: Seamless integration for a complete print-and-cut solution.

Included Software

• FineCut9 & SimplePop – Design and production made simple.

• Sure Cuts A Lot – Included with the CG60AR as part of the Craft & Packaging Bundle.

Mimaki Core Technologies

• Continuous Mark Detect – Enhanced alignment for long-run jobs

• Half Cut & Over Cut – Clean, professional results every time

• Zero Margin Mark & ID Cut – Efficient media use and automatic job recognition

Specifications

Model Options:

• CG-60AR: Max media width – 29.1″ (740 mm), Cutting width – 23.9″ (600 mm)

• CG-130AR: Max media width – 61″ (1550 mm), Cutting width – 53.9″ (1370 mm)

Performance:

• Max cutting speed: 28.7 in/s (73 cm/s)

• Max moving speed: 40.5 in/s (103 cm/s)

• Max cut pressure: 550g

• Media thickness: Up to 1mm (results may vary)

Cutting Tools:

• Eccentric blade, small character blade, reflective sheet blade, fluorescent blade, heavy paper cutter, creasing tool, and more

Precision:

• Mechanical resolution: X = 2.5 μm / Y = 5 μm

• Repeatability: ±0.2 mm over 2 meters

Connectivity:

• USB, RS-232C, and Ethernet

• 27MB buffer memory (17MB when sorting)

Power & Environment:

• Power supply: AC 100–240V, 50/60Hz

• Operating temperature: 41–95°F (5–35°C)

• Humidity: 35–75% RH (non-condensing)

Dimensions & Weight:

• CG-60AR: 39.8" × 14.0" × 14.0" (stand: 45.7" H), Weight: 37.5 lbs (59.5 lbs w/ stand)

• CG-130AR: 71.3" × 22.8" × 45.7", Weight: 94.8 lbs
