Name: Mimaki CJV200 Printer Cutter
Brand: Mimaki
SKU: 51120972955922
Price: 8995.00 USD
Availability: OutOfStock

CJV200 HERO 1 2560x500.jpg__PID:ce9e7690-3403-4d80-95d2-20e443c067d6

CJV200 hero mobile 1984x2154.jpg__PID:0d21ff62-1ee9-4895-994d-db2a1146c21a

		CJV200-75	UCJV330-160	CJV200-160
Print head		On-demand piezo head
Print resolution		600dpi, 900dpi, 1200dpi
Print gap		By manual 2 levels (1.5/2.0 mm)
Ink	Type/Color	Eco-solvent ink SS22 (C,M,Y,K,Lc,Lm,Lk,Or) SS21 (C,M,Y,K,Lc,Lm,Lk,Or) 1 BS4 (C,M,Y,K) Only available in specific countries
	Capacity *2	SS22：440ml Ink cartridge / 1L Ink pack SS21: 440ml Ink cartridge / 2L Ink pack BS4: 600ml Ink pack *3 / 2L Ink pack
Ink circulation		Circulation in damper MCTv2
Maximum print width		800mm (31.5")	1,360mm (53.5")	1,610mm(63.4")
Media	Maximum width	810mm (31.9")	1,370mm (53.9")	1,620mm(63.8")
	Thickness	1.0 mm or lower
	Roll diameter	φ180 mm or less
	Roll weight	25 kg (55.1lb) or less [45 kg (99.2 lb) or less with option *4]
	Roll inside diameter	2 inch / 3 inch
Cutting function	Cutting speed	Max. 300 mm/s
	Acceleration	Max. 0.5G
	Cutting pressure	10 - 450 gf
	Cutter response times	10 times/sec
	Repeatability	±0.2 mm (Excluding shrinkage / expansion caused by the film temperature)
Interface		Ethernet 1000 BASE-T (Recommended) / USB2.0 Hi-speed
Certifications		VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, Energy Star, RCM, KC
Power supply		Single-phase (AC 100–120V/200–240V)×2　50/60Hz±1Hz
Power consumption		Max. 1,320 W x 2 or less / Min. 4.5 W or less (Sleep mode)
Operational environment		Temperature: 20–30 °C (68–86 °F) Humidity: 35–65% Rh (Non condensing) Recommended temperature: 20–25 °C (68–77 °F) Dust level: General office level
Dimensions (W x D x H)		1,960mm × 748mm × 1,370mm (77.2"×29.4"×53.9")	2,520mm × 748mm × 1,370mm (99.2"×29.4"×53.9")	2,770mm × 748mm × 1,370mm (109.1"×29.4"×53.9")
Weight		105 kg (231.5 lb)	130 kg (286.6 lb)	140 kg (308.6 lb)

*1 Scheduled to be available in March 2025.
*2 The use of 1L/2L ink packs requires OPT-J0364 MBIS3 (Mimaki Bulk Ink System 3) and OPT-J0576 MBIS BKT OPT (attachment), which are options sold separately.
*3 600 ml ink pack requires eco cartridge (OPT-J0361: ECO CASE 4). Eco cartridges can be used repeatedly by replacing ink packs.
*4 With the OPT-J0502 Level Foot attached, supports media up to 45 kg (99.2 lb).

		CJV200-160B
Print head		On-demand piezo head
Print resolution		600dpi, 900dpi, 1200dpi
Print gap		By manual 2 levels (1.5/2.0 mm)
Ink	Type/Color	Eco-Solvent Ink CS250 (C,M,Y,K)
	Capacity	1L bottle
Weight		105 kg (231.5 lb)
Maximum print width		1,610 mm (63.4")
Media	Maximum width	1,620 mm (63.8")
	Thickness	1.0 mm or lower
	Roll diameter	φ180 mm or less
	Roll weight	25 kg (55.1lb) or less [45 kg (99.2 lb) or less with option *1]
	Roll inside diameter	2 inch / 3 inch
Cutting function	Cutting speed	Max. 300 mm/s
	Acceleration	Max. 0.5G
	Cutting pressure	10 - 450 gf
	Cutter response times	10 times/sec
	Repeatability	±0.2 mm (Excluding shrinkage / expansion caused by the film temperature)
Interface		Ethernet 1000 BASE-T (Recommended) / USB2.0 Hi-speed
Certifications		VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, Energy Star, RCM, KC
Power supply		Single-phase (AC 100–120V/200–240V)×2　50/60Hz±1Hz
Power consumption		Max. 1,320 W x 2 or less / Min. 4.5 W or less (Sleep mode)
Operational environment		Temperature: 20–30 °C (68–86 °F) Humidity: 35–65% Rh (Non condensing) Recommended temperature: 20–25 °C (68–77 °F) Dust level: General office level
Dimensions (W x D x H)		2,770mm × 748mm × 1,403mm (109.1"×29.4"×55.2") *2

*1 With the OPT-J0502 Level Foot attached, supports media up to 45 kg (99.2 lb).
*2 Body dimensions exclude ink bottles.

Some of the samples in this website are artificial renderings.
Specifications, design and dimensions stated in this website may be subject to change without notice (for technical improvements, etc).
The corporate names and merchandise names written on this website are the trademark or registered trademark of the respective corporations.
Inkjet printers print using extremely fine dots, so colors may very slightly vary after replacement of the printing heads. Also note that if using multiple printer units, colors could vary slightly from one unit to other unit due to slight individual differences.

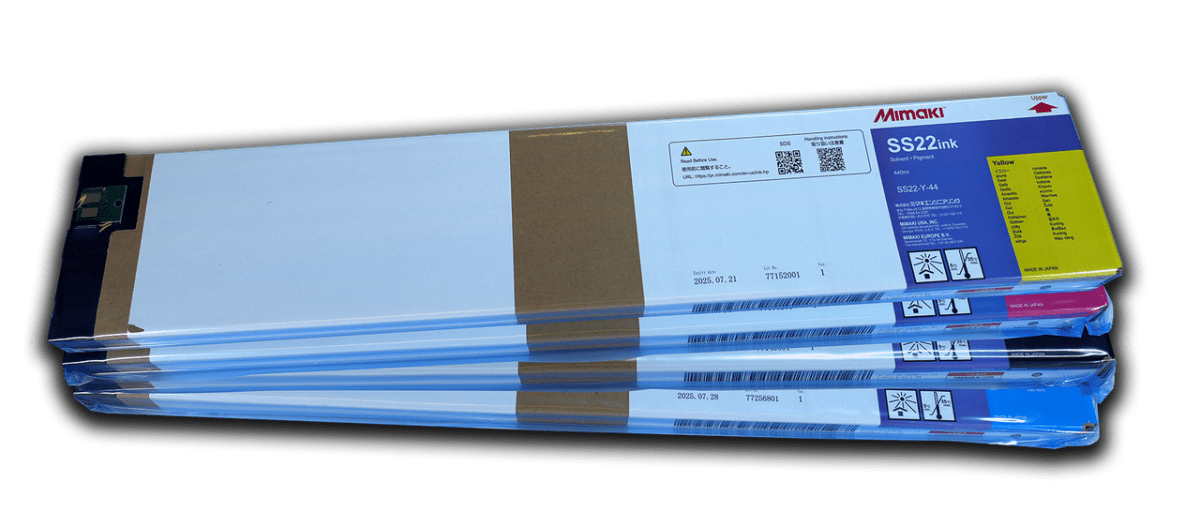

Mimaki SS22 Ink - 440cc

$143.00

SS22 is a next-generation eco-solvent ink designed for safer and more sustainable printing. Unlike traditional inks that contain GBL, which has faced increasing global regulations, SS22 is completely GBL-free, offering a safer work environment for operators.

Originally introduced with the CJV200 Series, SS22 retains the superior weather resistance, quick drying, and reliable performance of the widely trusted SS21 ink. Its compatibility with conventional machines ensures a seamless transition for users upgrading to the CJV200. Additionally, SS22 is available in an eco-friendly paper cartridge, significantly reducing plastic waste and supporting sustainable printing practices.

View Details

Mimaki Maintenance Liquid 16 200ml bottle

$35.00

Mimaki Maintenance Liquid 16 – 200ml Bottle

Mimaki Maintenance Liquid 16 is a specialized cleaning solution designed to keep your printer in top condition. It effectively removes ink buildup, prevents clogging, and ensures smooth operation of critical components such as printheads, wipers, and caps. Regular use helps extend the lifespan of your printer and maintain consistent print quality.

Key Features:

Removes dried ink and prevents clogging
Ideal for cleaning printheads, wipers, and capping stations
Essential for routine printer maintenance
Compatible with select Mimaki printers

View Details

Download Your CJV200 Series Brochure

Download your digital brochure to explore in-depth features,
benefits, applications, and technical specifications of the CJV200 Series.

Download Brochure

Download Your CJV200 Series Specsheet

Get your digital guide to all the features, applications,
benefits, and specifications of the CJV200 Series.

Download Specsheet

Introducing the CJV200

Experience flagship-level image quality and effortless operation with our state of the art eco-solvent print & cut technology.

Empower Your Workflow
with Unmatched Performance

diamond_red_ico.png__PID:1018e435-ffad-4f84-bc1c-7c529180c05b

Precision & Productivity

Achieve consistent, high-quality prints with streamlined performance for efficient workflows.

quality_red_ico.png__PID:e435ffad-0f84-4c1c-bc52-9180c05b7b3f

Exceptional Quality

Experience vibrant, sharp images that consistently meet professional standards.

holographic-sticker.png__PID:ffad0f84-3c1c-4c52-9180-c05b7b3f481d

Eco-Friendly Performance

Print safely and sustainably with GBL-free inks and environmentally conscious technology.

costperformance_red_ico.png__PID:ad0f843c-1c7c-4291-80c0-5b7b3f481d3a

Cost Efficiency

Benefit from lower operating costs and eco-friendly ink solutions that save money.

Versatility

Adapt to various applications and media sizes, making every print project possible.

high-productivity_red_ico.png__PID:18e435ff-ad0f-443c-9c7c-529180c05b7b

User-Friendly Operation

Enjoy an intuitive design and simple maintenance for smooth, hassle-free use.

CJV200 Series

Large Format Eco-Solvent Printer/Cutter

Experience professional-grade printing with the Mimaki CJV200 Series – an eco-solvent print & cut solution designed for everyone. Delivering exceptional image quality and rapid production, it empowers users to create stunning, vibrant prints quickly and effortlessly.

check.png__PID:3e47f255-9e98-46b2-b12e-a7b19ff00b4e

The CJV200 delivers exceptional print quality with vibrant, precise images.

It achieves production speeds up to 17.0 m²/h for rapid output.

User-friendly design and simple maintenance ideal for any experience level.

UCJV330-uai-1120x630 play.JPG__PID:8888c13f-71e1-47bc-bd94-c045418b8761

Limitless Applications

die-cut-labels.jpg__PID:4ec85986-9c77-4693-898c-f0b4c44cf720

CJV200_Website_CJV200_Application-1.png__PID:f3bc4917-f560-42d0-ac26-6374e1830541

48A0499.jpg__PID:ff8666f1-32c0-483c-9fbb-8e035a374ea2

4b1a5920015ed623f2a04d84bf57560da980848d19025d19c2fce6bcc7dd1da2.jpg__PID:09e9ff86-66f1-42c0-983c-5fbb8e035a37

2c3435e5b15e590f724d11bc11244dbde7dcc1d5c9de684cca7144693d6efb2c.jpg__PID:3109e9ff-8666-4132-80d8-3c5fbb8e035a

Performance You Can Measure

Experience a printing solution that simplifies your workflow and enhances productivity. The Mimaki CJV200 Series is designed to minimize downtime with an innovative single print head for easy maintenance, ensuring you produce high-quality prints swiftly. Enjoy safer, eco-friendly operation with GBL-free inks while benefiting from streamlined production cycles that reduce operating costs and help you consistently meet tight deadlines.

90%

Faster

Eco-solvent systems need 27 hrs (2 hr print, 24 hr dry, 1 hr laminate); UCJV finishes in just 3 hrs for rapid turnaround.

50%

Lower Energy Use

Eco-solvent printers consume double the power; UCJV330’s efficient design cuts energy use by 50%.

Instant

Ink Cure

While eco-solvent inks require a 24-hr drying period, UCJV’s UV ink cures instantly, opening options for same day lamination delivery.

90%

More Efficiency

Achieve speeds up to 17.0 m²/h, delivering up to 90% higher output compared to conventional systems.

100%

GBL-Free Ink

Utilizes SS22 eco-solvent ink that's completely free of GBL for enhanced safety and environmental care.

40%

Less Maintenance

The single print head design reduces cleaning and adjustment time by up to 40%, boosting uptime.

Eco-Solvent Excellence
Simplified for High Productivity

The Mimaki CJV200 Series combines exceptional eco-solvent print & cut technology with stunning image quality and rapid production speeds up to 17.0 m²/h. Its streamlined, single print head design makes maintenance simple, while advanced GBL-free inks in eco-friendly paper cartridges ensure safety and sustainability. Ideal for producing labels, posters, signage, and more, the CJV200 Series delivers professional results with ease—empowering operators of every skill level to achieve impressive, cost-effective outputs.

CJV200 Series Line-Up

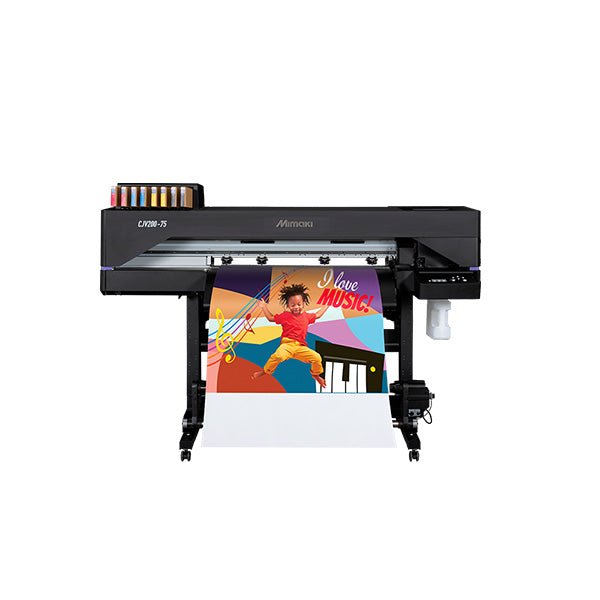

CJV200-75

Designed for simple stickers and labels, the CJV200-75 offers a compact solution with a maximum print/cut width of 800 mm (31.5") and a media width of 810 mm (31.9"). It’s perfect for efficiently producing smaller format projects with ease.

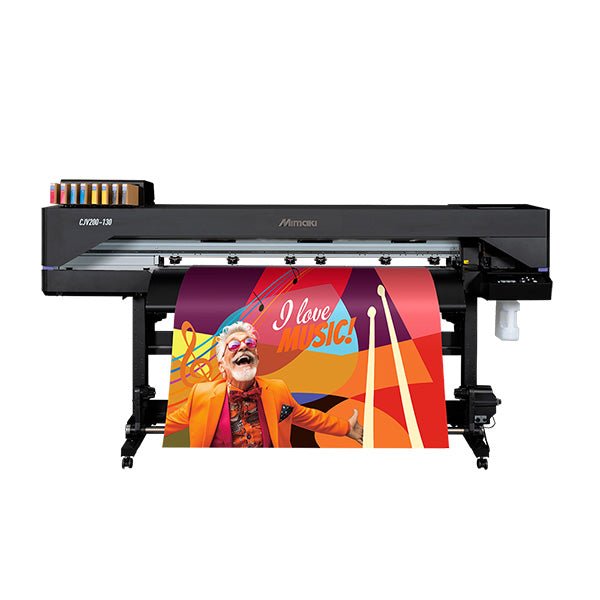

CJV200-130

Ideal for versatile signage and point-of-sale marketing materials, the CJV200-130 features a maximum print/cut width of 1,361 mm (53.6") and a media width of 1,371 mm (54.0"). This model allows you to create impactful promotional displays with consistent quality.

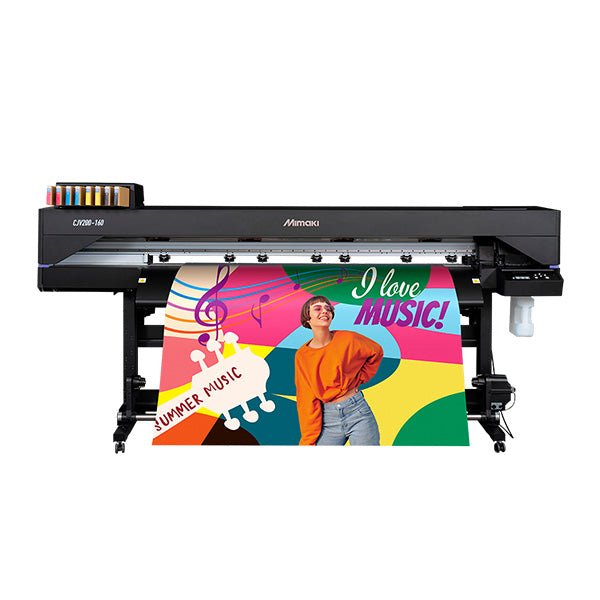

CJV200-160

Engineered for cost-effective production of large, high-quality signage and vehicle wrapping films, the CJV200-160 delivers a maximum print/cut width of 1,610 mm (63.4") and a media width of 1,620 mm (63.8"). It’s the perfect choice for expansive projects demanding reliable performance.

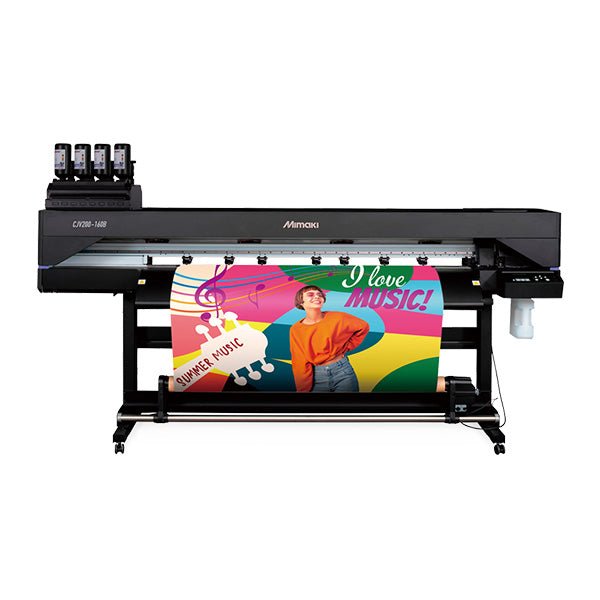

CJV200-160B

The CJV200-160B mirrors the robust capabilities of the CJV200-160, offering the same maximum print/cut width of 1,610 mm (63.4") and media width of 1,620 mm (63.8"). It’s designed for cost-effective, high-quality production of large signage and wraps, ensuring consistent results across every project.

Fast, Reliable, Beautiful

Reliable Productivity

Using a dual 4-color setup, the CJV200 delivers impressive productivity without compromising quality. In high-speed mode, this configuration reaches up to 236.8 sqft/h—nearly double the output of an 8-color setup. This means faster turnaround times for high-volume jobs, reduced print cycle times, and reliable, consistent results that help streamline your workflow and boost overall efficiency.

Consistent Performance

The CJV200 is equipped with a single print head of "330 Engine" in Mimaki's flagship printer. The technology of precise control of a minimum 3pl ink drop and the print head that delivers high-density prints, even at high speeds, resulting in overwhelmingly beautiful printing.

Intuitive. Fast. Innovative.

Intuitive Operation

The user-friendly control panel comes with auto-alignment, feed compensation, and precise drop positioning. These smart features ensure that every print is perfectly registered and consistent, simplifying adjustments and boosting workflow efficiency for daily production demands.

Screenshot 2025-04-02 132048.PNG__PID:bedcc38e-7d5a-4480-8b48-ce3c36c9e3e4

Rapid Production

Experience high-speed output with dual 4-color printing that delivers up to 17 m²/h in standard mode and an impressive 22 m²/h in high-speed mode. This performance enables you to tackle large sticker runs and high-volume jobs quickly, without sacrificing print quality or consistency.

Screenshot 2025-04-02 131845.PNG__PID:eea3862e-cd07-47d1-8267-59df61c1aa84

Innovative Design

The new body design features a large, easy-opening maintenance panel that provides quick access to internal components. This user-centric design minimizes downtime by simplifying routine cleaning and adjustments, ensuring your printer remains at peak performance with minimal effort.

Cloud-Based Monitoring
Control from Anywhere

309b8c181a2b631acea177191ba9615cbfbb73e47b875dbe0f5d8c621e53e705.png__PID:26f5d9d3-c768-4597-9f49-e5f45291d3ab

Real-Time Printer Insights

PICT is a cloud-based monitoring tool that provides real-time visualization of your printer’s status and performance, accessible from your PC or mobile device. Enhance production management and efficiency with remote insights that keep you in control, wherever you are.

67ca72ece08893849f018f068704d740000132d43317944a173cd5f84fe92cee.jpg__PID:629026f5-d9d3-4768-a597-9f49e5f45291

High-Performance, User-Friendly RIP

Experience next-level productivity with Mimaki's newly developed RasterLink7. Designed for ease of use and powerful performance, it improves special effects reproducibility, shortens PDF processing by 25% versus RL6Plus, and supports variable printing—all through an intuitive, integrated interface.

8dc267cbe0e5c8ad2d3dfcb9e24880a4b0338fa94293f52d4123aaad87aaeea0.png__PID:e48a3bdd-6290-46f5-99d3-c76865979f49

Boost Productivity Remotely

Mimaki Remote Access (MRA) empowers you to monitor and control your Mimaki printers and plotters from any location. Effortlessly check operating status, ink levels, and more via your smartphone or PC. Enjoy real-time panel operations and streamlined workflows that boost productivity and eliminate the need for site visits.

Included RasterLink 7 RIP Software

Newly developed RasterLink7 is equipped with more useful and advanced functions! With increased RIP processing speed, usability, and productivity, it supports Variable printing.

white.png__PID:c15f98e6-fa82-4aa8-b1d4-13a08e9d8e90

Improves reproducibility of special effects (such as transparency) of PDF data

Swift RIP processing of PDF data for increased productivity

Prints out the variable data by Variable print function

Displays frequently used setting and pop-up windows

Take Control Anywhere with Mimaki Remote Access

Take charge of your entire production environment with Mimaki Remote Access. This innovative tool provides a comprehensive dashboard that delivers real-time performance metrics and instant alerts, allowing you to adjust settings on the fly from any PC or smartphone.
Whether you're monitoring ink levels, temperature, or device status, you can quickly respond to any deviations and ensure smooth operation across multiple sites. Centralized control helps optimize workflows, reduce downtime, and ultimately enhance productivity throughout your print operations.

S22 ink eco friendly.png__PID:17f7ab1b-3362-4e10-b183-74ac6fc0c518

Eco-Safe Inks

Our new SS22 ink is completely GBL-free, ensuring a safer working environment while meeting stringent regulatory standards. It inherits the proven weather resistance and dryness of the acclaimed SS21 ink, delivering high-performance, reliable results. Packaged in a paper cartridge to significantly reduce plastic waste, SS22 offers a sustainable, eco-friendly printing solution that gives you confidence and environmental responsibility in one package.

Mimaki CJV200 Printer Cutter
