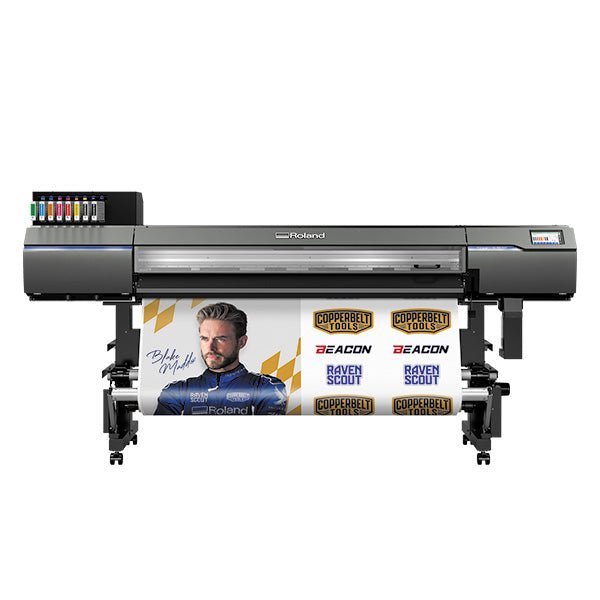

Roland TrueVIS XG-640 64" Printer Cutter

by Roland DGA
SKU ROXG-640
$26,995.00 - $26,995.00
$26,995.00
$26,995.00 - $26,995.00
$26,995.00
The New

TrueVIS XG-640

Versatility at
Full Velocity

  XG-640
Printing method  Piezo ink-jet method
Media Width 13.2 to 64 in.(335 to 1,625 mm)
 Thickness Max. 39.3 mil (1.0 mm) with liner, for printingMax. 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner, for cutting
 Roll outer diameter 9.8 in. (Max. 250 mm)
 Roll weight Max. 99 lb. (45 kg)
 Core diameter 3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing/cutting width (*1) Max. 62.9 in. (1,600 mm)

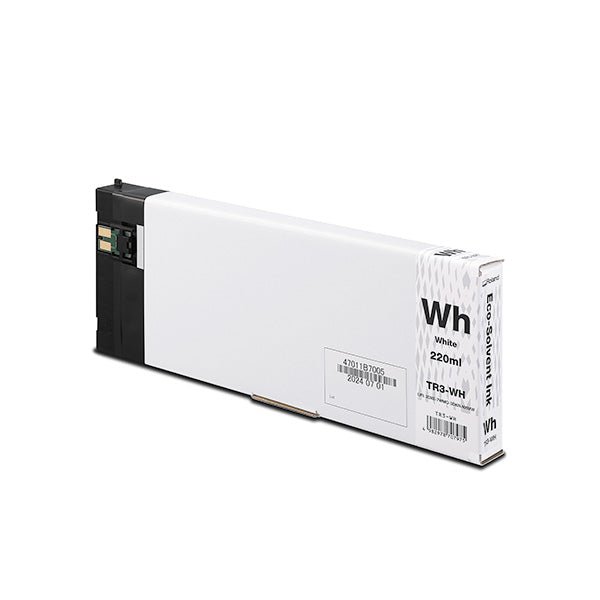

 Ink TypeEco-Solvent Ink (TR3) 500 ml cartridge (only white 220 ml)
 Colors Eight colors (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Orange, and Green)Seven colors (Cyan, Magenta, Yellow, Black, Orange, Green, and White (2 cartridges))Four colors (Cyan, Magenta, Yellow, and Black)Printing resolution (dots per inch)
Printing resolution (dots per inch)  Max. 1,800 dpi
Cutting speed  0.39 to 11.8 in/s(10 to 300 mm/s)
Blade force (*2)  30 to 500 gf
Blade TypeRoland CAMM-1 series blade
Offset0.0 to 59 mil (0.000 to 1.500 mm)
 Software resolution (when cutting) 0.98 mil/step(0.025 mm/step)
Media heating system (*3) Print heater set temperature: 86 to 113 °F (30 to 45 °C)Dryer set temperature: 86 to 131 °F (30 to 55 °C)
 Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function  Automatic sleep feature
Rated input  100-120 / 220-240 Va.c. 50 / 60 Hz 8.9 / 4.5 A
Power consumption During operation Approx. 1,180 W
 Sleep mode Approx. 50 W
Acoustic noise level  During operation 66 dB (A) or less
During standby 56 dB (A) or less
Dimensions (Width x Depth x Height) 113.7 in. x 29.5 in. x 55.8 in.(2,886 mm × 748 mm × 1,415 mm)
Weight 433 lb. (196 kg)
Environment During operation (*4) Temperature: 68 to 89.6 °F (20 to 32 °C),Humidity: 35 to 80 % RH (no condensation)
Not operating Temperature : 41 to 104 °F (5 to 40 °C),Humidity：20 to 80 % RH (no condensation)
Included items Dedicated stand, power cord, media take-up unit, media holders, replacement blade for separating knife, cleaning liquid bottle for maintenance, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect), etc.
Roland TrueVIS TR3 Ink - McLogan Supply
Roland TrueVIS TR3 Ink - McLogan Supply
Roland TrueVIS TR3 Ink - McLogan Supply
Roland TrueVIS TR3 Ink - McLogan Supply
Roland TrueVIS TR3 Ink - McLogan Supply
Roland TrueVIS TR3 Ink - McLogan Supply
Roland TrueVIS TR3 Ink - McLogan Supply
Roland TrueVIS TR3 Ink - McLogan Supply
Roland TrueVIS TR3 Ink - McLogan Supply
Roland TrueVIS TR3 Ink - McLogan Supply
Roland TrueVIS TR3 Ink - McLogan Supply

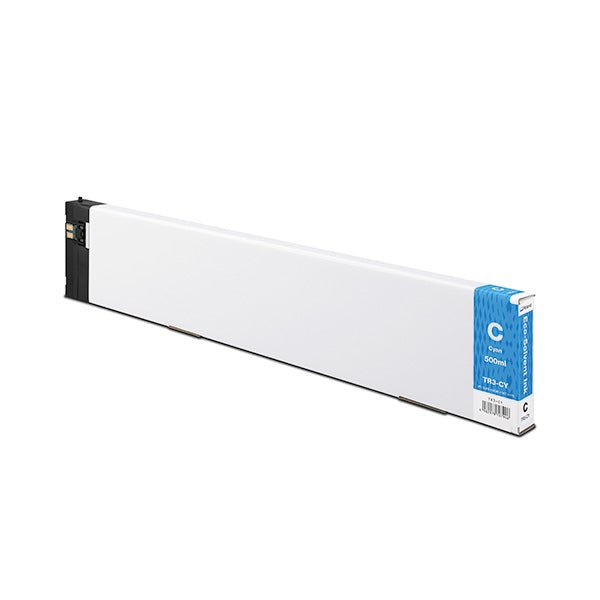

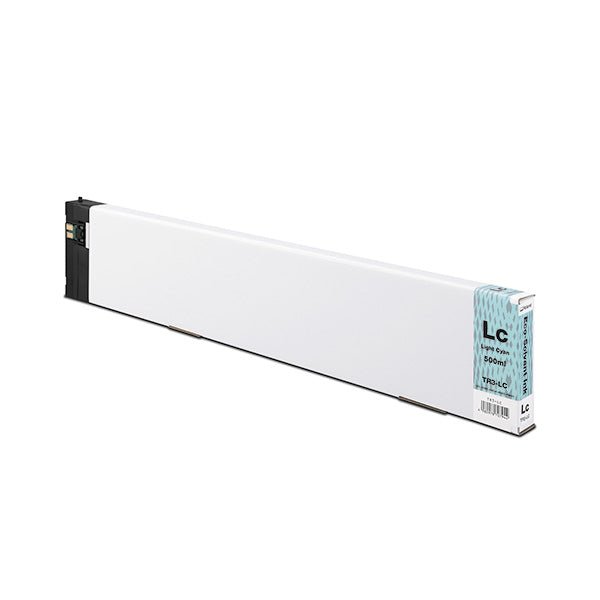

Roland TrueVIS TR3 Ink

$142.99

Elevate your print capabilities with Roland’s latest GBL-free eco-solvent formulation—designed for unparalleled color, productivity, and environmental safety.

Product Overview

Roland TrueVIS TR3 Ink is the next generation of eco-solvent inks, engineered for ultra-vibrant color, faster white output, and long-lasting durability. Packaged in 500 ml pouches that snap into reusable cartridges, TR3 inks minimize waste and downtime while delivering professional-grade results on TrueVIS XG and VG series printer/cutters.

Key Features

  • Ultra-Vibrant, Expanded Gamut:
    Includes Orange and Green alongside CMYK, Light Cyan, and Light Magenta for richer colors and spot-color precision.

  • 3× Faster White Output & 1.3× Denser Coverage:
    White TR3 ink dramatically boosts productivity and opacity for window graphics and base coats compared to TR2 inks.

  • Up to 3-Year Outdoor Durability:
    Rugged scratch resistance and fade resistance without lamination ensure longevity in outdoor applications.

  • Fast Drying & Clean Operation:
    500 ml eco-solvent pouches slide into a hidden ink bay for spill-free loading and minimal waste.

  • Eco-Friendly & Safe Indoor Use:
    GREENGUARD Gold-certified for virtually odorless operation—no special ventilation required.

Technical Specifications

Specification Details

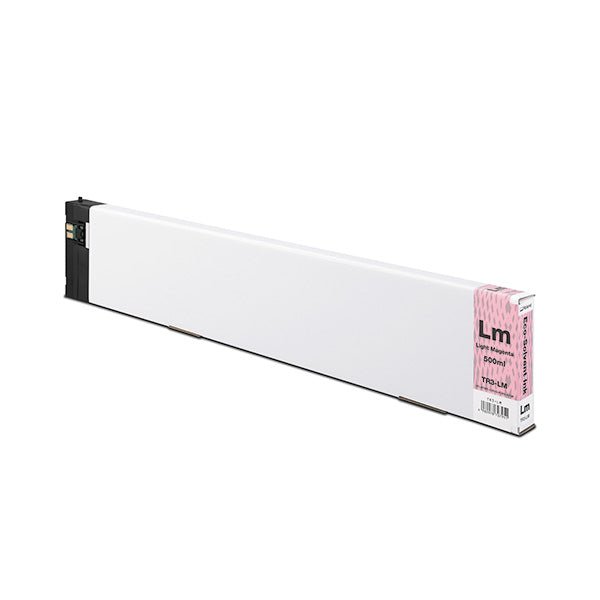

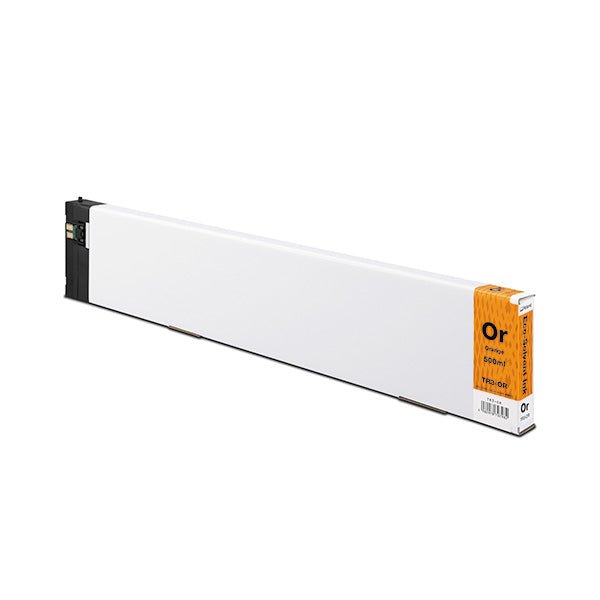

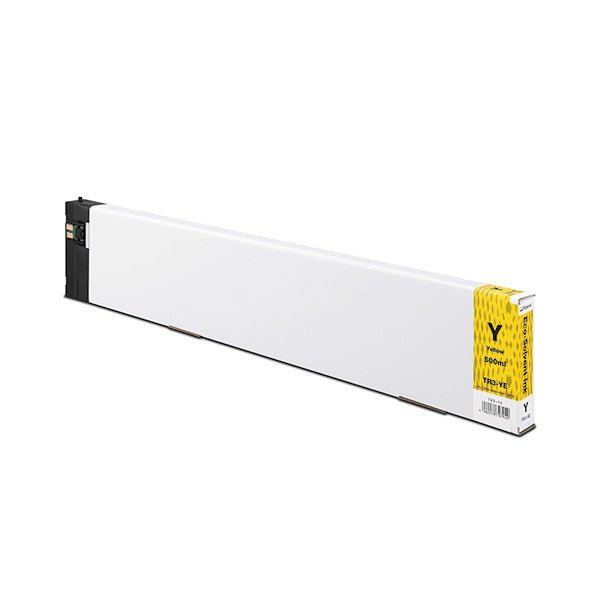

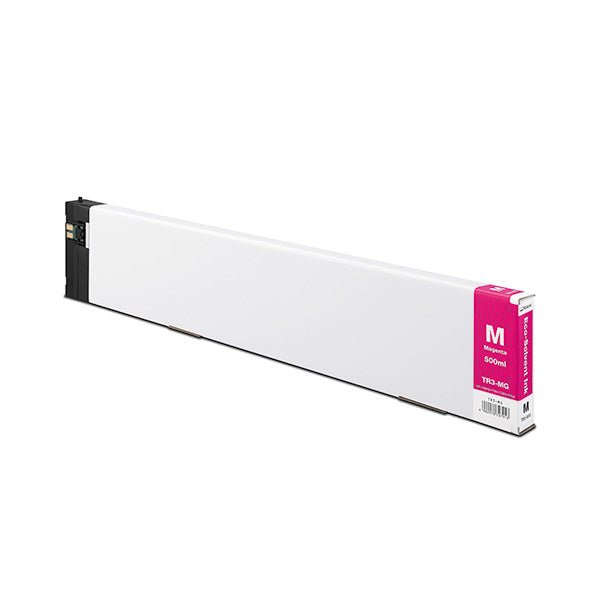

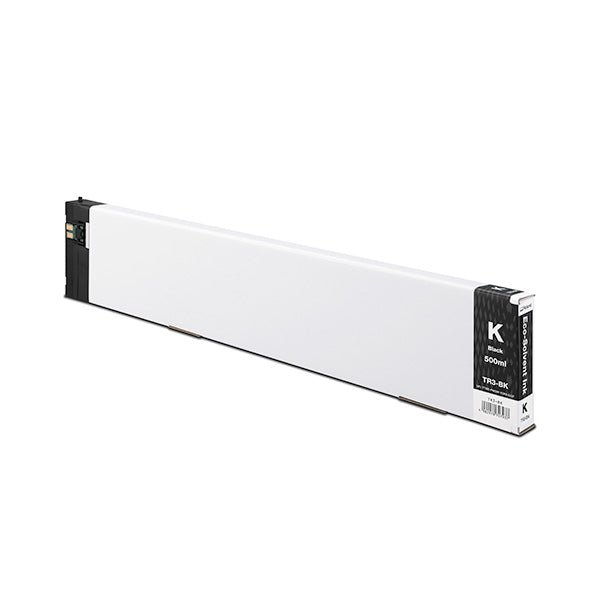

Packaging 500 ml eco-solvent pouch
Ink Type GBL-free eco-solvent

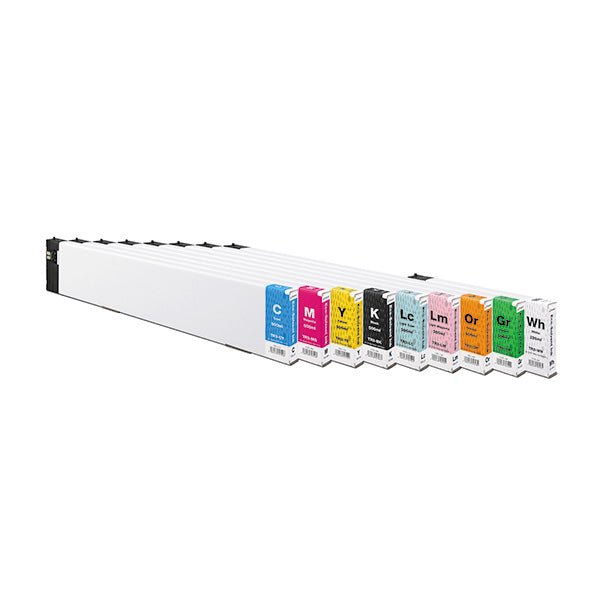

Available Colors CMYK, Light Cyan (Lc), Light Magenta (Lm), Orange (Or), Green (Gr), White
Compatible Models TrueVIS XG-640, XG-540, XG-420, XG-300; VG3-640, VG3-540
Outdoor Durability Up to 3 years (no lamination)
Certifications GREENGUARD Gold UL 2818; REACH & RoHS compliant
Operating Conditions 59–95 °F (15–35 °C); 20–80 % RH (non-condensing)



Workflow & Usage

  1. Simple Installation:
    Insert the 500 ml pouch into the reusable cartridge and slide into the hidden ink bay for quick, clean changes.

  2. Automatic Ink Recognition:
    RFID chip verifies genuine Roland TR3 ink for consistent, worry-free printing.

  3. Low Maintenance:
    Optimized formulation reduces nozzle-cleaning cycles and maximizes uptime.

Certifications & Compliance

  • GREENGUARD Gold Certified:
    Ensures safe, low-emission printing in sensitive environments (schools, offices, retail).

  • REACH & RoHS Compliant:
    Meets major international standards for chemical safety and environmental responsibility.

Why Choose Roland TrueVIS TR3 Ink?

Investing in TR3 inks enhances your shop’s productivity, color accuracy, and profitability—many users report ROI in under six months thanks to faster white prints, broader gamut options, and lower total running costs. Backed by Roland’s proven support network and McLogan Supply’s expert service, TrueVIS TR3 inks empower you to tackle the most demanding applications with confidence.

View Details
Roland Clear Static Cling - McLogan Supply
Roland Clear Static Cling - McLogan Supply
Roland Clear Static Cling - McLogan Supply
Roland Clear Static Cling - McLogan Supply

Roland Clear Static Cling

$56.99

This 7 mil clear static cling is specifically formulated for eco-solvent ink printing. ESM-CSC is a self-clinging clear film which requires no adhesive, applies quickly to glass and most smooth polished surfaces and is easily removed. Compatible with Eco-Sol MAX inks, the product is an excellent alternative to adhesive-backed and other less capable static cling products. Compatible with Roland DG SOLJET, VersaArt, VersaCAMM, VersaStudio and VersaUV printers.

Specifications

Total Caliper: 7 mil
Basis Weight: N/A
Whiteness: Clear
Brightness: N/A
Opacity: N/A
Gloss Level: Acabado brillante
Inkset: Eco solvent (Eco-Sol MAX, Eco-Sol MAX 2, EJ, TrueVIS), ECO-UV
Adhesive: None adhesive, static clear vinyl
Backing: 10 pt. cast coated board

Applications

  • POP Displays
  • Tradeshow Graphics

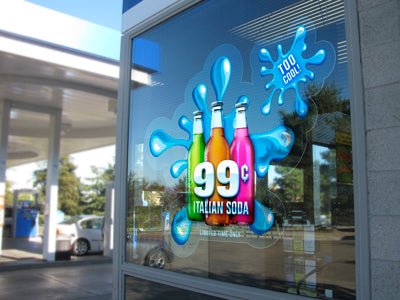

  • Window Graphics

Available Sizes

54"

30"

20"

Storage and Usage

Static cling material should be handled with care before and after printing to prevent surface contamination that may spoil the print. The material should be processed in an environment of 65°-85° F (18°-30°C) and 50-75% relative humidity (non-condensing) that is clean and relatively dust-free. Also, some media are affixed strongly to the core and care should be taken to avoid machine issues due to the non-release of media at the end of the roll. Store this product in its original packaging in a cool dry area until ready for processing. If storage conditions are outside the recommended operating ranges, allow the paper to acclimate in the specified range for at least 24-48 hours before use.

These graphics can be installed by experienced and inexperienced installers, shop and retail store employees. This material is dimentionally stable, water-resistant, and highly scratch resistant. It does not require lamination. Care should be taken to allow this product to fully cure before packaging for delivery or preparing for installation.

View Details
XG-640 datasheet

Download Your XG-640 Datasheet

Download your digital brochure to explore in-depth features,benefits, applications, and technical specifications of the XG-640.

Download Datasheet

Introducing the XG-640

One Machine. Every Job. Full Speed.

The XG-640 delivers flawless printing and cutting across every material, while keeping production and profits running at full throttle.

TrueVIS XG-640

Large-Format Eco-Solvent Printer/Cutter

An Investment in Profitability

Make enough profit to pay for the XG in-full in just months!

vehiclewrap__PID:3ca3600b-71b7-4990-a9a6-6c46f39d7e7b

Full Vehicle Wrap

$3,200

Profit per Job

vehiclewrap__PID:3ca3600b-71b7-4990-a9a6-6c46f39d7e7b

Full Vehicle Wrap

$3,200

Profit per Job

vehiclewrap__PID:3ca3600b-71b7-4990-a9a6-6c46f39d7e7b

Full Vehicle Wrap

$3,200

Profit per Job

The next-generation XG-640 is Roland DG’s fastest printer/cutter ever—built for shops that need to keep jobs moving and revenue growing. Whether you’re producing vehicle wraps, decals, signs or display graphics, the XG delivers a whole new level of productivity and versatility that turns printing into profits.

Roland DG’s most productive integrated printer/cutter to date – nearly twice as fast as the VG3-640.

Advanced dual staggered printheads allow for top print speeds of up to 819 sqft/hr.

Exceptional vibrancy with new TR3 eco-solvent inks, available in dual CMYK or expanded gamut 8-color configurations including Orange, Green, and White options.

Request a dealer

Pushing the Limits of Performance

Artboard 2.png__PID:182513bd-f486-4852-9963-8bbb4fba12c9

UNMATCHED PRODUCTIVITY & PRECISION

Two larger staggered printheads eject finer ink droplets at higher densities for high-resolution output with fewer passes.

Artboard 2 copy 5.png__PID:86031825-13bd-4486-a852-99638bbb4fba

PRINT & CUT
PRECISION

Industry-leading technology with automated pinch rollers for seamless workflow and maximum productivity.

Artboard 2 copy 4.png__PID:30860318-2513-4df4-8628-5299638bbb4f

TRUEVIS QUALITY
PRINTS

Unmatched vibrancy thanks to newly designed printheads and True Rich Color print settings.

Artboard 2 copy 3.png__PID:c3308603-1825-43bd-b486-285299638bbb

ULTRA-WIDE COLOR
GAMUT

New TR3 inks include Orange and Green for unparalleled color accuracy and vibrancy.

Artboard 2 copy 2.png__PID:bbc33086-0318-4513-bdf4-86285299638b

VERSATILE
APPLICATIONS

Perfect for decals, vehicle wraps, signage, banners, floor and window graphics, backlit displays, wallpaper, posters, and more.

Artboard 2 copy.png__PID:03182513-bdf4-4628-9299-638bbb4fba12

SMART
AUTOMATION

Advanced features like Automatic Media Gap Adjustment, which detects and adjusts media height to avoid head strikes and misprints.

xg-industry-leading-product-mobile.webp__PID:d6136242-94b2-4b2c-9031-03e41b5fcf42

Industry-Leading
Productivity

Engineered for speed and precision, the XG-640 sets a new benchmark in productivity, enabling shops to complete more jobs each day without additional labor. Dual staggered printheads and high-speed data control deliver 15% faster print speeds than competing models — without compromissing image quality.


In Standard mode, the 8-color (CMYKLcLmOrGr) configuration delivers the widest color gamut at speeds of up to 327.2 sqft/hr on vinyl. Let it run uninterrupted all night and wake up to high-quality, customer-ready prints in the morning. Higher throughput, shorter production times, and a return on investment measured in months, not years.

Industry-Leading
Productivity

Engineered for speed and precision, the XG-640 sets a new benchmark in productivity, enabling shops to complete more jobs each day without additional labor. Dual staggered printheads and high-speed data control deliver 15% faster print speeds than competing models — without compromissing image quality.


In Standard mode, the 8-color (CMYKLcLmOrGr) configuration delivers the widest color gamut at speeds of up to 327.2 sqft/hr on vinyl. Let it run uninterrupted all night and wake up to high-quality, customer-ready prints in the morning. Higher throughput, shorter production times, and a return on investment measured in months, not years.

Endless Applications
Infinite Possibilities

The XG-640 lets you take on more jobs than ever before, offering unmatched versatility across a wide range of applications.

stickers__PID:c9768588-0858-4a5e-b5d2-9d0a40a7f9f0
posters__PID:97fafd7b-4495-4781-88e9-dfed98bb6f8d
windows__PID:b0fef1bb-dfa5-4889-9bf4-27246c98fe84
banners__PID:f5563994-db03-4b90-882e-7a1d57d4cb00
car-wraps__PID:28ad8d0a-6cf2-4c79-87cd-86d623856e9d
backlit-graphics__PID:3aac1341-3c55-495f-b204-8f0d1849b0fb
wallpaper__PID:d8d6a34b-90a0-4fff-98ab-7a91610b3af6
signage__PID:368e9941-a937-418e-ae24-c0280314ddc3

Expect Big Things

Roland DG pioneered the world’s first Print & Cut technology, and for over 40 years our advanced Print & Cut solutions have been trusted by users worldwide. The XG-640 continues this legacy, combining cutting-edge innovation and productivity with the reliability professionals expect.

1.png__PID:4ddac18d-e951-463e-8771-c478075b0001

Introducing Our Most Vibrant and Eco-Friendly TrueVIS Inks

A next-generation printer like the XG-640 demands equally impressive inks. New TR3 eco-solvent inks are specially formulated for unrivaled vibrancy and durability. TR3 White ink used with the XG-640 allows for three times greater productivity than TR2 inks used with a VG3 printer/cutter and produces graphic results that are 1.3 times more dense, enhancing window graphics and base coats. Plus, TR3 inks are GBL-free and GREENGUARD Gold certified, for safer, eco-conscious printing. These premium-quality inks are available in a choice of configurations to suit your specific needs – dual CMYK for increased speed, or 8-color (Orange, Green, Light Cyan, Light Magenta, and White) for an expanded gamut and greater color accuracy.

2.png__PID:dbc9bb95-ef1a-4cc4-9c16-cebd7dbd21b5

Features Designed
to Simplify Your Print Operations

color-lcd__PID:04fcfdbf-b4e4-4a80-9315-9a7cf1d4c126

COLOR LCD SCREEN FOR QUICK AND EASY JOB ACCESS

The XG-640’s built-in 7-inch color LCD touchscreen control panel provides quick, intuitive access to important printer functions and information. With the touch of a button, you can get an update on remaining ink levels, printer status, print time, and more.

takeup__PID:f476fd39-6dc3-46c0-8f60-9189e933a049

AUTOMATIC MEDIA TAKE-UP SYSTEM

Loading media is a breeze, thanks to the XG-640’s automatic media take-up system. Simply move the end of the media to the position of the paper tube on the take-up unit using the control panel and secure it to the paper tube with tape.

xg640__PID:d8458cb3-2181-47c5-baaa-8f26f8302b6d

ADD PERFORATIONS FOR QUICK AND EASY SEPARATIONS

The XG-640’s new perforated sheet cut function makes it easy to add perforations for high-volume print jobs. This exclusive Roland DG feature eliminates cutting tools and reduces post-processing work, saving space and minimizing the risk of output damage.

Compare Our High Productivity
Large-format Printers

xg640-printer__PID:ee2346fb-ba09-47c7-a85d-59200e5d8626

XG-640

Large-Format Eco-Solvent
Printer/Cutter

MSRP

$26,995 US*

Ink Configuration

Eight Colors

CMYKLcLmOrGr

Seven Colors

CMYKOrGr and
White (2 cartridges)

Seven Colors

CMYK

Performance Features

High Speed Print & Cut

New Dual Staggered Printheads

Expanded Color Gamut

New TR3 Eco-Solvent Inks

xp640-printer__PID:2e81785b-44df-45f9-ae5e-fff8b8c6457d

XP-640

Large-Format Eco-Solvent
Printer

MSRP

$20,995

Ink Configuration

Four Colors

CMYK

Performance Features

High Speed Print

New Dual Staggered Printheads

Expanded Color Gamut

New TH Eco-Solvent Inks

versaworks__PID:5092cbfc-46ed-44c9-992f-13084b24678d

Included VersaWorks 7 with Compatibility for Mac

The XG-640 comes with newly developed VersaWorks 7 RIP software – Roland DG’s most powerful, intuitive RIP to date – which now supports both Windows and Mac OS operating systems. This software offers a host of useful features for effortless print management right out of the box.

learn more
connect-app__PID:3218b3f8-dd0e-421f-babb-f31828d1bfeb

Roland DG Connect:
Connect to Greater Possibilities

Roland DG Connect now offers a more comprehensive suite of tools designed to maximize value and drive business growth. The enhanced platform provides services and resources that enable you to optimize output, connect with a community of professionals, access support, explore new opportunities, and so much more.

learn more

Produce and Profit

Realize pure profit in months, not years with our most versitile and productive eco-solvent printer to date.

vehiclewrap__PID:2075a055-1c08-466c-857a-074c20f591a2

Vehicle Wrap

Full Body

Est. Print Cost

$300

Retial Value

$2,000 – $3,500

Profit per Job

$3,200

decals__PID:4cb1e4fe-7293-4c73-975b-baec97b23045

Decals

Set of 250

Est. Print Cost

$12

Retial Value

$100 – $300

Profit per Job

$288

windowgraphics__PID:808f8e21-e2ce-4abb-a7bb-6f02e0835add

Window Graphics

(48"x60")

Est. Print Cost

$6

Retial Value

$150 – $250

Profit per Job

$240

posters__PID:278741a9-deaf-4df4-8f3a-cdb5b338192f

Posters

Set of 50

Est. Print Cost

$87

Retial Value

$500 – $1,250

Profit per Job

$1,163

Average ROI: Customers typically recoup their investment in under 12 months when printing 10+ jobs per week.Numbers shown are estimates based on averages only and will vary by each job and use.

2year_limited__PID:c9c3bd76-839f-4382-8cbd-562689813cd0

Roland DG’s Industry-Leading Warranty and Support

Why Roland DG?

The next-generation XG-640 is Roland DG’s fastest printer/cutter ever—built for shops that need to keep jobs moving and revenue growing. Whether you’re producing vehicle wraps, decals, signs or display graphics, the XG delivers a whole new level of productivity and versatility that turns printing into profits.

U.S.-based Support and Training

VersaWorks 7 RIP Software (now available for macOS and Windows) included without subscription

Access to the Roland DG Connect platform for remote diagnostics, uptime tracking, and much more

Why Roland DG?

Customer demand is exploding for quick-turn, on-demand graphics that can be printed, cut, and finished in-house. The XG-640 lets you do more with one device, delivering stunning graphics at a lower cost per job with lest waste and more control over margins.
