VersaSTUDIO BN2-20A 4-Color Printer Cutter

Original price $7,145.00 - Original price $7,145.00
Original price $7,145.00 - Original price $7,145.00
Original price
Current price $7,145.00
$7,145.00 - $7,145.00
Current price $7,145.00
 More payment options
The New

VersaSTUDIBN2 Series

VersaSTUDI
BN2 Series

Professional Print & Cut
Starts Here

Specification.png__PID:dba42a37-7ed7-43e9-8091-0c8a5341b8bf

BN2-20A

BN2-20A

BN2-30

Printer Method

Piezo ink-jet method

Media

Width

5.91 to 20.2 in. (150 to 515 mm)

5.91 to 30 in. (150 to 762 mm)

Printer Method

Printer Method

5.91 to 20.2 in. (150 to 515 mm)

5.91 to 30 in. (150 to 762 mm)

Printer Method

Thickness

Maximum 1.0 mm (39.3 mil) with liner, for printing
Maximum 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting

Printer Method

Roll outer diameter

Maximum 5.9 in. (150 mm)

Maximum 6.49 in. (165 mm)

Printer Method

Roll weight

Maximum 13.2 lb. (6 kg)

Maximum 26.4 lb. (12 kg)

Printer Method

Core diameter

3 in. (76.2 mm) or 2 in. (50.8 mm )

Printing/cutting width

Maximum 18.89 in. (480 mm)

Maximum 28.97 in. (736 mm)

Ink

Type

220-ml cartridge

Printer Method

Colors

Cyan, Magenta, Yellow, Black

Four color (Cyan, Magenta, Yellow, Black) Five color (Cyan, Magenta, Yellow, Black, White)

Printing resolution (dots per inch)

Maximum 1,440 dpi

Cutting speed

0.39 to 5.9 in/s (10 to 150 mm/s)

Blade force  (*2)

30 to 500 gf

Blade

Type

Roland CAMM-1 series blade

Printer Method

Offset

0.000 to 1.500 mm (0.0 to 59 mil)

Software resolution (when cutting)

0.025 mm/step (0.98 mil/step)

Media heating system (*3)

Print heater set temperature:

86 to 95 °F (30 to 35 °C)

86 to 104 °F (30 to 40 °C)

Printer Method

Dryer set temperature:

86 to 100.4 °F (30 to 38 °C)

86 to 113 °F (30 to 45 °C)

Connectivity

Ethernet (100BASE-TX/1000BASE-T, automatic switching)

Power-saving function

Automatic sleep feature

Rated input

100-240 Va.c. 50/60 Hz 2.1 A

100-240 Va.c. 50/60 Hz 2.9 A

Power consumption

During operation

Approx.185 W

Approx.260 W

Printer Method

Sleep mode

Approx.27W

Acoustic noise level

During operation

62 dB (A) or less

65 dB (A) or less

Printer Method

During standby

60 dB (A) or less

63 dB (A) or less

Power consumption

42.1 in. × 24.3 in. × 24.5 in. (1,069 mm × 617 mm × 622 mm)

52.1 in. × 24.3 in. × 24.5 in. (1,323 mm × 617 mm × 622 mm)

Weight

137 lb. (62 kg)

164 lb. (74 kg)

Environment

During operation (*4)

Temperature: 68 to 89.6 °F (20 to 32 °C),
Humidity: 35 to 80 % RH (no condensation)Not operating

Printer Method

During standby

Temperature: 41 to 104 °F (5 to 40 °C)
Humidity: 20 to 80 % RH (no condensation)

Included items

Power cord, media holders, replacement blade for separating knife, User's Manual, Software (FlexiDESIGNER VersaSTUDIO Edition, VersaWorks, Roland DG Connect), etc.

Roland Eco - Sol Max 2 Ink - McLogan Supply
Roland Eco - Sol Max 2 Ink - McLogan Supply

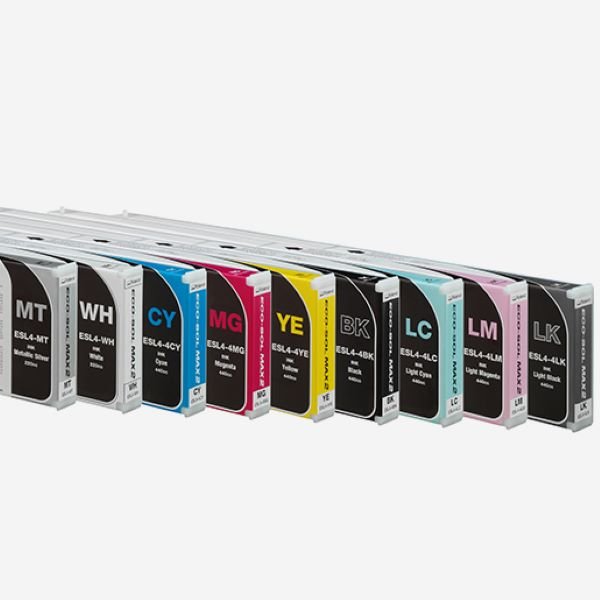

Roland Eco-Sol Max 2 Ink

$107.99

Nine colors formulated for even greater density (CMYK+ Lc+Lm, Light Black, White and Metallic Silver)

  • Brighter, more opaque white for bolder results
  • Denser, more reflective metallic silver for added impact
  • Light black for even smoother gray scale gradations, more natural skin tones and the sharpest photographic images
  • Images beautifully at even higher print speeds
  • Virtually odorless, user friendly and nickel free

Available in 440 and 220 ml cartridges
(White, Metallic Silver and Light Black in 220 ml only)



View Details
Roland HeatSoft Plus HTM3 Heat Transfer Material - McLogan Supply
Roland HeatSoft Plus HTM3 Heat Transfer Material - McLogan Supply
Roland HeatSoft Plus HTM3 Heat Transfer Material - McLogan Supply
Roland HeatSoft Plus HTM3 Heat Transfer Material - McLogan Supply
Roland HeatSoft Plus HTM3 Heat Transfer Material - McLogan Supply
Roland HeatSoft Plus HTM3 Heat Transfer Material - McLogan Supply

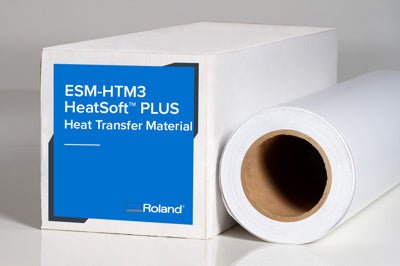

Roland HeatSoft Plus HTM3 Heat Transfer Material

$230.99

Roland HTM3, a premium-quality inkjet printable polyurethane material that combines stunning imaging capabilities with effortless stretching and weeding. This versatile media facilitates seamless graphic transfers onto a variety of materials, including cotton, polyester, poly-blends, spandex/Lycra®, and even leather, ensuring quick and easy customization.

Designed for durability, HTM3 stands out as a reliable choice for producing personalized apparel and accessories. Its exceptional strength is complemented by a soft hand, vibrant color reproduction, and intricate detailing, elevating the overall quality of your creations.

HTM3 is not only visually impressive but also practical, with the capability to withstand up to 50 wash cycles. This resilience ensures that your customized items maintain their quality and vibrancy even after repeated use. With HTM3, experience the perfect blend of premium quality, versatility, and enduring durability for your printing need



View Details
Datasheet snippet.png__PID:35a69fae-5e12-4436-a435-394f43f145e2

Download Your BN2 Series Datasheet

Download your digital brochure to explore in-depth features,benefits, applications, and technical specifications of the BN2 Series.

Download Datasheet

VersaSTUDIO BN2 Series

Desktop Printer/Cutters

NEW BN2-30

(5-Color or 4-color)

BN2-20A

(4-Color)

With the next-generation BN2, Roland DG has taken a great thing and made it even better. These compact powerhouses offer significantly faster print speeds, convenient new features, ease of use, and a space-saving design that allows for placement in a home, office, or shop. The BN2 is everything you need to get started in professional print and cut graphics production.

Professional quality printing and cutting functionality allows for a wide range of applications

Faster print speeds for optimum productivity

Affordably priced to suit the budgets of start-ups, & smaller businesses

Easy to use – even for those with no prior printing experience

Compact size is ideal for print environments with limited space

Feature-filled, intuitive design and output software included

Request a dealer
bn230__PID:a06c8b56-7fcf-47b0-a084-0ca3763dfd6a

NEW BN2-30

Printer/Cutter

Artboard 2.svg__PID:915770e2-c41f-4f08-bb85-46e6a365711a

MAX. MEDIA WIDTH

30"

Artboard 2 copy.svg__PID:3e915770-e2c4-4f6f-887b-8546e6a36571

Ink Configuration

CMYK

CMYK + WHITE

Artboard 2 copy 2.svg__PID:123e9157-70e2-441f-af08-7b8546e6a365

MSRP

$10,995 US

Artboard 2 copy.svg__PID:3e915770-e2c4-4f6f-887b-8546e6a36571

POPULAR APPLICATIONS

Apparel

Decals and Labels

Small Signs and Posters

Art and Photography

Printing on Dark, Clear and

Metallic Media

bn220a_front_graphics__PID:cc05eed7-9ce8-4172-af4c-21d67083873b

BN2-20A

Printer/Cutter

Artboard 2.svg__PID:915770e2-c41f-4f08-bb85-46e6a365711a

MAX. MEDIA WIDTH

20"

Artboard 2 copy.svg__PID:3e915770-e2c4-4f6f-887b-8546e6a36571

Ink Configuration

CMYK

Artboard 2 copy 2.svg__PID:123e9157-70e2-441f-af08-7b8546e6a365

MSRP

$7,145 US

Artboard 2 copy.svg__PID:3e915770-e2c4-4f6f-887b-8546e6a36571

POPULAR APPLICATIONS

Apparel

Decals and Labels

Small Signs and Posters

Art and Photography

Watch how easy it is to create professional print and cut graphics, from design to output

Print and Cut with

One Powerful, Compact Device

With their ability to print vibrant, detailed graphics on vinyl, film, heat transfer material, and other types of media, the BN2 Series offers outstanding versatility in a desktop printer/cutter. This media compatibility, combined with faster print speeds, integrated print/cut functionality, and unsurpassed ease of use, makes these value-packed devices perfect for a wide variety of applications. The BN2 Series makes creating everything from custom T-shirts and accessories to eye-catching signs, decals, and wall décor quick and simple – even for print novices.

tshirt.jpg__PID:201fa788-77c3-4ce0-97fe-9468469a45a5

Heat Transfer Apparel

bag_new.jpg__PID:a78877c3-4ce0-47fe-9468-469a45a5e1bf

Customized Tote Bags

labels (1).jpg__PID:ee201fa7-8877-434c-a017-fe9468469a45

Die-Cut Labels and Decals

banner_new (1).jpg__PID:68ee201f-a788-47c3-8ce0-17fe9468469a

Signs, Displays and Posters

window-graphics (1).jpg__PID:1fa78877-c34c-4017-be94-68469a45a5e1

Window Graphics

decor.jpg__PID:2a66bb8e-1a20-4363-9384-20b67bb95c3a

Art & Wall Decor

Integrated Print and Cut

The BN2 Series incorporate advanced print and cut technology that lets you print and contour cut graphics, even those with complex shapes, in one simple, seamless automated workflow. This integrated print/cut functionality saves you considerable time and effort when creating graphics for a wide range of applications.

1.png__PID:c5c6138c-8c72-45cf-b3f0-7685caa977c5

Professional Quality

BN2 Series devices use the same high-definition printheads and inks found in printers used by professionals in graphic production. Not only do these devices offer excellent color reproduction and photographic quality, they also render small letters and fine lines in great detail. Plus, they support True Rich Color, a printing setting that is highly acclaimed by printing professionals.

2.png__PID:c6138c8c-72e5-4f33-b076-85caa977c5c9

High Productivity

BN2 Series devices print four times faster than previous BN models and feature the same quick, accurate integrated cutting as high-end Roland DG printer/cutters. This increased print speed combined with the ability to efficiently contour cut even complex shapes allows you to optimize productivity and maximize profits.

3.png__PID:138c8c72-e5cf-43f0-b685-caa977c5c9fa

Starter Price

BN2 Series printer/cutters offer start-up businesses and smaller print providers professional-level print/cut quality and performance, as well as legendary Roland DG reliability, at extremely affordable pricing. Included design and output software offer everything you need to take your operation to the next level, at a price that will suit your budget.

4.png__PID:8c8c72e5-cf33-4076-85ca-a977c5c9fa7a

Easy to Use

The BN2 Series devices incorporate innovative design and user features that make these powerful desktop devices incredibly simple to operate. With a BN2, even those with little or no printing experience can quickly begin producing professional-quality graphics with ease and precision.

5.png__PID:8c72e5cf-33f0-4685-8aa9-77c5c9fa7ac8

Compact Size

Compact BN2 Series printer/cutters fit easily on most desktops, making them perfect for home-based businesses or smaller print shops. “Front access structure” enables all operations, from media setup to maintenance, to be performed from the front of the printer. There’s even a built-in storage drawer for tools and spare ink. All these features allow for efficient operation in a small space.

6.png__PID:72e5cf33-f076-45ca-a977-c5c9fa7ac87a

Included FlexiDESIGNER VersaSTUDIO Edition Software

BN2 Series printers come bundled with FlexiDESIGNER VersaSTUDIO Edition design and output software that allows even those with little or no printing experience to start creating and outputting colorful, attention-grabbing graphics immediately after purchasing their BN2. This feature-filled, intuitive software is a complete solution, providing a host of useful tools for creating shapes, text, and effects, while also simplifying the print and cut workflow.

7.png__PID:e5cf33f0-7685-4aa9-b7c5-c9fa7ac87a1a

Included VersaWorks 7 Output Software

For users looking for even greater control over BN2 output settings and capabilities, every BN2 device also comes with VersaWorks 7 output software. Easy to use and powerful, VersaWorks 7 offers features and tools that optimize quality and streamline processes for the printer, ink and media. VersaWorks also simplifies the setup of print layouts, generates cut lines for print and cut applications, and comes with built-in color management tools to make reproducing specific colors easier than ever.

learn more
444.png__PID:9d759804-b614-4505-b00c-fd5ced9ba1d5
Artboard 2.svg__PID:c1f43c98-a1d5-4875-b48f-5faab0a7b8a8

Optimal Print Settings for Media

Profiles with optimal setting information for each media type are included, making it easy for anyone to achieve professional-quality printing results.

Artboard 5.svg__PID:6875f48f-5faa-40a7-b8a8-31a4702f8bbb

Excellent Outdoor Durability

BN2 Series devices use high-quality eco-solvent inks with excellent outdoor durability – ideal for creating vibrant, long-lasting posters, decals, exterior window graphics, and more.

Artboard 3.svg__PID:3c98a1d5-6875-448f-9faa-b0a7b8a831a4

Utility Software

Provides intuitive and quick access to the items you want to use and comfortably supports operation from printer setup to maintenance and sheet cutting.

Artboard 6.svg__PID:d56875f4-8f5f-4ab0-a7b8-a831a4702f8b

Media Set Support Functions

Automatically absorbs inserted media during media setup. Suppresses skewed media and supports easy and accurate setup operations.

Artboard 4.svg__PID:98a1d568-75f4-4f5f-aab0-a7b8a831a470

Automatic Sensor Adjustment

Automatic fine-tuning of printer settings according to media type and thickness ensures optimum conditions for the media being used, enabling anyone to produce professional-quality prints.

Artboard 7.svg__PID:a1d56875-f48f-4faa-b0a7-b8a831a4702f

New Sheet Cut Function

No manual cutting required! With the BN2’s new sheet cut function, cutting is possible with the touch of a button in the Utility software.

Produce and Profit

BN2 Series devices are perfect for creating prints, posters, and stickers as well as on-demand heat-transfer custom graphics for T-shirts, hoodies, bags, and many other popular and profitable items.

t-shirt2__PID:de22e9e5-a9f0-4e1b-ae56-5a500218a647

T-Shirts

Retail Sell Price

$15.00

Units Per Hour

90

Total Cost Per Unit

$3.00

Blank Item

$3.00

Material + Ink

Profit per Job

$1,010

hoodie__PID:1e7e96d1-3992-4ce7-9205-1b7307f87fc7

Hoodies

Retail Sell Price

$35.00

Units Per Hour

30

Total Cost Per Unit

$12.00

Blank Item

$2.34

Material + Ink

Profit per Job

$620

bag__PID:82aa23ec-bde4-45f3-b855-41ce1f255130

Tote Bags

Retail Sell Price

$15.00

Units Per Hour

30

Total Cost Per Unit

$2.00

Blank Item

$2.34

Material + Ink

Profit per Job

$380

decal__PID:3879ffd0-a6d7-4514-acb3-46b7cc83c2b3

Decals

Retail Sell Price

$1.00

Units Per Hour

230

Total Cost Per Unit

N/A

Blank Item

$0.12

Material + Ink

Profit per Job

$198

*Printed with the BN2-20a. Numbers shown are estimates based on averages only and will vary by each job and use.

connect-app__PID:3218b3f8-dd0e-421f-babb-f31828d1bfeb

Roland DG Connect App
For Everything Creative

Gain a detailed understanding of your entire print operation while keeping your device running at optimum performance with a user-friendly app specially designed to integrate seamlessly with your VersaSTUDIO BN2. Reduce downtime and improve efficiency with a machine monitoring assistant that works in complete harmony with your device.

learn more
versastudio-logo__PID:20916eb0-6123-4233-80f9-5aa176a433bb

Expand Your Creative Possibilities

The VersaSTUDIO product family includes a range of affordable, intuitive desktop digital imaging devices that make it easy for anyone to produce what was previously achievable only by a limited number of professionals. VersaSTUDIO expands creative possibilities, so users can challenge the ordinary, start a business, expand their services, or simply learn digital manufacturing.

learn more
1-year-limited__PID:a55e5560-ed49-48fe-b044-68a242e6283e

Roland DG’s Industry-Leading Warranty and Support

Every BN2 device comes with Roland DG’s industry-best customer service and support, along with a One-Year Limited Warranty that can be extended for up to three years. Your success is our success, so you can rest assured we’ll be with you every step of the way to make sure you are fully satisfied with the performance of your Roland DG device.
