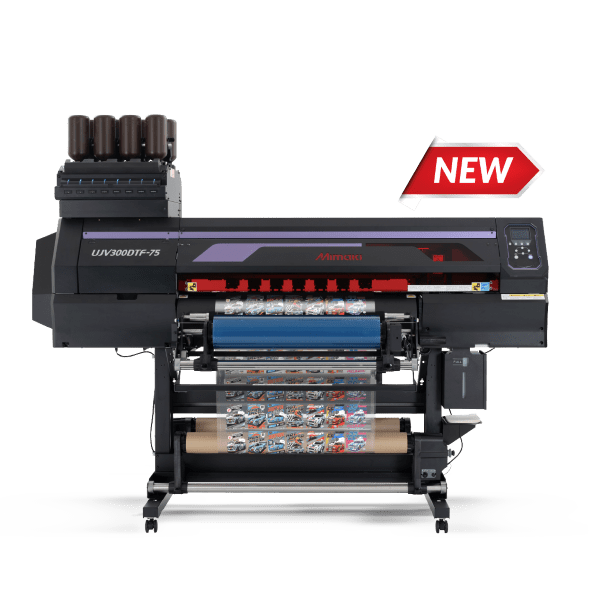

Mimaki UJV300DTF-75
UV-DTF Printer
The Mimaki UJV300DTF-75 printer is the company’s first purpose-built UV-DTF (direct-to-film) printer, designed to easily produce vibrant, durable transfers inlcuding curved or uneven surfaces using a dedicated film system. With stable media handling, next-generation UV inks, and user-friendly operation, it opens up new possibilities for customized goods production.
📅 Availability: June 2025
🔥 Pre-order now to be among the first to unlock the future of decoration printing.
📞 Talk to a Specialist 📄 Request a Quote
| UJV300DTF-75 | |
|---|---|
| Print Head | Two on-demand piezo heads |
| Print Resolution | 1,200dpi max |
| Ink Type/Color | 4C+4SP (CMYK+WWClCl)
UV curable flexible ink ELS-170 CMYK UV curable hard ink ELH-100 White/Clear |
| Ink Capacity | 1L bottle |
| Ink Circulation System | Available only for white ink |
| Maximum Print Width | 640 mm (25.2 in) |
| Maximum Media Width | 650 mm (25.6 in) |
| Media Roll Diameter | φ250 mm (9.8 in) or less |
| Media Roll Weight | 45 kg (99.2 lb) or less |
| Interface | USB2.0 / Ethernet 1000 BASE-T |
| Certifications | VCCI class A / FCC class A / ETL IEC 62368-1 / CE Marking (EMC, Low voltage, Machinery directive and RoHS) / CB / REACH / Energy Star / RCM / KC |
| Power Supply | Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz x 1 |
| Power Consumption | 100V – 1,440W or less, 200V – 1,920W or less |
| Operational environment | Temperature: 68-86 F (20° – 30°C)
Humidity: 35 – 65 % RH (Non condensing) |
| Dimensions (W×D×H) | 82” x 37” x 58” (2,090 × 930 × 1,475 mm) |
| Weight | 367 lbs (180kg) |
| Maximum Media Weight | 99 lbs (45 kg) or less |
- Some of the samples in this website are artificial renderings.
- Specifications, design and dimensions stated in this website may be subject to change without notice (for technical improvements, etc).
- The corporate names and merchandise names written on this website are the trademark or registered trademark of the respective corporations.
- Inkjet printers print using extremely fine dots, so colors may very slightly vary after replacement of the printing heads. Also note that if using multiple printer units, colors could vary slightly from one unit to other unit due to slight individual differences.
| UV curable ink | Cyan | Magenta | Yellow | Black | White | Clear |
|---|---|---|---|---|---|---|
| ELS-170 (1 L) | ✔ | ✔ | ✔ | ✔ | ||
| ELH-100 (1 L) | ✔ | ✔ |
Precautions for UV printing
⚠️ Inks and substrates:
- Please note that properties and adhesion, weather resistance etc. of ink and substrates can vary. Therefore please test materials before printing.
- Some substrates require primer before printing. Please test materials beforehand or ask your sales representative.
⚠️ Safety notice:
You are dealing with UV light sources that may harm your health. Please follow below guidelines strictly:
- Do not look directly into the UV light source nor place your hand, or expose your skin directly to the UV light source.
- Depending upon print mode, there might occur some VOC emittance from printed parts not yet cured and hardened.
- In addition, please read the instructions and guidelines of the manual carefully and follow those.
Download Your UJV300DTF-75 Brochure
Download your digital brochure to explore in-depth features,
benefits, applications, and technical specifications of the UJV300DTF-75.
Download Your UJV300DTF-75 Specsheet
Get your digital guide to all the features, applications,
benefits, and specifications of the UJV300DTF-75.
Introducing the UJV300DTF-75
Create High-Value Custom Goods with the Industry’s First All-in-One UV-DTF Printing System
Revolutionize Custom Printing with UV-DTF
The Mimaki UJV300DTF-75 is Mimaki’s first purpose-built UV-DTF (UV curable – Direct To Film) printer—designed for maximum flexibility, vibrant output, and incredible efficiency. This compact, all-in-one system opens new opportunities for creating custom merchandise, signage, and décor, even on curved or uneven surfaces that traditional printers can’t reach.
By combining high-resolution UV printing with a specialized film transfer method, this printer makes it easy to apply detailed graphics on virtually any object—with no weeding, less waste, and fewer errors.
Mimaki Core
Technologies Inside
NCU (Nozzle Check Unit)
Automatically detects and recovers clogged nozzles
NRS (Nozzle Recovery System)
Keeps you running even with nozzle issues
MCT (Mimaki Circulation Technology)
Maintains consistent white ink flow
MAPS (Mimaki Advanced Pass System)
Eliminates banding and ensures smooth gradients
Waveform Control
Fires ink droplets with perfect shape and placement
Limitless Applications
Promotional Items (tumblers, bottles, phone cases)
Giftware & Home Décor
Packaging & Labels
Industrial Goods
Items with Irregular or Curved Surfaces
Sports Gear & Accessories
Interior Surfaces
Custom Signs
Performance You Can Measure
Experience a printing solution that simplifies your workflow and enhances productivity. The Mimaki CJV200 Series is designed to minimize downtime with an innovative single print head for easy maintenance, ensuring you produce high-quality prints swiftly. Enjoy safer, eco-friendly operation with GBL-free inks while benefiting from streamlined production cycles that reduce operating costs and help you consistently meet tight deadlines.
90%
Faster
Eco-solvent systems need 27 hrs (2 hr print, 24 hr dry, 1 hr laminate); UCJV finishes in just 3 hrs for rapid turnaround.
50%
Lower Energy Use
Eco-solvent printers consume double the power; UCJV330’s efficient design cuts energy use by 50%.
Instant
Ink Cure
While eco-solvent inks require a 24-hr drying period, UCJV’s UV ink cures instantly, opening options for same day lamination delivery.
90%
More Efficiency
Achieve speeds up to 17.0 m²/h, delivering up to 90% higher output compared to conventional systems.
100%
GBL-Free Ink
Utilizes SS22 eco-solvent ink that's completely free of GBL for enhanced safety and environmental care.
40%
Less Maintenance
The single print head design reduces cleaning and adjustment time by up to 40%, boosting uptime.
Clean Transfers
Zero Weeding
UV-DTF technology streamlines the production process by transferring only the printed design—no background, no excess material, and no manual weeding required. Because the design is applied from film rather than printed directly onto the object, there’s less risk of alignment errors or costly misprints. This makes it ideal for customizing high-value or uniquely shaped items with precision and peace of mind.
How UV-DTF Works
Print → Laminate → Transfer → Done
The UJV300DTF-75 prints directly onto a two-part film system—a glue-coated film plus a transfer sheet. After printing, the design is laminated inline and transferred like a sticker to the final product.
Because the film holds the design, there's:
- No need to align or print directly on the product
- No weeding or excess material to remove
- No stress when decorating expensive or awkward-shaped items
It’s an ideal solution for small-batch production, personalized goods, promotional items, and more.

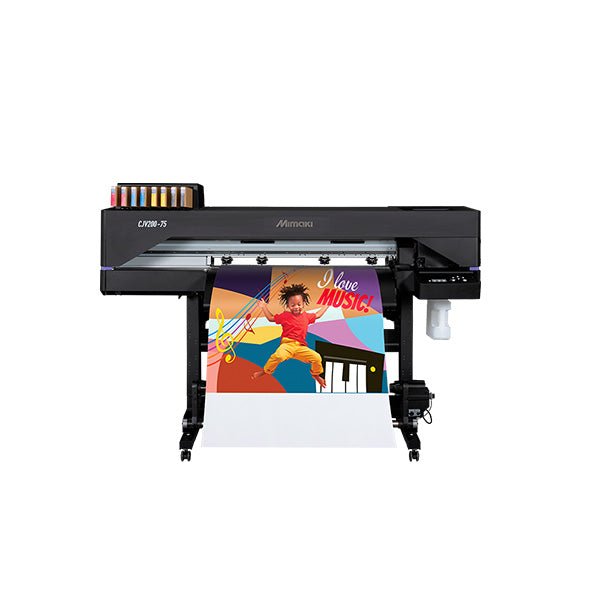

CJV200-75
Designed for simple stickers and labels, the CJV200-75 offers a compact solution with a maximum print/cut width of 800 mm (31.5") and a media width of 810 mm (31.9"). It’s perfect for efficiently producing smaller format projects with ease.

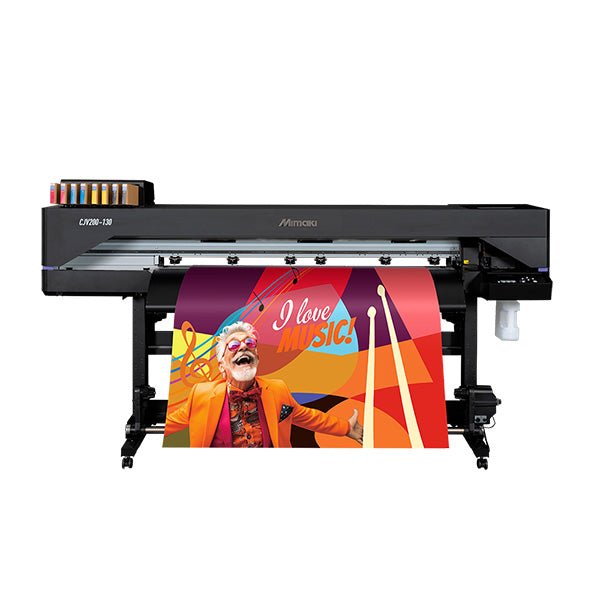

CJV200-130
Ideal for versatile signage and point-of-sale marketing materials, the CJV200-130 features a maximum print/cut width of 1,361 mm (53.6") and a media width of 1,371 mm (54.0"). This model allows you to create impactful promotional displays with consistent quality.

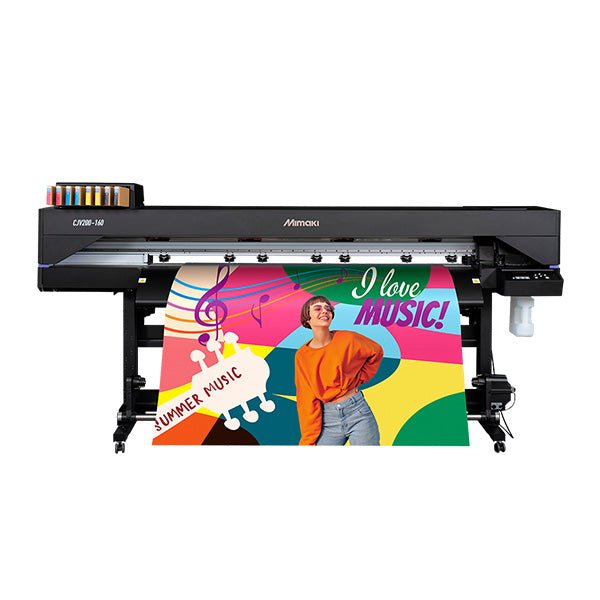

CJV200-160
Engineered for cost-effective production of large, high-quality signage and vehicle wrapping films, the CJV200-160 delivers a maximum print/cut width of 1,610 mm (63.4") and a media width of 1,620 mm (63.8"). It’s the perfect choice for expansive projects demanding reliable performance.
CJV200-160B
The CJV200-160B mirrors the robust capabilities of the CJV200-160, offering the same maximum print/cut width of 1,610 mm (63.4") and media width of 1,620 mm (63.8"). It’s designed for cost-effective, high-quality production of large signage and wraps, ensuring consistent results across every project.
Effortless Media Handling
Rear Take-Up System
Hands-free film winding for continuous, stable output.
The UJV300DTF-75 is equipped with an automated rear take-up system that precisely winds the UV-DTF film’s release liner at the same speed as the printer’s transport mechanism. This ensures smooth media handling throughout the print process, prevents slack or misalignment, and supports uninterrupted, high-quality production—perfect for long runs and demanding workflows.
Easy Media Loading
Simplified setup with just one lever press.
Loading application sheets has never been easier. The UJV300DTF-75 features an intuitive lever system that allows users to set media quickly and effortlessly—even for thin or delicate transfer films. This streamlined loading process minimizes setup time and ensures a smooth start to every print job, making it ideal for beginners and busy production environments alike.
Intuitive. Fast. Innovative.
Intuitive Operation
The user-friendly control panel comes with auto-alignment, feed compensation, and precise drop positioning. These smart features ensure that every print is perfectly registered and consistent, simplifying adjustments and boosting workflow efficiency for daily production demands.
Rapid Production
Experience high-speed output with dual 4-color printing that delivers up to 17 m²/h in standard mode and an impressive 22 m²/h in high-speed mode. This performance enables you to tackle large sticker runs and high-volume jobs quickly, without sacrificing print quality or consistency.
Innovative Design
The new body design features a large, easy-opening maintenance panel that provides quick access to internal components. This user-centric design minimizes downtime by simplifying routine cleaning and adjustments, ensuring your printer remains at peak performance with minimal effort.
Cloud-Based Monitoring
Control from Anywhere
Real-Time Printer Insights
PICT is a cloud-based monitoring tool that provides real-time visualization of your printer’s status and performance, accessible from your PC or mobile device. Enhance production management and efficiency with remote insights that keep you in control, wherever you are.
High-Performance, User-Friendly RIP
Experience next-level productivity with Mimaki's newly developed RasterLink7. Designed for ease of use and powerful performance, it improves special effects reproducibility, shortens PDF processing by 25% versus RL6Plus, and supports variable printing—all through an intuitive, integrated interface.
Included RasterLink 7 RIP Software
Newly developed RasterLink7 is equipped with more useful and advanced functions! With increased RIP processing speed, usability, and productivity, it supports Variable printing.
Improves reproducibility of special effects (such as transparency) of PDF data
Swift RIP processing of PDF data for increased productivity
Prints out the variable data by Variable print function
Displays frequently used setting and pop-up windows
Take Control Anywhere with Mimaki Remote Access
Take charge of your entire production environment with Mimaki Remote Access. This innovative tool provides a comprehensive dashboard that delivers real-time performance metrics and instant alerts, allowing you to adjust settings on the fly from any PC or smartphone.
Whether you're monitoring ink levels, temperature, or device status, you can quickly respond to any deviations and ensure smooth operation across multiple sites. Centralized control helps optimize workflows, reduce downtime, and ultimately enhance productivity throughout your print operations.
Certifications
The UJV300DTF-75 meets international standards for performance and safety:
- VCCI Class A
- FCC Class A
- CE Marking (EMC, Low Voltage, Machinery, RoHS)
- ETL (IEC 62368-1)
- CB, REACH, ENERGY STAR
- RCM, KC
GREENGUARD Gold Certification
UJV300DTF-75 is equipped with our newly developed UV ink. This ink is a next-generation ink that is safe and does not contain substances that are expected to be restricted under the European SVHC regulation*1 and is scheduled to obtain GREENGUARD Gold certification*2.
*1. REACH regulation governing substances of concern, especially those that may have a significant impact on human health or the environment.
*2. GREENGUARD GOLD certification is one of the environmental certification systems operated by UL (Underwriters Laboratories) in the U.S. and is given to products with low VOC (Volatile Organic Compounds) emissions.
