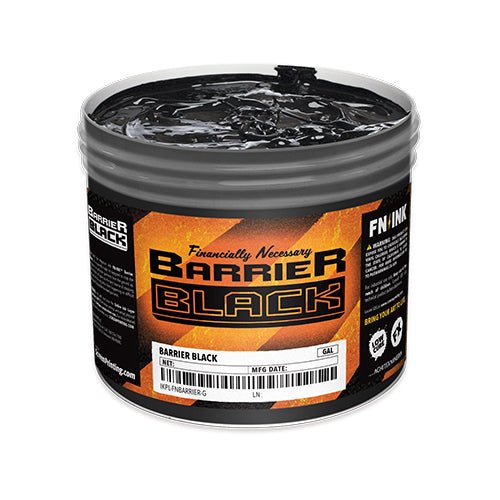

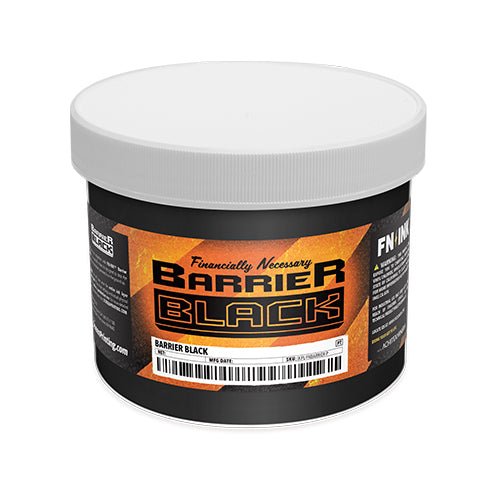

FN-INK Barrier Black Ink

It's strongly encouraged to keep temperatures in your dryer as low as possible while still hitting cure temp* of 260°F. Keeping temps low will not excite the dyes and stop the extreme blocking power of the FN-INK™ Barrier Black.

Here’s a brief summary on why dye migration happens. Most polyester fabrics’ dye/temperature is set between 270°F-300°F. When the polyester thread hits that temperature range again, the dyes return to a gaseous state and are absorbed by the plastisol inks.

In the case of dye sublimation, the dye transfer temps are much much lower. Those dyes are excited and can transfer into the ink at those lower cure (and flash) temps.

*Cure is attained when the ENTIRE ink layer reaches 260°F, meaning that the ink is 260° from the top to the bottom of the ink layer. If you are using a laser gun to read the surface temp, it WILL be misleading. Laser temperature guns give you a reflective reading. When tested side-by-side with a donut probe, you will see temperature differences as great as 120°F-150°F early in the cure cycle (the donut probe accurately measures the contact temperature where the crosshairs reside). As you reach the end of the dryer, those temperatures will get closer together. As a direct result, you will need to read a surface temp as little as 60°F above what stated cure temp is and as much as 100°F depending on how short your dryer tunnel is and how hot your settings are. This is due to a few things:

1. The rate that plastisol ink absorbs heat. Some colors will heat up faster than others as they absorb infrared heat waves more readily.
2. How hot the ink is when entering the tunnel. Cooler inks will take longer to heat up, thus taking longer to reach cure.
3. The thickness of your ink deposit. As we all know, thicker ink deposits take longer to cure than thinner ink deposits. A longer dwell time is needed to reach full-cure through the whole ink layer. Heat/IR waves take time to penetrate and heat up the ink.
4. The length of your tunnel. Curing ink is about temperature and time. It takes time for the entire ink layer to heat up and reach cure temp. The faster and hotter you run, the greater your chance to not reach full cure temp at the bottom of the ink layer.
5. Cotton garments take longer to heat up compared to polyblends or 100% polyester. This is due to the absorptive nature of cotton. Cotton soaks up and holds onto water. When putting the shirt through the dryer, the dryer will release the water in the cotton fibers, slowing down how fast ink heats up. This process directly relates to how water based ink heats up and reaches cure, just on a smaller scale.
6. The quality of your infrared panels. IR Panels are not created equal. Without diving into the deep details, some panels are more efficient in creating heat within the ink layer than others.

When changing your dryer to low cure temps, follow the recommendations and parameters laid out above and do wash testing to ensure your new dryer settings are reaching full cure.
