Save $2,100.00
Roland TrueVIS LG Series UV Printer/Cutter
Regular price
Sale price
$22,195.00
Regular price
$24,295.00
Shipping calculated at checkout.
Request a Quote
Fill out the form below to connect with a product expert.
Couldn't load pickup availability
Product Details
Product Details
Combining the flexibility of print and cut, the benefits of UV-LED printing, and TrueVIS heritage, the LG series adds a new dimension to graphics printing.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Independently Tested and Recognized
2024 Keypoint Intelligence BLI Pick Award Winner
Roland DG TrueVIS LG-640
Outstanding UV 54"/64" Printer
The TrueVIS LG-640 received high marks during Keypoint Intelligence testing for color accuracy, multi-panel consistency, image quality, and production speed.
Compare the Roland TrueVIS LG Series
Choose the high-production UV print-and-cut solution that fits your media width, workspace, and production demands.

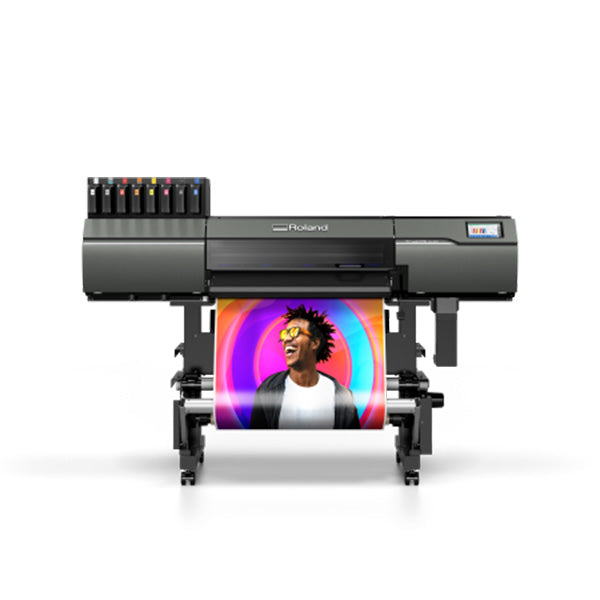

TrueVIS LG-300
30-Inch High-Production UV Printer/Cutter
Best For
Compact production environments, decals, labels, packaging prototypes, specialty graphics, and shops needing faster UV output in a smaller footprint.
Print and Cut Width
Up to 28.9 inches
Production Capacity
Up to 232 sq. ft. per hour
Maximum roll weight: 66 lb.
Ink Configuration
CMYK, White, Gloss, Red, Orange and Primer
750 ml ECO-UV EUV5P ink pouches
Included Capabilities
Integrated print-and-cut
Built-in UV-LED curing
Touchscreen control and auto calibration
Maximum 1,200 dpi resolution
TrueVIS LG-640
64-Inch High-Production UV Printer/Cutter
Best For
High-volume wide-format production, window graphics, wall coverings, signage, packaging prototypes, and shops requiring greater media capacity and speed.
Print and Cut Width
Up to 62.9 inches
Production Capacity
Up to 343 sq. ft. per hour
Maximum roll weight: 99 lb.
Ink Configuration
CMYK, White, Gloss, Red, Orange and Primer
750 ml ECO-UV EUV5P ink pouches
Included Capabilities
Integrated print-and-cut
Built-in UV-LED curing
Touchscreen control and auto calibration
Maximum 1,200 dpi resolution
Take Print and Cut Further
TrueVIS is synonymous with industry-leading print-and-cut machines. Enhance your capabilities with premium UV-LED printing technology and specialty effects that allow you to offer customers even more products.
High-Quality Ink
Using the latest ECO-UV EUV5 inks for exceptional and premium-value printing, we go beyond CMYK to give you even more options and flexibility.
Talk to a McLogan certified technician expert about your print requirements to discover the ink configuration that’s right for you.
CMYK
Get premium results with high-quality CMYK EUV ink.
Gloss
Generate a multitude of tangible effects, simulated embossing and gloss finishes.
White
Print high-opacity white details or add sub-coats for dark or transparent materials.
Red and Orange
With our True Rich Color preset, extend your available gamut and reproduce brand colors perfectly.
Primer
Apply primer to the print area with precision for optimum media compatibility.
Shrink Inks
Perfect for flexible packaging, Roland DG EUVS inks offer extended shrink capability.
PERFORMANCE • DURABILITY • DESIGN •
Certified for Commercial-Grade Type II Wall Coverings
Roland DG EUV5 inks have met industry-standard Type II certifications for popular non-PVC wall covering materials*, ideal for commercial and hospitality applications.
* EUV5 ink has passed commercial-grade requirements on specific materials. For Type II certifications, testing is required on each individual material. Inquire to learn more about which materials are certified for your application.
GREENGUARD Gold
ECO-UV5 inks are GREENGUARD Gold certified, meaning they meet strict standards of low chemical emissions, making them ideal for indoor applications.
Included VersaWorks 7
The latest edition offers powerful new 64-bit processing and RIP capabilities, plus easy, nesting, cropping, tiling and other features from the world’s most popular RIP software.
- HARLEQUIN RIP dual core engine and 64-bit native processing for enhanced speed and file handling.
- Variable data options for printing multiple images and text onto media in a single print run.
- UV post cure within the RIP and auto-generate White and Gloss layers directly in the RIP with Special Color Plate Generation.
- Create cut data directly in VersaWorks 7 by extracting PDF data from your design file to use as a cut line — changing vector data into cut line data, merging multiple cut lines together, creating perf cut lines, and other intuitive features.
- Easy new drag-and-drop interface allows you to quickly add jobs to the print queue.
- Create color consistency with select Roland DG devices— print, scan and transfer color values.
- Rotate, set spacing, and maintain clip position within the RIP to give you more control when printing graphics and applying Gloss ink effects.
Roland DG Connect App For Everything Creative
Innovative app serves as a machine-monitoring "assistant," reducing downtime, improving work efficiency, and providing you with a detailed understanding of your entire print operation to optimize overall performance.
Roland DGA’s Industry-Leading Warranty and Support
The LG & MG Series is backed by Roland DGA's unmatched customer service, support and a two-year warranty*.
For additional peace of mind, Roland DGA offers comprehensive Service Contracts to extend your warranty. Purchase your Extended Service Contract for a LG Series and MG Series at the Roland DGA Marketplace. For more information on warranties, click here.
*Registration within 60 days of purchase and exclusive, continuous use of Roland DGA approved inks is required to qualify for warranty coverage.
Datasheet & Reports
Download Your LG Series Datasheet
Get your digital guide to all the features, applications, benefits and specifications of the UV Printer Cutters.
Download Your MG Series Datasheet
Get your digital guide to all the features, applications, benefits and specifications of the UV Printer Cutters.
TrueVIS LG Series Specifications
Swipe horizontally to view the complete table.
| Model | LG-640 | LG-300 | |
|---|---|---|---|
| Printing method | Piezo ink-jet method | ||
| Media | Width |
13.2 to 64 in. (335 to 1625 mm) |
7.2 to 30 in. (182 to 762 mm) |
| Thickness |
Max. 39.3 mil (1.0 mm) with liner, for printing Max. 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner, for cutting |
||
| Roll outer diameter | Max. 9.8 in. (250 mm) | ||
| Roll weight | Max. 99 lb. (45 kg) | Max. 66 lb. (30 kg) | |
| Core diameter | 3 in. (76.2 mm) or 2 in. (50.8 mm) | ||
| Printing / cutting width1 | Max. 62.9 in. (1600 mm) | Max. 28.9 in. (736 mm) | |
| Ink | Type | ECO-UV (EUV5P) 750 ml pouch | |
| Colors |
Eight colors
(Cyan, Magenta, Yellow, Black, Gloss, White, Orange, and Red) Seven colors (Cyan, Magenta, Yellow, Black, Gloss, White, and Red) and Primer Seven colors (Cyan, Magenta, Yellow, Black, White, Orange, and Red) and Primer Seven colors (Cyan, Magenta, Yellow, Black, White, Orange, and Red) Six colors (Cyan, Magenta, Yellow, Black, Gloss, and White) and Primer Six colors (Cyan, Magenta, Yellow, Black, Gloss, and White) Four colors (Cyan, Magenta, Yellow, and Black) |
||
| Ink curing unit | Built-in UV-LED lamp | ||
| Print resolution (dots per inch) | Max. 1200 dpi | ||
| Print speeds | LG-640: 343 sqft/hr at 720 × 600 dpi | LG-300: 232 sqft/hr at 720 × 600 dpi | |
| Cutting speed | 0.39 to 11.8 in./s (10 to 300 mm/s) | ||
| Blade force2 | 30 to 500 gf | ||
| Blade | Type | Roland CAMM-1 series blade | |
| Offset | 0 to 59 mil (0 to 1.500 mm) | ||
| Software resolution (when cutting) | 0.98 mil/step (0.025 mm/step) | ||
| Media heating system3 | Front heater set temperature: 86 to 131 °F (30 to 55 °C) | ||
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | ||
| Power-saving function | Automatic sleep feature | ||
| Power requirements |
100-120/220-240 Va.c. 50/60 Hz 6.5/3.2 A |
100-120/220-240 Va.c. 50/60 Hz 5.7/2.6 A |
|
| Power consumption | During operation | Approx. 800 W | Approx. 650 W |
| Sleep mode | Approx. 85 W | ||
| Acoustic noise level | During operation | 63 dB (A) or less | |
| During standby | 58 dB (A) or less | ||
| Dimensions (with stand) |
114.3 in. × 29.5 in. × 55.6 in. (2902 mm × 748 mm × 1412 mm) |
80.3 in. × 29.5 in. × 55.6 in. (2038 mm × 748 mm × 1412 mm) |
|
| Weight (with stand) | 461 lb. (209 kg) | 371 lb. (168 kg) | |
| Environment | During operation4 | Temperature: 68 to 89.6 °F (20 to 32 °C), Humidity: 35 to 80% RH (no condensation) | |
| Not operating | Temperature: 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80% RH (no condensation) | ||
Specifications, designs and dimensions listed may be subject to change without notice.
- The length of printing or cutting is subject to the limitations of the program.
- 500 gf is the maximum instantaneous blade force. The blade force must be adjusted according to details such as the media thickness.
- Warm-up is required after power up. This may require 5 to 20 minutes depending on the operating environment. Depending on ambient temperature and media width, the preset temperature may fail to be reached.
- Operating environment: Use in an operating environment within this range.
