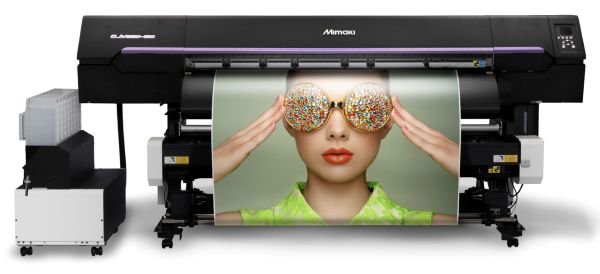

Mimaki CJV330 Series Eco-Solvent Printer Cutter
Print, Cut, and Scale Your Business in One Streamlined Workflow
If you’re a print shop owner, sign maker, or creative entrepreneur looking to maximize production speed and precision without doubling up on equipment, the Mimaki CJV330 Series was built with your business in mind. This integrated eco-solvent printer and cutter delivers commercial-grade output with the flexibility of print-and-cut functionality—all in a single device.
Whether you're producing decals, custom signage, labels, or large-format banners, the CJV330 empowers you to create more in less time, while maintaining the exceptional color fidelity and sharpness Mimaki is known for. This machine is the ideal upgrade for mid to high-volume operations that want to boost throughput without sacrificing quality.
Key Features & Benefits
-
Integrated Print & Cut Workflow
Combine printing and contour cutting in one seamless process—no more transferring prints to a separate cutter.
-
Fast, High-Quality Output
With dual staggered printheads and resolutions up to 1,200 dpi, the CJV330 reaches speeds up to 1,076 sq. ft/hr in 4-color mode.
-
Precision XY Slitter
Save post-processing time with an integrated XY slitter that slices media along both axes—ideal for print shops handling posters, stickers, or panel-ready graphics.
-
Multiple Roll Handling
Load up to three media rolls at once. Switch jobs faster and reduce downtime between material changes.
-
Advanced Mimaki Cutting Tech
Includes a V-cut function for easier weeding and cleaner edges, especially for complex vinyl graphics.
-
In-Machine Lighting
Internal LED lighting illuminates the print area so you can inspect quality in real-time.
-
Remote Monitoring
Use Mimaki Remote Access (MRA) from a smartphone or tablet to track jobs and printer status, even when you’re away from the machine.
-
Vibrant Color Gamut
Supports up to 8-color ink sets, including Light Cyan, Light Magenta, Orange, and White, ensuring bold, rich graphics for everything from vehicle wraps to fine art prints.
Use Cases & Application Tips
The CJV330 Series is versatile enough to serve a wide range of industries and job types. Here’s where it shines:
-
Print Shops & Sign Makers: Produce full-color outdoor signage, window decals, floor graphics, and contour-cut stickers with ease.
-
Apparel Decoration: Create heat transfer vinyl prints and labels ready for garment application.
-
Retail & POP Displays: Bright, durable graphics for backlit signage, posters, and product displays.
-
Vehicle Wraps & Graphics: Achieve edge-to-edge print-and-cut wraps that adhere beautifully to curves and contours.
-
Label & Packaging Prototyping: Fast turnaround for labels and prototype packaging designs with custom cutting.
💡 Pro Tip: When using white ink, consider using clear or metallic media for premium packaging mock-ups or window clings with double-sided visibility.
Technical Specs & Compatibility
| Category |
Details |
| Printer Type |
Eco-Solvent Printer/Cutter with Integrated XY Slitter and Lighting |
| Printhead Technology |
On-demand piezo head (2 staggered printheads) |
| Print Resolutions |
600 dpi, 800 dpi, 900 dpi, 1200 dpi |
| Print Speed (4-color mode) |
Up to 1,076.4 sq. ft/hr (100.00 m²/hr) |
| Maximum Print Width |
53.5 in (1360 mm) – 54" Model63.4 in (1610 mm) – 64" Model |
| Maximum Media Width |
53.9 in (1370 mm) – 54" Model63.8 in (1620 mm) – 64" Model |
| Media Thickness |
Up to 0.04 in (1.0 mm) |
| Rolled Media Weight |
Single roll: max 99.2 lbs (45 kg)Triple rolls: max 198.4 lbs (90 kg) |
| Ink Type |
Mimaki SS21 Eco-Solvent Inks |
| Available Ink Colors |
C, M, Y, K, Lc, Lm, Lk, Or, W |
| Ink Package Size |
2-liter ink packs |
| Cutting System |
Contour cutting with V-cut optimization |
| Integrated Features |
XY Slitter, V-cut Function, LED In-Machine Lighting, Mimaki Remote Access |
| Connectivity |
Ethernet 1000BASE-T (recommended), USB 2.0 Hi-Speed |
| Power Requirements |
Dual phase AC100–120V / 200–240V ±10%, 50/60Hz ±1Hz |
| Power Consumption |
Max: 1440W × 2Sleep Mode: 4.5W |
| Operating Temperature |
20–30 °C (68–86 °F); Recommended: 20–25 °C (68–77 °F) |
| Operating Humidity |
35–65% RH (non-condensing) |
| Dust Tolerance |
General office level |
| Dimensions (W × D × H) |
115.0" × 47.8" × 51.4" – 54" Model124.8" × 47.8" × 51.4" – 64" Model |
| Weight |
800.3 lbs (363 kg) – 54" Model822.3 lbs (373 kg) – 64" Model |
| Certifications |
VCCI Class A, FCC Class A, ETL IEC 62368-1, CE, RoHS, REACH, Energy Star, UKCA, and more |
Frequently Asked Questions (FAQ)
Q: Is the CJV330 Series compatible with my current RIP software?
A: Yes, it's fully compatible with RasterLink 7, and many major RIP platforms. RasterLink is included with the printer.
Q: Can I run multiple jobs with different media back-to-back?
A: Absolutely. The media changer can hold up to three rolls, allowing you to queue up varied print jobs without constant reloading.
Q: What file types and workflows are supported?
A: Standard formats like PDF, EPS, TIFF, and JPEG are supported. The built-in RIP also handles color management, nesting, and cut paths.
Q: How does the XY slitter work in a real-world shop?
A: The built-in XY slitter automates trimming in both the horizontal and vertical direction—ideal for jobs that require clean panels or repeat cuts like stickers and posters.
Q: Does this printer come with training or support?
A: When purchased through an authorized distributor like McLogan Supply, you gain access to installation support, setup guides, and U.S.-based customer service.
Q: Is financing available?
A: Yes. McLogan offers flexible financing options to help make the CJV330 a cost-effective upgrade for your business.
Why Choose the Mimaki CJV330 Series?
The CJV330 is more than a printer—it’s a powerful all-in-one production solution that saves time, reduces labor, and helps you deliver more to your clients. From vibrant, detailed prints to precision-cut output, it’s designed to scale with your ambitions.
Whether you're upgrading from an entry-level device or expanding your shop’s capacity, the CJV330 Series delivers the print speed, color accuracy, and integrated workflow needed to elevate your print business.
