Aeolus Forced Air Dryer

by BBC
SKU BBCAIR366C-42
Original price $17,995.00 - Original price $22,500.00
Original price
$17,995.00
$17,995.00 - $22,500.00
Current price $17,995.00
Belt Width: 36 IN
Length: 12 FT

Description

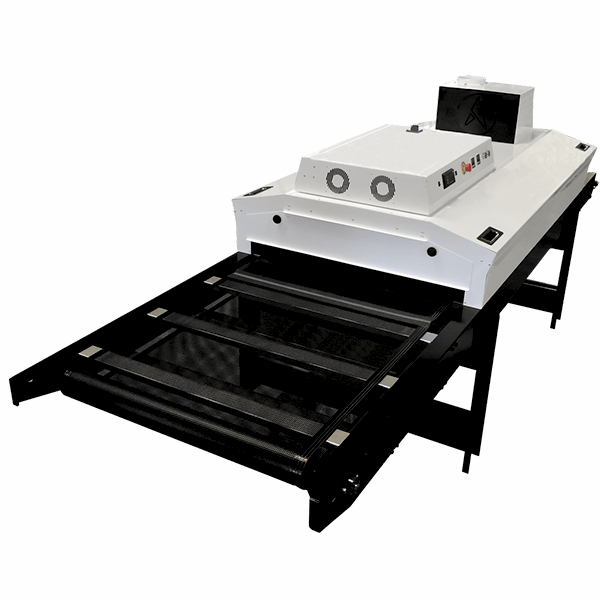

The Aeolus is the next generation of Forced Air Conveyor Dryer. Using BBC’s proprietary heating elements there is nothing that BBC Aeolus dyer can’t cure. From plastisol to pretreat, and everything in between, the Aeolus out shines the competition. The Aeolus’s revolutionary design uses banks of angled heating panels running along the edge of the PTFE coated belt to all but eliminate edge loss. Its unique design, partnered with BBC’s proprietary watt density algorithm, provides the Aeolus with the most even edge-to-edge cure in its class.



Features

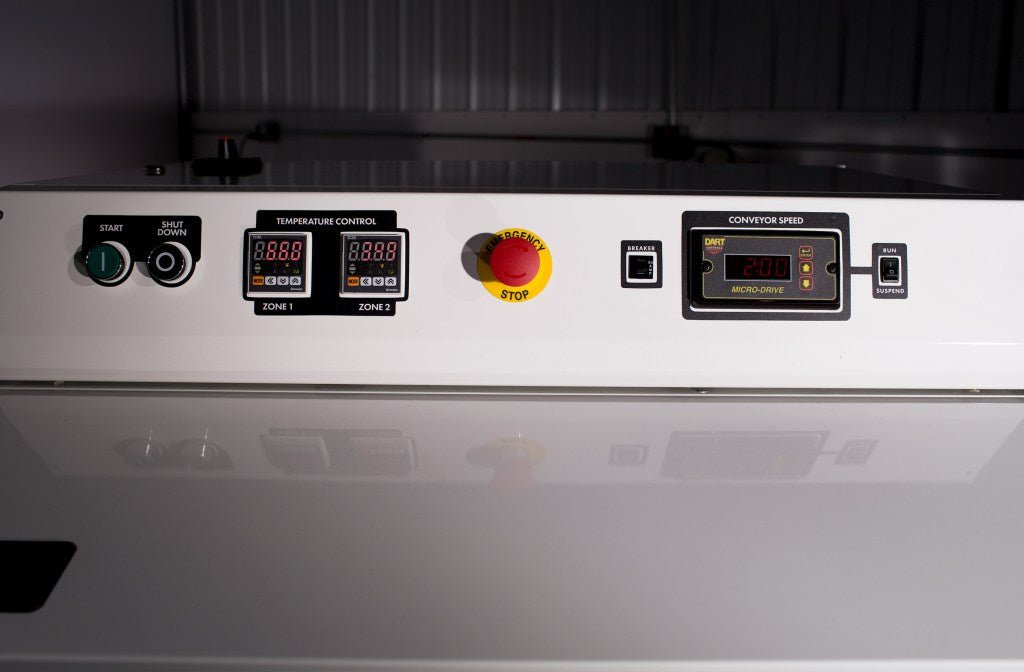

  • Built-in Digital Heat Control
  • Built-in Digital Speed Control
  • Includes TruTrak Belt
  • Auto Shut-off
  • 6’ Chamber
  • 36” & 54” Belt Widths



Specifications

36" Belt Width

Production rates are based on the following: (times may vary based on process)

  Dwell Time Shirts per hour



Plastisol 30s 1440 960

860

860 720
Water-Based 45s 960 640 575 575 480
Direct-To-Garment 130s 330 225 200 200 160


Conveyor Extensions Available in 24” sections

 OVERALL LENGTH 144"
HEATER DIMENSIONS (3) 20”x40”
OVERALL WIDTH 48" HEATER CONTROL Digital•2 Zones
OVERALL HEIGHT 59"
SPEED CONTROL Digital
CHAMBER LENGTH 72" DWELL TIMES 19s - 330s
BELT WIDTH 36" APPRX SHIP WEIGHT 1000lbs
FORCED AIR YES
HEATER WATTAGE 240v•1P•17,280w•72A 240v•3P•17,280w•42A

 Unit design and data are subject to change at the discretion of BBC Industries, Inc.



54" Belt Width

Production rates are based on the following: (times may vary based on process)

  Dwell Time Shirts per hour



Plastisol 30s 1900
1440

1300

865 720
Water-Based 45s 1280 960 860 575 480
Direct-To-Garment 130s 450 330 300 200 165


Conveyor Extensions Available in 24” sections

 OVERALL LENGTH 144"
HEATER DIMENSIONS (3) 20”x58”
OVERALL WIDTH 66" HEATER CONTROL Digital•2 Zones
OVERALL HEIGHT 59"
SPEED CONTROL Digital
CHAMBER LENGTH 72" DWELL TIMES 19s - 330s
BELT WIDTH 54" APPRX SHIP WEIGHT 1250lbs
FORCED AIR YES
HEATER WATTAGE 240v•3P•23,919w•58A

 Unit design and data are subject to change at the discretion of BBC Industries, Inc.
