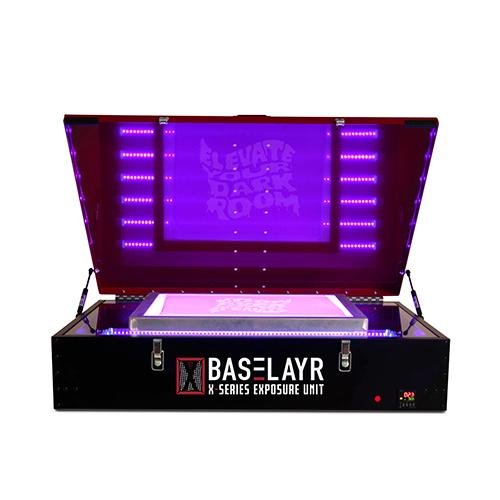

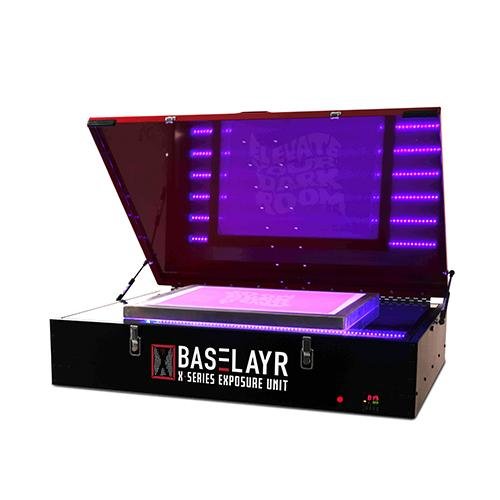

Baselayr X series LED 25" x 36" Digital Aluminum Exposure Unit w/ Comp. Lid

SKU BLX2536EXP
Original price $1,479.95 - Original price $1,479.95
Original price
$1,479.95
$1,479.95 - $1,479.95
Current price $1,479.95

Shipping cost

  • $280.00

The X2536 uses high output LED bulbs manufactured for exposure units. These LED bulbs output an optimal UV wavelength, which can be used on all types of emulsions. Printers can rest assured that the LED bulbs will last more than 10,000 hours, which is better for the printer and the environment.

The optically clear, tempered glass in the X2536 lets more than 99% of the UV light through without disruption to the wavelength. The exposure unit will burn screens faster compared to traditional UV bulbs. With a dialed-in darkroom and strong performance of coating screens, printers can push more detail resolution compared to traditional UV bulbs. The X-Series are designed to perform.

Everything starts and ends in the darkroom. Build a solid foundation from the screen up with the X2536 today.

FEATURES:

  • Thick, aluminum compression lid with center stiffening rib
  • LED 405nm bulb technology
  • Durable, powder-coated, steel construction
  • IEC power cord port with an easy-to-access on/off switch
  • Gas shocks hold the lid in open position 80LB shock
  • Optically clear, strong, tempered glass
  • Includes a three-inch foam pad for easy, on-contact exposing
  • Three-year limited warranty (please refer to the manual for more details)
  • Made in the USA

BENEFITS:

  • LED light sources exposes screens quickly
  • LED enhances the amount/levels of details captured
  • LED creates a harder, more durable stencil, providing better on-press longevity
  • Low power consumption

INCLUDED:

  • 21 Step Exposure Calculator ($19.99 value)

PRODUCT SPECS:

  • Unit dimensions: 27”(W) x 40”(L) x 9”(H)
  • Optical clear glass: 25” x 36 ⅜”
  • Max OD frame size: 25" x 36"
  • 7 T8 LED 405nm tube bulbs designed for screen exposure
  • UV wattage: 280 watts
  • Voltage: 115v (standard household current)
  • On/off functionality
  • Standard 110v 3-prong plug
  • Shipping dimensions: 40”(W) x 44”(L) x 20”(H)
  • Ship Weight: 120 lbs

PRODUCT DATA SHEETS:

X2536 Manual
