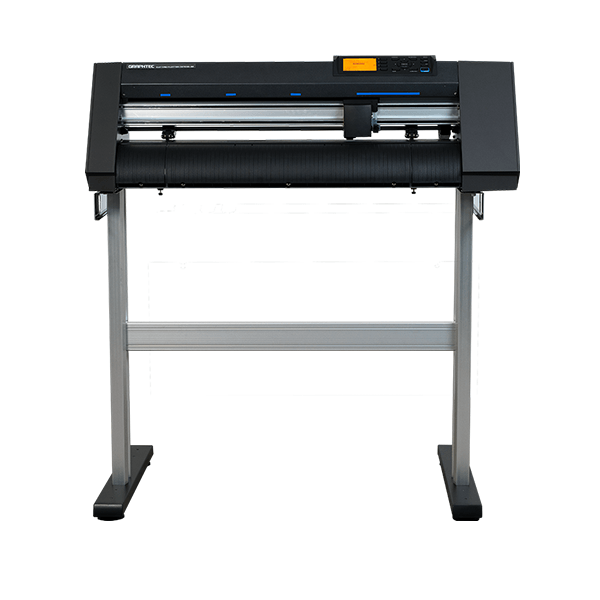

Graphtec Ce7000-60 24" Vinyl Plotter With Stand

SKU CE7000-24
Original price $1,895.00 - Original price $1,895.00
Original price
$1,895.00
$1,895.00 - $1,895.00
Current price $1,895.00
Size: 24"

Introducing the NEW CE7000 series cutting plotter. The Graphtec CE7000 is the perfect solution for SIGNAGE Graphics • PRINT & CUT GraphicsGarment DecorationAutomotive Markets and many more….

GRAPHTEC CE7000 FEATURES:

• New 8.0 ARMS for Fast and Accurate Print & Cut Applications with XY Compensation Feature
• Data Link Bar Code Feature for Maximum Productivity
• NEW Easy-to-use USB Thumb Drive Connectivity - NO Computer Needed!

The New CE7000 Series boasts our Popular Cutting Channel to allow easy perforated cut or through cut operations. The NEW CE7000 Series comes complete with our full complement of Graphtec Software along with our NEWLY ADDED Ethernet Connectivity. Software includes Cutting Master 4 plug-in for Adobe & Corel Users and our popular Graphtec Pro Studio software for design & cut graphics. The CE7000 series works with both PC and MAC platforms, or use the handy new USB Thumb Drive Port if needed.

Graphtec makes everything EASY

Item CE7000-40 CE7000-60 CE7000-130
Configuration Grit roller with digital servo drive system
Maximum cutting area (W x L)

15" x 164'

24" x 164'

50" x 164'

Cutting area of guaranteed accuracy(W x L)
(when using the basket)

14" x 79"

23" x 79"

50" x 79"

Mountable media width 2"
19"
2"
30"
2"
54"
Number of push rollers 2 rollers 4 rollers
Maximum cutting speed 24"/s, in all directions 36"/s, at 45º direction 39"/s, at 45º direction
Maximum acceleration 69.6' (21.2 m/s2), at 45º direction 45.60' (13.9 m/s2), at 45º direction
Maximum cutting force 4.41 N (450 gf) in 38 steps
Minimum character size Approx. 5 mm (0.016") alphanumeric (varies depending on character font and type of media)
Programmable resolution GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm
Repeat-ability Max. 0.1 mm in plot up to 2 m (*1)
Mountable number of tools 1 tool
Blade type Supersteel
Pen type Oil-based ballpoint, Water-based fiber-tip pen
Media type Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film,
up to 25 mil (.63mm) cutting Graphtec Rhinestone Stencil material GRS1510-m
Interface USB 2.0 (Full Speed), Ethernet
10BASE-T/100BASE-TX
Buffer memory 2 MB
Command sets GP-GL / HP-GL™ (Set by command or auto-detect)
Display Graphic type LCD with back-light (240dots x 128dots), supports 10 languages
Registration mark sensing system Marks are scanned by an optical sensor (ARMS8.0), Segment area and Multiple marks compensation,
4-points axis alignment, Auto mark detect
Alignment accuracy Maximum 0.3 mm with printed image (when reading registration marks specified by this machine)
Power source 100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz
Power consumption 120 VA
Operating environment 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
Guaranteed accuracy environment 16 to 32 ºC, 35 to 70 % R.H. (non-condensing)
External dimensions (W x D x H)
(with Basket)

Approx. 30.4" x 11.5" x 12.3"

Approx. 39.6" x 23" x 43"

(39.6" x 36.9" x 43")

Approx. 67" x 32" x 48"

(67" x 45.2" x 48")

Weight (Approx.)
(with Basket)
27.7 lbs (13kg)

51 lbs (23 kg)
55.6 lbs (25.2 kg)

112.4 lbs (51 kg)
121 lbs (54.9 kg)
Compatible OS (*2) Windows 10 / 8.1 / 7
Mac OSX 10.6 - 10.11 - 10.12 - 10.15
Included software Cutting Master 4, Graphtec Pro Studio (for Windows), Graphtec Studio (for Mac),
Windows driver
Compatibility Standards Safety PSE, UL/cUL, CE mark
EMC VCCI Class A, FCC Class A, CE mark
