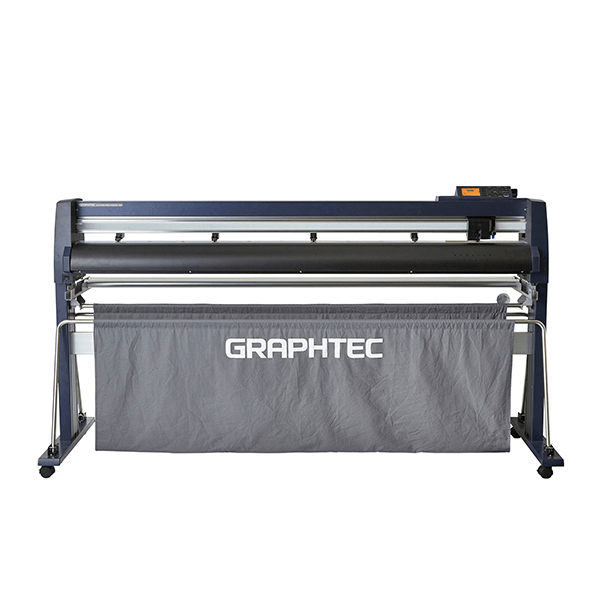

Model
|
FC9000-75
|
FC9000-100
|
FC9000-140
|
FC9000-160
|
|
CPU
|
32-bit CPU
|
|
Configuration
|
Grit rolling plotter
|
|
Drive method
|
Digital servo drive
|
|
Max. cutting speed
|
58.5 inches per second (45 degree direction) 41.3 (axis direction)
|
|
Cutting force
|
Max. 600 gf in 48 steps
|
|
Axial acceleration
|
Max. 39.2 m/s2 (4 G) in 8 steps
|
|
Max. cutting area
(W x L) (*1)
|
30 in x 164 ft
762 mm x 50 m
|
42 in x 164 ft
1067 mm x 50 m
|
54 in x 164 ft
1372 mm x 50 m
|
64 in x 164 ft
1626 mm x 50 m
|
|
Guaranteed precision cutting area (*1)
|
29.21 in x 50 ft
|
41 in x 32 ft,
35.2 in x 50 ft
|
53 in x 32 ft,
35.2 in x 50 ft
|
63 in x 32 ft,
35.2 in x 50 ft
|
|
Mountable media width(*2)
|
Min. 1.96 in
Max. 36.22 in
|
Min. 1.96 in
Max. 48.19 in
|
Min. 1.96 in
Max. 60.20 in
|
Min. 1.96 in
Max. 72.83 in
|
|
Max. cross cut width
|
30 in
|
42 in
|
54 in
|
64 in
|
|
Number of push rollers
|
2 rollers
|
3 rollers
|
4 rollers
|
4 rollers
|
|
Compatible roll media diameter
|
Min. 2.99 in Max 7.8 in. (Max diameter is 6.29 in when included flange is installed)
|
|
Mechanical resolution
|
0.005 mm
|
|
Programmable resolution
|
GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm
|
|
Distance accuracy (*2)
|
Max. 0.1 mm or 0.1 % of plotted length
|
|
Repeatability (*2)
|
Max. 0.1 mm in plot up to 2 m (excluding the expansion and contraction of the media)
|
|
Minimum character size
|
Approx. 5 mm alphanumeric (varies depending on character font and media)
|
|
Mountable number of tools
|
1 tool (cutting blade, plotting pen or pouncing tool) in standard;
2 tools (cutting blade and plotting pen) when second penholder (optional) is installed
|
|
Blade types
|
Supersteel (0.9 mm or 1.5 mm diameter)
|
|
Pen types
|
Water-based fiber-tip pen, Oil-based ballpoint pen
|
|
Pouncing tool type
|
Steel pin 1.2 mm diameter, required optional pouncing tool (PPA 33-TP12)
|
|
Media types (*3)
|
Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick,
Sandblast resist rubber up to 1 mm thick
|
|
Compatible paper for pouncing
|
Regular paper from 0.06 to 0.13 mm thick
|
|
Cross-cutter
|
Built into the tool carriage
|
|
Perforation cutting
|
Supported (performed by force control)
|
|
Interface
|
USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX
|
|
Buffer memory
|
2 MB
|
|
Command sets
|
GP-GL / HP-GL™ emulation (Set by menu or command, and selects from GP-GL, HP-GL™, or Auto select)
|
|
Condition settings
|
Dual configuration (save two (2) user settings with eight (8) separate condition settings per user)
|
|
Display
|
Graphic type LCD (3.7-inch, backlight)
|
|
Power source
|
100 V to 240 V AC, 50 / 60 Hz
|
|
Power consumption
|
AC100-240 V, 50/60 Hz
|
|
Operating environment
|
50 to 95 ºF, 35 to 75 % R.H. (non-condensing)
|
|
Guaranteed accuracy environment
|
60 to 89 ºF, 35 to 70 % R.H. (non-condensing)
|
|
External dimensions
(W x D x H)
|
Approx. 50" x 28" x 48"
(1270 x 711 x 1219 mm)
|
Approx. 61.8" x 28" x 48"
(1570 x 715 x 1219 mm)
|
Approx. 73.6" x 28" x 48"
(1870 x 711 x 1219 mm)
|
Approx. 84" x 28" x 48"
(2130 x 711 x 1219 mm)
|
|
Weight (*8)
|
108 lbs.
|
123 lbs.
|
141 lbs.
178 lbs. /w take-up
|
154 lbs.
195 lbs. /w take-up
|
|
Included software (*6)
|
Windows Driver, Graphtec Pro Studio (*5),
Cutting Master 4, Graphtec Studio for Mac
|
|
Compatible OS (*5)
|
Windows 10 / 8.1 / 7
Mac OS X 10.6 to 10.11
Mac OS 10.12 to 1.14
Graphtec Studio: 10.6 to 10.14
Cutting Master 4: 10.7-10.14
|
|
Safety
|
PSE, UL/cUL, CE mark)
|
|
EMC
|
VCCI Class A, FCC Class A, CE mark
|
