Mimaki TxF300 Series
Couldn't load pickup availability
Product Details
Product Details

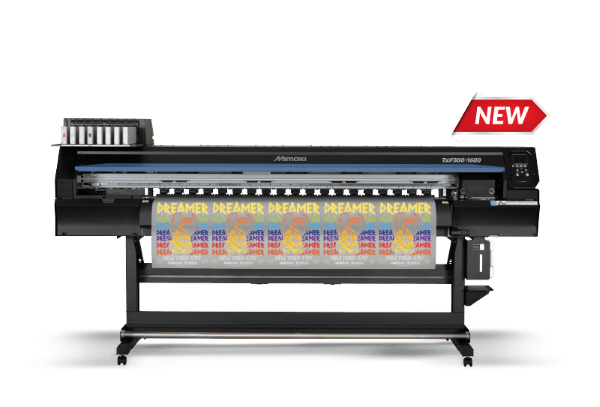

Mimaki TxF300-1600 DTF (Direct-to-Film) Printer
The Mimaki TxF300-1600 takes Direct-to-Film printing to the next level with powerful wide-format performance and the reliability Mimaki is known for. Designed to handle media widths up to 63 inches, this high-production DTF printer delivers exceptional output for shops looking to scale their apparel and textile printing without increasing system complexity.
Built on the proven technology of the industry-leading TxF300-75, the TxF300-1600 expands capacity and productivity while maintaining a single-printhead design—reducing maintenance, improving reliability, and lowering operating costs. The result is faster production, cleaner prints, and consistent results even on demanding white-ink applications.
Mimaki’s advanced ink circulation system continuously keeps white ink properly mixed, preventing pigment settling and ensuring smooth, clog-free operation. Combined with a three-way intelligent heater, ink dries quickly and evenly, allowing for sharper detail, better adhesion, and faster turnaround times.
Powered by Mimaki PHT50 inks, which are OEKO-TEX® ECO PASSPORT certified, the TxF300-1600 produces prints that are safe for skin contact, making it ideal for apparel, fashion, and promotional garments.
With print speeds of up to 108 square feet per hour and a wider media format than previous models, the TxF300-1600 delivers the speed, quality, and reliability needed for professional-level DTF production—backed by over 50 years of Mimaki engineering innovation.
Specifications
| Printhead |
Dual On-demand piezo heads |
| Print resolution |
720dpi, 1,440dpi |
| Maximum Print Width |
TxF300-75: 800mm (31.5″ in) TxF300-1600: 1610 mm (63.4 in) |
| Maximum media width |
TxF300-75: 810mm (31.9 in) TxF300-1600: 1620 mm (63.8 in)
|
| Maximum Media Thickness |
up to 0.04″ (1 mm) |
| Maximum Media Weight |
Up to 99.2 pounds (45 kg) |
| Ink Type |
Heat transfer pigment ink PHT50 (C,M,Y,K,W) |
| Interface |
Ethernet 1000 BASE-T / USB2.0 |
| Power Supply |
Main unit: Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz x 1 |
| Power Consumption |
Txf300-75: 100V system: 1.44kW, 200V system: 1.92kW TxF300-1600: AC100-120V, 1300W or less, AC200-240V, 1750W or less x1 |
| Operational Environment |
Temperature: 68-86 F (20° – 30°C) |
| Dimensions (W × D × H) |
TxF300-75: 1,965mm×700mm×1,392mm (77.4 x 27.6 x 54.8 in) |
| Weight |
126kg (277.8 lb) |
| Certifications |
VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS),CB, REACH, Energy Star, RCM, KC |
Inks
| Thermal transfer pigment ink (PHT50) | Cyan | Magenta | Yellow | Black | White |
|---|---|---|---|---|---|
| 600ml | PHT50-C-60 | PHT50-M-60 | PHT50-Y-60 | PHT50-K-60 | |
| 500ml | PHT50-W-50 |
