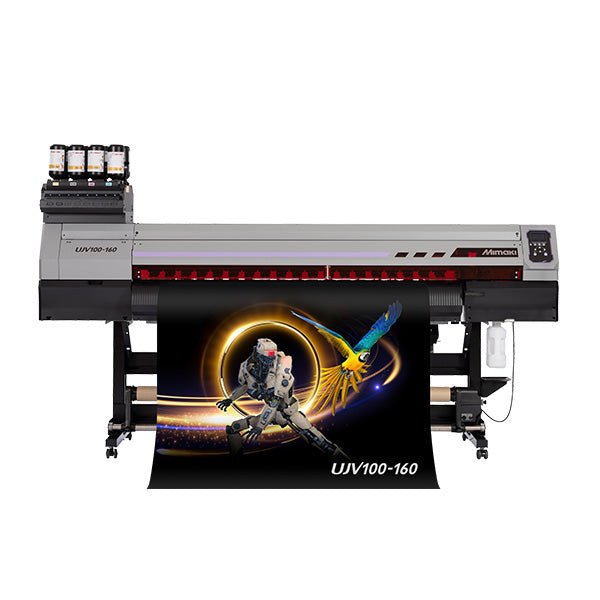

Mimaki UJV100-160 UV Printer
Professional-Grade Roll-to-Roll Printing with Instant Curing and Unmatched Versatility
The UV Advantage That Keeps You Moving
In a fast-paced print environment, time is everything. The Mimaki UJV100-160 UV Printer eliminates the need for drying time with LED-UV technology, giving you immediate print-to-finish capabilities without sacrificing color accuracy or material versatility. Designed for signage professionals, print shops, packaging mockups, and retail display producers, this 64” roll-to-roll UV printer brings speed, media flexibility, and special ink effects to your production floor—all at an accessible price point.
Whether you’re running tight client deadlines or switching between different types of materials multiple times a day, the UJV100-160 is built to streamline your workflow and deliver superior print quality every time.
Key Features and Benefits
Instant-Dry UV Printing
Using LED-UV curing technology, prints come off the UJV100-160 completely dry and ready for finishing, lamination, or installation—no more waiting hours for off-gassing or ink curing.
Wide Media Compatibility
Supports a broad range of roll materials, including PET film, vinyl, tarpaulin, paper, canvas, and even uncoated substrates—ideal for sign shops and display graphics that require media flexibility.
Dual Printheads for High-Speed Output
Equipped with two staggered piezo printheads, this printer achieves production speeds of up to 247 ft²/hr in 4-color draft mode and maintains color-rich results even at higher speeds.
White and Clear Ink Options
Expand your creative options by adding White Ink for printing on transparent or colored substrates and Clear Ink for gloss effects, texture, and spot varnish applications.
Greenguard Gold Certified Inks
The UJV100-160 uses LUS-190 UV inks that are certified for indoor use in sensitive environments like schools and hospitals, making it a safe choice for indoor signage and displays.
Built-In Print Quality Safeguards
Features like Nozzle Check Unit (NCU) and Nozzle Recovery System (NRS) automatically detect and resolve nozzle failures to ensure consistent output and prevent unnecessary downtime.
Advanced RIP Workflow with RasterLink7
Mimaki’s included RIP software, RasterLink7, speeds up PDF processing, improves file compatibility, and gives you tools like tiling, nesting, variable data printing, and layout preview for efficient production control.
Use Cases and Application Tips
The Mimaki UJV100-160 is especially effective in industries and applications where media variety, fast delivery, and premium print results are essential. Some ideal use cases include:
-
Window Graphics – White ink enables vibrant window clings and layered graphics on transparent film.
-
Backlit Signage – Vivid colors with instant dry output make this printer a top choice for PET film lightboxes.
-
Retail Point-of-Sale Displays – Print directly to various substrates with precision and gloss accents for upscale branding.
-
Short-Run Labels and Prototypes – Use clear ink for texture or varnish-like effects on product mockups or premium packaging.
-
Interior Wall Graphics and Décor – Print directly onto uncoated wallpaper or fabric for safe, odorless indoor applications.
Tip: For added impact, combine white and clear ink layers in a single job to create multi-dimensional effects, perfect for high-end branding or packaging displays.
Technical Specifications
| Specification |
UJV100‑160 Details |
| Printer Type |
LED-UV roll-to-roll inkjet with two staggered on‑demand piezo printheads |
| Print Resolutions |
360, 720, 900, 1200 dpi |
| Max Print Width |
1,610 mm (63.4") |
| Max Media Width |
1,620 mm (63.8") |
| Max Print Speed |
23 m²/h (247 ft²/h) Draft; 18.6 m²/h High-Speed |
| Ink Type / Colors |
LUS‑170 / LUS‑190 / LUS‑210 UV-curable in C, M, Y, K, White, Clear |
| Ink Package Size |
1 L bottles |
| Max Media Thickness |
Up to 1.0 mm |
| Max Roll Weight / Diameter |
Up to 45 kg (99 lb); ≤ Ø 250 mm core |
| Interfaces |
USB 2.0 / Ethernet 1000BASE‑T |
| Power Supply |
Single-phase AC 100‑120 V / 200‑240 V ±10%, 50/60 Hz ±1 Hz |
| Operating Environment |
20–30 °C, 35–65% Rh non-condensing |
| Certifications |
VCCI A, FCC A, ETL/UL62368‑1, CE EMC/Low‑Voltage, RoHS, CB, REACH, ENERGY STAR®, EAC, RCM |
| Dimensions (W×D×H) |
2,775 × 700 × 1,475 mm (109.3 × 27.6 × 58.1") |
| Weight |
167 kg (368 lb) |
Customer FAQ
Is this compatible with my current workflow or RIP software?
Yes. The UJV100-160 includes Mimaki's RasterLink7 RIP, which supports most major file formats and integrates easily into existing workflows via USB or Ethernet.
How long does it take to ship?
Standard lead times are 3–5 business days depending on your location. Expedited freight and white-glove delivery options are available upon request.
What technical support is available?
As an authorized Mimaki distributor, McLogan provides installation assistance, training, and access to certified support technicians for hardware or software troubleshooting.
Does the printer come with a warranty?
Yes. Mimaki offers a one-year standard manufacturer warranty. Additional extended warranty plans and service agreements are available.
Is financing available?
Absolutely. We offer flexible financing options through our partners to make it easier to get this printer in your shop and working for you. Visit our Financing Page to apply.
Why Choose the Mimaki UJV100-160?
The UJV100-160 offers an exceptional balance of performance, price, and production efficiency, making it the ideal solution for shops that need fast, flexible printing without compromising quality. Its ability to print instantly-dry graphics across various media types with additional ink options (White and Clear) sets it apart from other roll-to-roll printers in its class.
Not only does it improve speed and eliminate bottlenecks related to dry time, but it also opens new creative and profitable applications that were previously out of reach with traditional eco-solvent systems.
This printer is especially valuable for:
-
Print shops transitioning to UV without major capital investment
-
Graphic installers who need prints ready for immediate installation
-
Packaging designers and brands producing custom prototypes in-house
-
Retail and event graphics teams with rapid design-change needs
Summary
-
Instant-dry UV printing lets you finish jobs faster
-
White and clear ink expand your creative output
-
Supports a wide range of media from coated to uncoated rolls
-
Nozzle recovery and check systems minimize downtime
-
Environmentally certified inks for safe indoor use
-
High-resolution output up to 1200 dpi for professional results
-
Includes RasterLink7 software for full production control
Take your print business to the next level with the Mimaki UJV100-160—available now at McLogan Supply. Experience the benefits of LED-UV technology, increase your productivity, and unlock new revenue with a machine built for the demands of modern print production.
