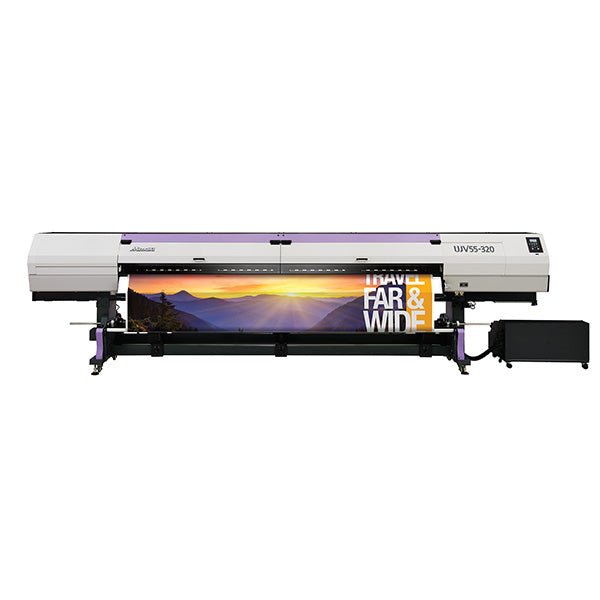

Mimaki UJV55-320 Superwide UV Printer
High-Impact, 126-Inch UV Roll-to-Roll Production for Signage, Displays, and Backlit Applications
Introduction: Go Bigger, Brighter, and Bolder with UV
When your customers need graphics that stand out—indoors or outdoors, day or night—you need a printer that can deliver wide-format results without sacrificing speed or quality. The Mimaki UJV55-320 is a 126-inch (3.2-meter) superwide UV roll-to-roll printer built for high-impact applications like backlit signs, retail banners, and tradeshow displays.
Ideal for sign shops, event producers, and large-format print providers, the UJV55-320 gives you instant-dry output with vibrant UV color, advanced ink configuration flexibility, and the option to print dual rolls simultaneously—all at a highly competitive production speed. Whether you’re tackling large campaign graphics or need white ink and backlit clarity, this printer helps you maximize versatility, turnaround time, and visual quality.
Key Features & Benefits
Extra-Wide 126" Print Capability
Print up to 3.2 meters wide in one pass—ideal for extra-large indoor/outdoor banners, backlit signage, and event graphics.
Dual-Roll Simultaneous Printing
Save time and increase throughput by printing on two separate 60” media rolls simultaneously. Perfect for producing volume graphics with tight deadlines.
Instant Dry with LED-UV Technology
Cured instantly with LED-UV light, prints are dry the moment they leave the printer. No need to wait for off-gassing or drying—laminate or ship immediately.
High-Speed Production at Multiple Quality Levels
Achieve production speeds up to 1,184 ft²/hr (2-pass draft mode), 430 ft²/hr (6-pass standard mode), and 215 ft²/hr (12-pass high-quality mode) depending on your quality needs.
White Ink for Backlit and Transparent Media
Use white ink as a base layer or highlight layer on transparent and colored media—essential for premium backlit film displays and layered print effects.
Seven Ink Configurations Available
Choose from multiple setups, including 4-color, 6-color, or configurations with white, light cyan, and light magenta to suit your application needs.
UV Inks with Long-Term Durability
Mimaki’s LUS-120 UV-curable inks offer high flexibility and excellent adhesion on a wide variety of media, including PVC, PET, fabric, canvas, and banner materials.
Advanced RIP Software with RasterLink6 Plus
This bundled RIP software supports 3-layer printing (e.g., color-white-color), variable data printing, tiling, nesting, and layout management for maximum efficiency.
External 3L Bulk Ink Reservoirs
Supports high-volume operation and minimizes interruptions with an external bulk ink system compatible with 1-liter ink bottles.
Use Cases & Application Tips
The UJV55-320 is engineered for print professionals working on high-visibility, high-volume graphics. Its versatility in media compatibility and instant-dry UV output makes it ideal for:
-
Backlit Displays and Lightboxes – White ink plus high-density color delivers rich visuals with true black depth and clarity when illuminated.
-
Event and Trade Show Graphics – Quick turnaround banners and displays with zero wait time between printing and finishing.
-
Retail POP Graphics – Create dual-roll graphics for window clings, posters, and store signage with tight production windows.
-
Indoor/Outdoor Banners – UV durability without the need for lamination; great for hanging signs or billboards.
-
Wallpaper and Décor – Print on uncoated substrates or fabrics for fast-drying, eco-safe interior decor.
Pro Tip: Use the 3-layer print function (color/white/color) for window graphics that are readable from both sides, or to enhance color vibrancy in backlit displays.
Technical Specifications
| Specification |
UJV55-320 Details |
| Print Technology |
UV-curable LED inkjet with dual staggered printheads |
| Printhead Type |
On-demand piezo, 4 staggered lines |
| Max Print Width |
3,200 mm (126") |
| Max Media Width |
3,250 mm (127.9") |
| Max Print Speed |
1,184 ft²/hr (2-pass), 430 ft²/hr (6-pass), 215 ft²/hr (12-pass) |
| Print Resolutions |
300, 600, 900, 1,200 dpi |
| Ink Type / Colors |
LUS-120 UV-curable inks (C, M, Y, K, Lc, Lm, White) |
| Ink Bottle Size |
1 Liter bottles, supported with 3L external reservoirs |
| Media Types Supported |
PVC, banner, tarpaulin, PET, paper, cloth, film, mesh |
| Max Media Thickness |
1.0 mm |
| Max Media Weight |
Up to 100 kg (220.5 lbs) |
| Roll Holder Load Capacity |
18 kg (39.7 lbs) per roll for dual-roll printing |
| Dual Roll Capability |
Yes – Simultaneous printing on two 60" media rolls |
| Curing System |
Dual LED-UV curing lamps with adjustable output |
| RIP Software Included |
RasterLink6 Plus |
| Connectivity |
Gigabit Ethernet (1000-BASE T), USB 2.0 |
| Power Supply |
Single Phase AC 200–240V, 50/60Hz, 18A |
| Power Consumption |
4.3 kVA or less |
| Operational Temp/Humidity |
68–86°F (20–30°C), 35–65% RH (non-condensing) |
| Machine Dimensions |
213" W × 39" D × 56" H |
| Machine Weight |
2,006 lbs (920 kg) |
| Certifications |
GREENGUARD Gold, RoHS, CE, ENERGY STAR® |
Customer FAQ
Can I print on mesh or fabric without liner?
Yes. The UJV55-320 is compatible with linerless mesh or fabric thanks to its built-in ink catcher system.
Is white ink included?
White ink is optional, available in select configurations. It’s ideal for transparent, colored, or backlit materials where contrast or layering is required.
What types of RIP software can I use?
The printer comes with RasterLink6 Plus but is also compatible with third-party RIPs like Caldera and Onyx.
Does this printer need special ventilation?
No special ventilation is required. The LED-UV curing system produces minimal VOCs, and the inks are GREENGUARD Gold certified for indoor safety.
What kind of technical support is offered?
McLogan provides expert support, including installation, training, and ongoing technical assistance as an authorized Mimaki distributor.
Is financing available?
Yes. Flexible financing plans are available to make investing in your print business easier. Visit our financing page to learn more.
Why Choose the Mimaki UJV55-320?
The UJV55-320 offers one of the best value propositions in the superwide-format UV category. Combining high print speeds, instant drying, dual-roll capability, and white ink support, it enables both high productivity and high-end creative output without the footprint or cost of more complex hybrid systems.
This printer is especially well-suited for:
-
High-volume commercial printers needing faster turnaround
-
Creative shops wanting to add high-margin backlit and transparent graphics
-
Businesses growing from standard roll printers into true wide-format territory
-
Retail display providers working on nationwide rollouts
With no drying time, broader media support, and flexible ink configurations, the UJV55-320 removes bottlenecks while expanding your creative toolkit.
Summary
-
3.2-meter width for large-format applications
-
Dual-roll printing doubles productivity
-
Instant-dry LED-UV output for same-day delivery
-
Optional white ink for backlit and transparent media
-
Supports mesh, banner, film, and more
-
GREENGUARD-certified inks for safe indoor use
-
Ideal for high-impact signage, POP, and event graphics
Upgrade to the Mimaki UJV55-320 Superwide UV Printer and bring your largest, boldest visions to life—with the speed, color, and clarity your business demands. Now available at McLogan Supply.
