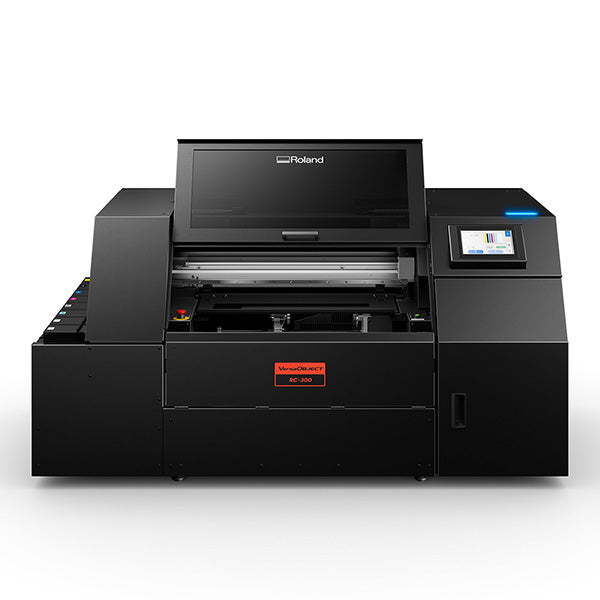

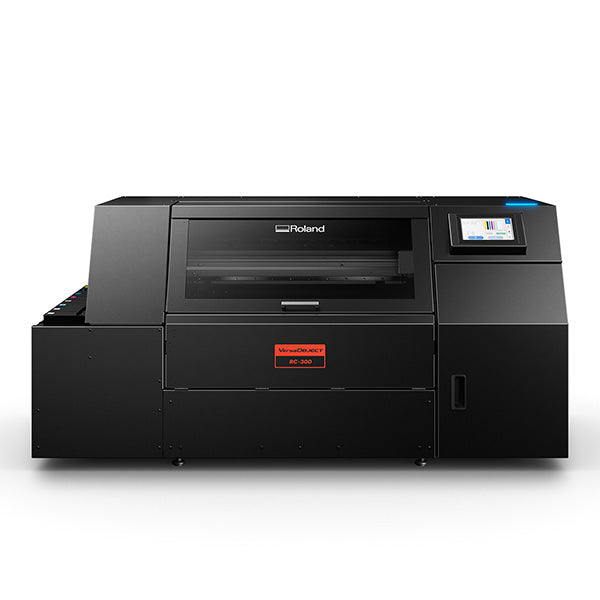

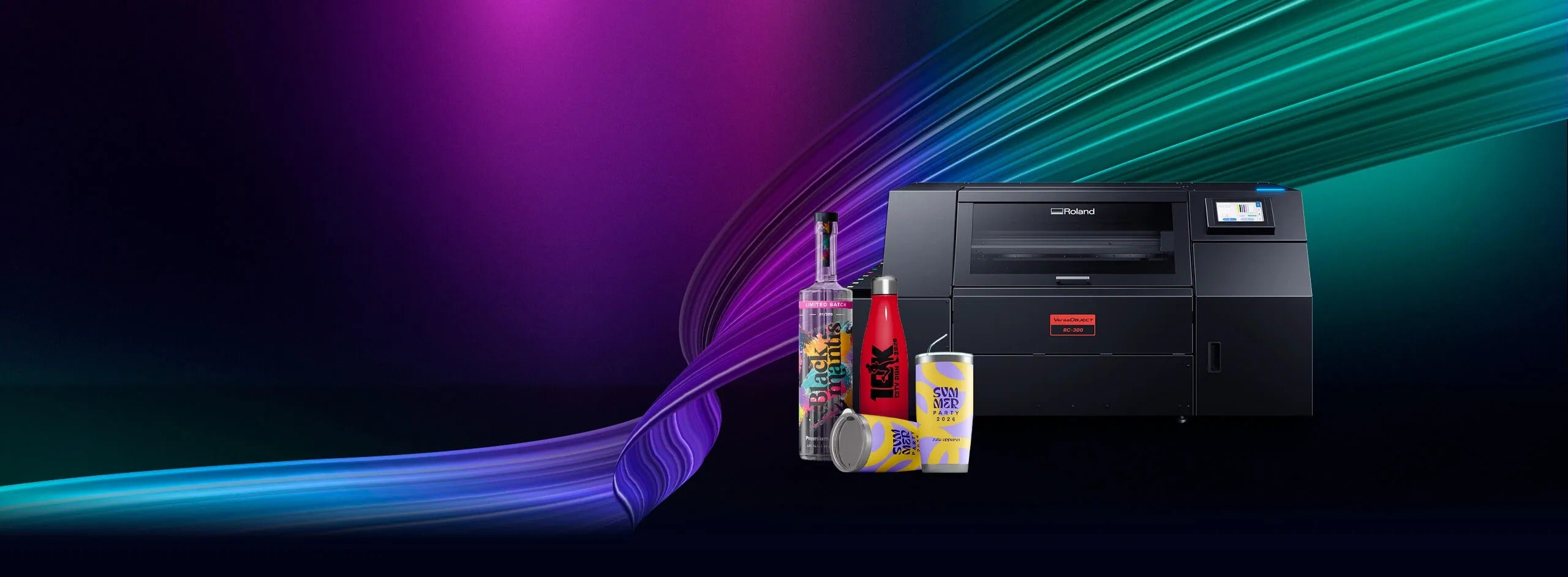

Roland VersaOBJECT RC-300 Series UV Cylindrical Printer

Take cylindrical product decoration to the next level with the Roland VersaOBJECT RC-300 Series UV Cylindrical Printers. Purpose-built for professional and light-industrial direct-to-object production, the RC-300 Series delivers fast, seamless 360° printing on bottles, tumblers, drinkware, cosmetics, containers, and a wide range of cylindrical, tapered, and curved-profile products.

Unlike a flatbed UV printer using a traditional rotary attachment, the RC-300 Series uses dedicated helical printing technology. The object is directly gripped and rotated by a motor-controlled system while graphics are printed continuously around the surface. The result is seamless 360° decoration with increased productivity, precise registration, and greater flexibility across different object shapes.

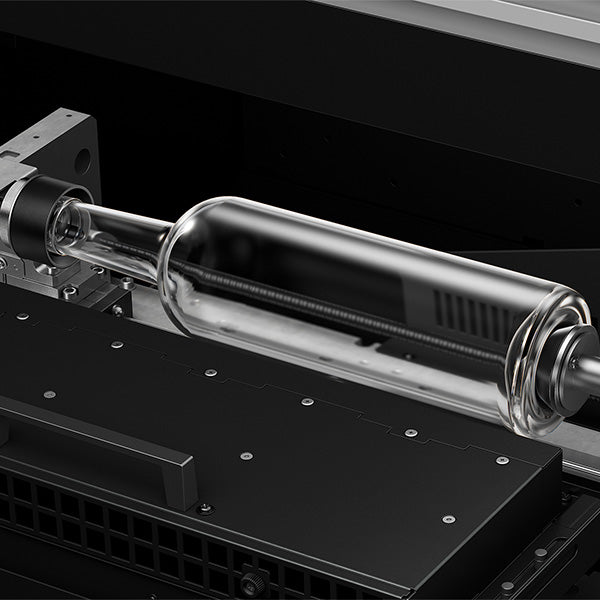

Available in two configurations, the RC-300 provides maximum versatility for solid cylindrical, tapered, convex, and concave products, while the RC-300c is specialized for transparent, translucent, and liquid-filled bottle applications.

Dedicated Helical Printing for Seamless 360° Graphics

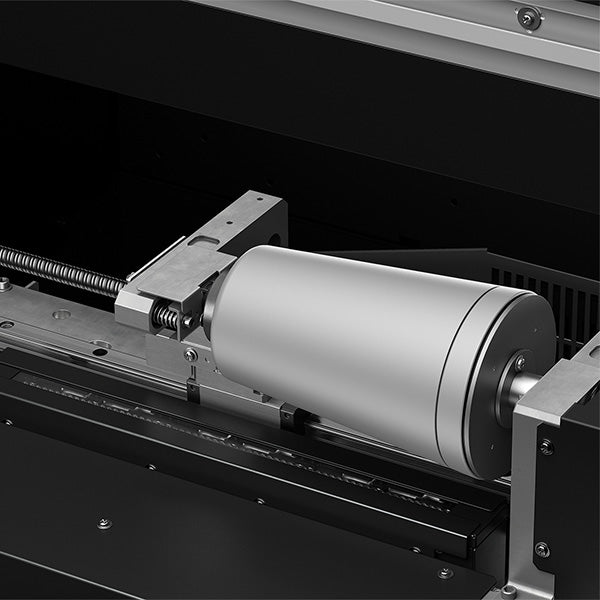

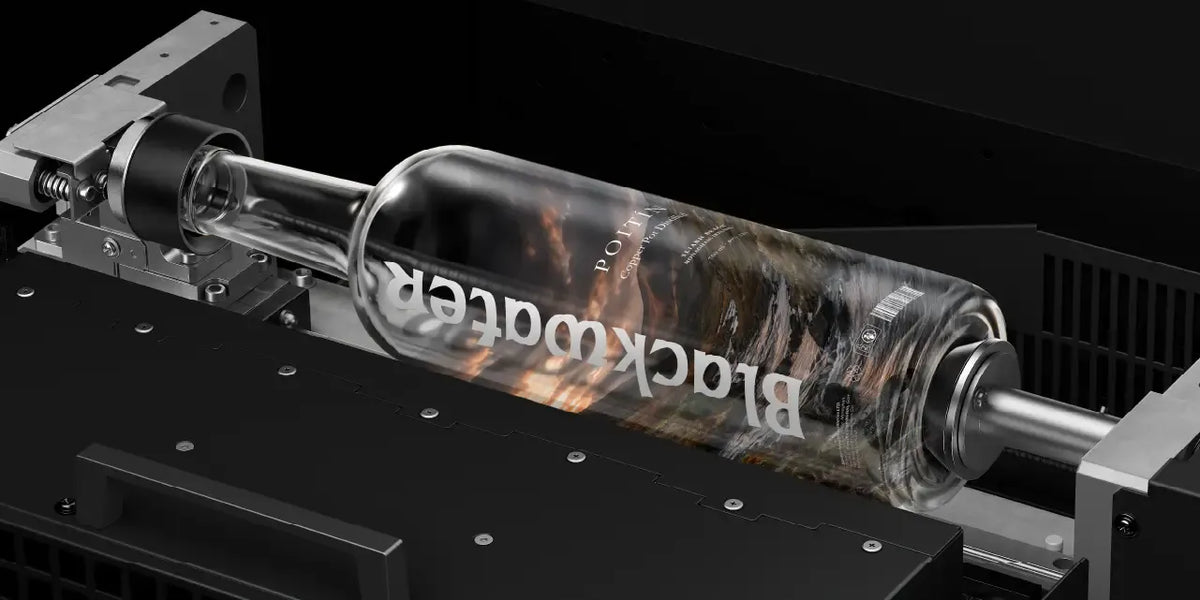

The RC-300 Series replaces the step-by-step movement of conventional rotary printing with a true helical printing system. The printable object is securely gripped and continuously rotated as the graphics are applied in a spiral motion around its surface.

This allows businesses to create seamless 360° graphics without a visible joint while supporting more complex cylindrical profiles than many conventional rotary workflows.

Under Roland DG's specified test conditions, the RC-300 Series can complete a CMYK print in approximately 46 seconds per piece and a White plus CMYK print in approximately 57 seconds per piece. This production-focused workflow makes the system especially well suited for short- and medium-run applications where throughput and repeatability matter.

Two Models for Different Production Needs

Industrial-Grade Printheads Built for Production

The RC-300 Series is equipped with two GEN6 industrial-grade printheads designed for productivity, stability, and reliable jetting of higher-viscosity UV inks used in demanding direct-to-object applications.

Roland DG Smart Jet Control

Not every bottle, tumbler, or container has perfectly straight walls. Roland DG Smart Jet Control uses a built-in laser displacement sensor to continuously measure the distance between the printhead and the object's surface.

The system dynamically adjusts ink jetting to compensate for surface height variations, helping maintain smooth, sharp output on parallel, tapered, convex, and concave objects.

Smart Jet Control supports surface height differences of up to 7 mm, excluding the standard 3 mm printhead gap, giving businesses greater freedom to decorate products that go beyond basic straight-wall cylinders.

Precise Positioning for Pre-Labeled and Pre-Filled Products

An integrated LED pointer mounted on the carriage provides a quick and accurate way to establish the base point and printable area on an object.

This makes it easier to position graphics around existing artwork, labels, or specific areas of a finished product. Businesses can add post-production customization to pre-labeled objects or personalize pre-filled cans and bottles weighing up to 6.6 pounds, depending on the selected model and application.

Built-In Protection for More Confident Production

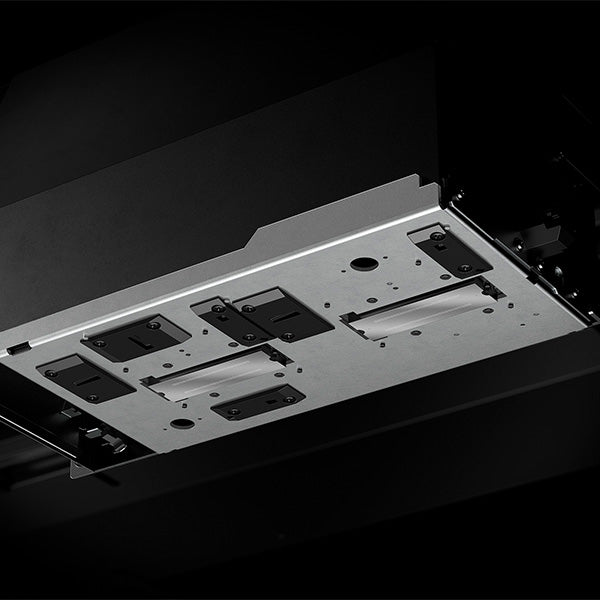

The RC-300 Series also incorporates a Head Gap Detector beneath the carriage. The sensor detects contact with an object to help prevent printhead crashes and printing errors caused by the object or uncured ink contacting the printhead.

Combined with precise positioning, automated maintenance, white ink circulation, and ink agitation, these systems are designed to support stable production and reduce avoidable interruptions.

Durable EUV-H Hard UV Ink

Roland DG's EUV-H hard UV ink is engineered for demanding direct-to-object applications where durability and adhesion are critical.

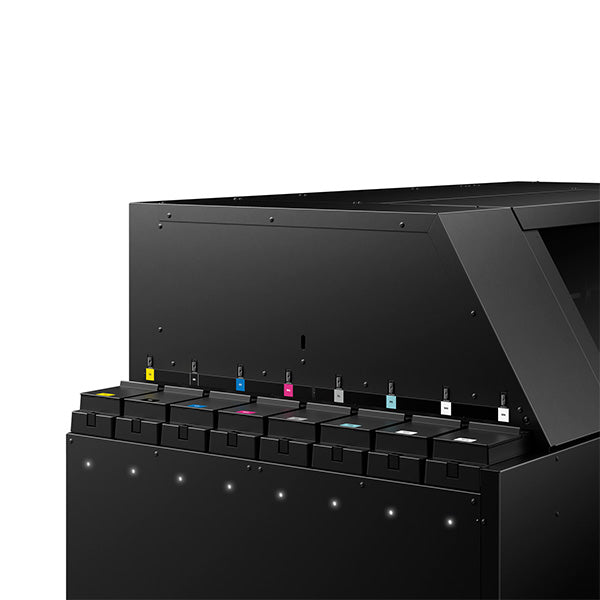

The RC-300 Series uses 1-liter ink bottles and an eight-channel configuration featuring Cyan, Magenta, Yellow, Black, White × 2, Gloss, and Primer. High-opacity White supports vivid graphics on dark, colored, and transparent products, while Gloss can create decorative visual and tactile effects for premium product decoration.

The integrated jettable Primer helps improve adhesion on challenging substrates such as glass, metal, and plastic, allowing businesses to expand into a wider range of finished products.

Create High-Value Finished Products

The RC-300 Series gives print providers, manufacturers, and brand owners a digital alternative for producing personalized products, prototypes, limited editions, seasonal packaging, and short production runs without the setup requirements associated with many traditional decoration methods.

• Tumblers
• Water Bottles
• Drinkware
• Wine Bottles
• Spirits Bottles
• Beverage Containers
• Cosmetics
• Perfume Bottles
• Retail Tubes
• Mailing Tubes
• Candle Holders
• Home Décor
• Custom Packaging
• Promotional Products
• Limited Editions
• Custom Branding

Designed for Short Runs, Customization, and Production

Digital direct-to-object printing allows businesses to change designs without creating new screens or plates for every variation. This makes the RC-300 Series especially valuable for businesses producing a mix of custom, seasonal, personalized, or limited-edition products.

Beverage brands can create event-specific or seasonal bottles. Cosmetic manufacturers can introduce more packaging variations without adding conventional setup for every design. Print service providers can expand their product catalog with high-value cylindrical products while responding quickly to shorter customer runs.

Fast Setup with Up to 50 Stored Object Presets

Operators can store dimensions and setup information for up to 50 different object types directly on the printer.

Once an object has been configured, operators can recall its preset for quick changeovers. The system automatically moves to the appropriate base position and tilt, reducing the need to manually realign commonly printed products.

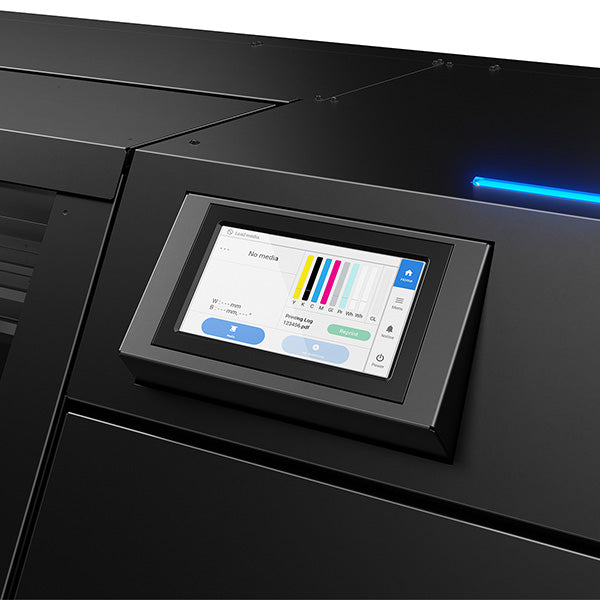

A built-in 7-inch full-color touchscreen provides quick access to printer controls, object setup, and repeat-printing functions. Operators can enter an object's diameter and length directly into the system to simplify setup.

Streamlined Roland DG Workflow

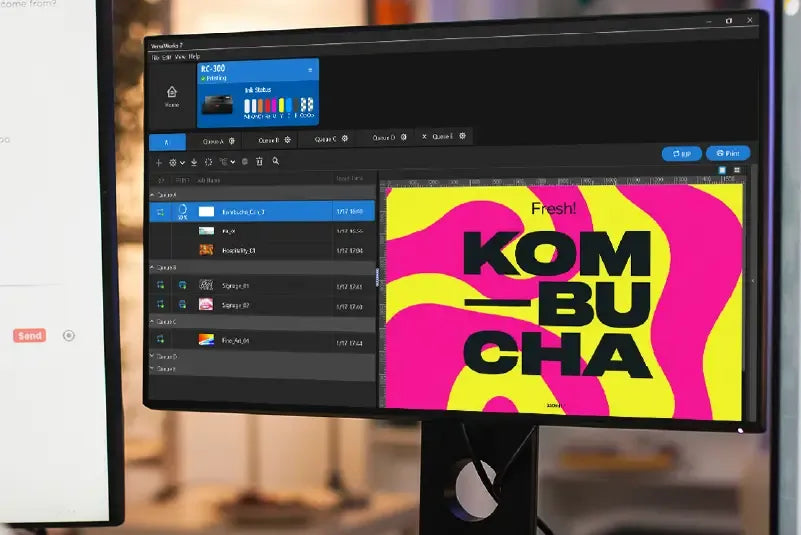

VersaWorks 7 Automatically Handles Tapered Artwork

Roland DG VersaWorks 7 provides dedicated RIP and print management tools for RC-300 Series production.

For tapered objects, VersaWorks takes the object's dimensions and shape into account and performs the required artwork calculations automatically. Designers can continue working on standard square or rectangular artboards while the RIP adjusts the graphic for seamless 360° printing on the selected tapered shape.

Included Fixtures and Production Tools

Each RC-300 Series printer includes tools designed to help businesses begin producing common cylindrical applications immediately.

• Set of 10 fixtures for common open-top cylindrical products
• Specialized bottle-top fixture included with the RC-300c

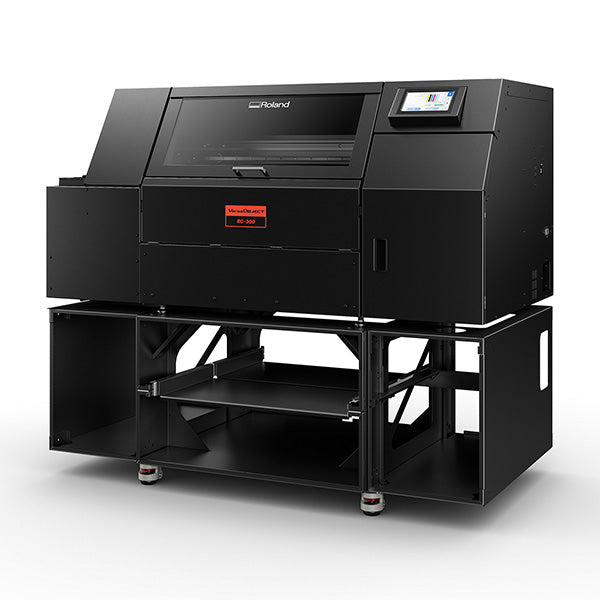

• Bundled printer stand
• UV light meter for checking UV leakage during setup
• VersaWorks 7 RIP and print management software
• Roland DG Connect
• Roland DG Connect Designer

The included UV light meter allows operators to check for UV light leakage when setting up reflective or challenging objects, helping protect the printheads from exposure to reflected UV energy and cured ink.

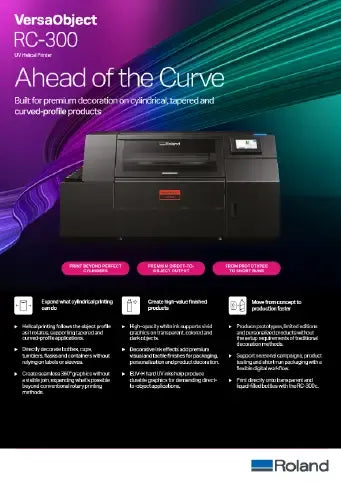

Key RC-300 Series Specifications

A Production Environment Designed for Ease of Use

The RC-300 Series combines professional production capabilities with an approachable operating workflow. Roland DG designed the system so both experienced print operators and businesses new to digital direct-to-object printing can quickly set up jobs and produce consistent output.

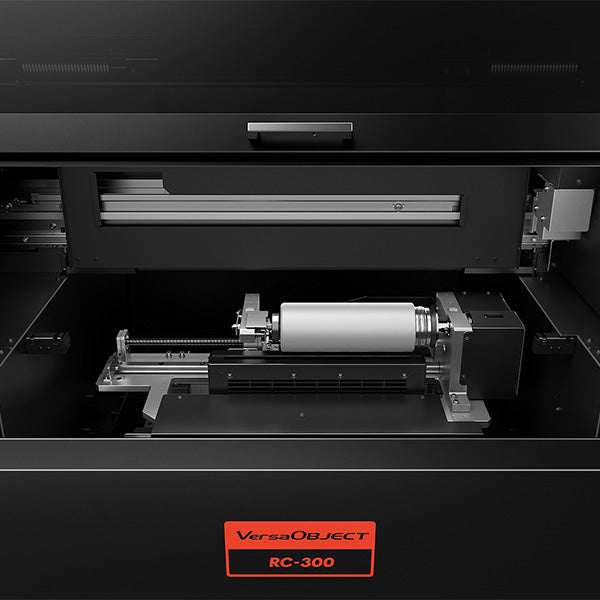

The printer operates on standard 100-240V single-phase power and features a fully enclosed printing area with an easy-access sliding door. Its integrated maintenance functions, printhead protection technology, and connected software tools help simplify day-to-day operation and support greater uptime.

Is the Roland VersaOBJECT RC-300 Series Right for Your Business?

The RC-300 Series is built for businesses that want a dedicated cylindrical printing system rather than adapting a general-purpose flatbed printer with a rotary attachment.

For print service providers, the RC-300 opens opportunities to add premium drinkware, branded bottles, promotional products, and other high-value cylindrical applications to an existing product lineup.

For wineries, distilleries, beverage brands, cosmetic companies, and manufacturers, the RC-300c provides a specialized path to direct decoration of clear, translucent, pre-labeled, and liquid-filled products.

Whether you're producing prototypes, personalized products, seasonal releases, limited editions, or repeat production runs, the VersaOBJECT RC-300 Series combines Roland DG print technology with the productivity and repeatability required to move cylindrical decoration into a streamlined digital workflow.
