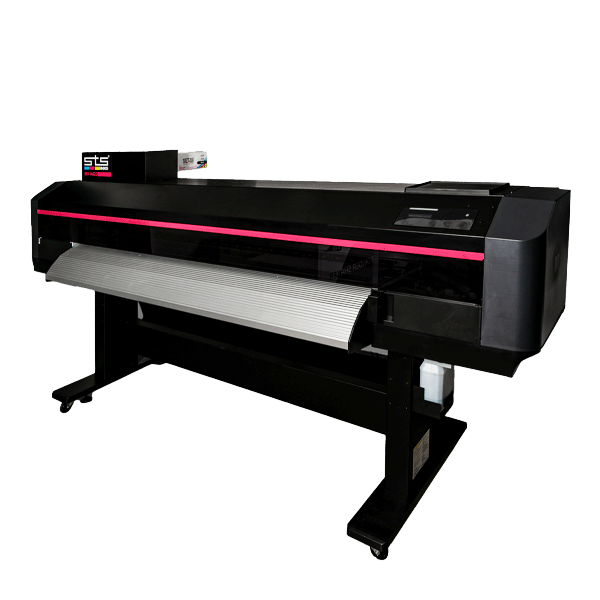

STS XPJ 1682D 64 Inch DTF Printer Kit

by STS Inks
SKU
Sold out
$25,999.00 - $25,999.00
$25,999.00
$25,999.00 - $25,999.00
$25,999.00
Finance Options
Request A Quote

The STS XPJ 1682D 64” DTF Printer is a high-performance printing solution crafted in Japan. It boasts a staggered dual-head design that enables ultra-fast print speeds and produces smooth gradations, ensuring high-quality printing even with reduced resolution.

Key features include:

  1. SAI’s Flexi 22 DTF Edition RIP Software: Bundled with Flexi 22 DTF Editor for advanced editing and printing capabilities.
  2. Automatic Bi-directional Alignments: Enhances print accuracy and quality.
  3. User-friendly Touch Panel: Simplifies operation with intuitive controls.
  4. LED Lighting: Improved visibility for easier operation.
  5. Upgraded Media Feed Flange: Allows for quick and easy loading of media and the exchange of multiple rolls, enhancing operational efficiency.

These features are designed to optimize user-friendliness and maintenance, while still delivering high production and superior output quality. The XPJ-1682D pairs with STS’s DTF ink, known for its excellent color gamut and outstanding durability, ensuring vibrant and long-lasting prints.

What comes in the Printer Package:

STS 1682D Direct to Film Printer /Ink Adaptor/High Capacity- 8pcs
STS/MUT Direct to Film 220ml Cart.- Cleaning Solution x10
Cold Peel Inkjet Film - Single Sided Matte Roll - 23.9" x 325'
500ml Cartridge - Cyan
500ml Cartridge - Magenta
500ml Cartridge - Yellow x2
500ml Cartridge - Black x2
500ml Cartridge - White x4
Flexi STS DTF Edition
DTF-P-1 TPU Powder- Low Temp 225 F - 2 KG
STS Direct to Film Nozzle Busting Solution 500ml

STS XPJ-1682D

  • POWERED BY STS DTF INKS
  • FLEXI 22 DTF EDITION RIP SOFTWARE
  • NEW MEDIA HANDLING
  • AUTOMATIC HEAD ALIGNMENTS
  • UPGRADED TOUCH PANEL
Repeat Grid 1
STS 64” XPJ 1682D DTF Printer

XPJ-1682D printer features include

  • STS DTF Inks (CMYYKK WWWW).
  • Built-in color sensor for auto bidirectional alignments.
  • Improved feed mechanism corresponding to a wide range of media.
  • MUTOH Status Monitor (MSM) checks printer status in real time and print history.
  • Media flange allows for easy loading.
  • White ink circulation.
  • Nozzle area selection.
  • Drop Master 2 Technology.

Works on Most any Fabrics

Since DTG technology works best on cotton pre-treated fabrics. DTF opens the door to a wide range of choices and is capable of printing onto non-treated cotton, silk, polyester, denim, nylon, leather, 50/50 blends, and more. It works equally well on white and dark textiles.

XpertJet 1682SD Specifications

Printing systems Drop-on-demand Micro Piezo Inkjet Technology
Print head height Three level adjustment: Low 1.5mm, Mid. 2.5mm, High 4.0mm
Print head 2 (staggered set-up)
Max print resolution 1440x1440dpi
Print modes 1440/1080/720/360dpi
Media width 64”
Media capacity ø 5.9” dia / 2” & 3” cores /Roll media 66lbs or less
Max media thickness Low 0.3mm, Mid. 1.3mm, High 2.8mm
Max printable width 63.6 in
Height adjustment Automatic
RIP software Flexi 22 DTF Edition
Ink Type DTF Water Based
Ink Set CMYYKK WWWW
Volume 1000mL CMYK Lm Lc / 900mL White
No. of slots 8
Interface Gigabit-Ethernet (1000BASE-T )
Power Requirements AC 100-120V± 10%, 50/60Hz ± 1Hz
Printing Environment Operating temperature: 68°F – 75°F
Operating humidity range: 35% – 45%
Power Consumption Main: Operation status 77W or less | Standby: 52W or less
Dimensions (WxDxH) Printer including stand: 108.26”x35.23”x56.22” cover closed
Weight Body: 321.87lb | Stand: 70.54lb
