Roland TrueVIS XP-640 64" Printer

SKU ROXP-640
Original price $20,995.00 - Original price $20,995.00
Original price
$20,995.00
$20,995.00 - $20,995.00
Current price $20,995.00

Available exclusively in California.

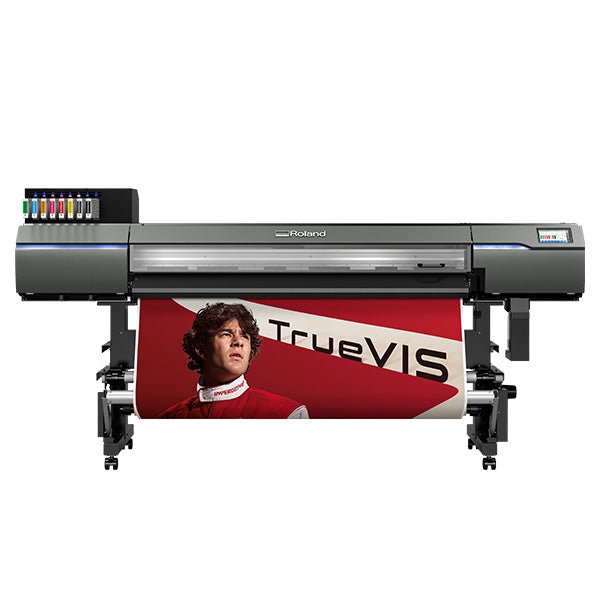

Roland TrueVIS XP-640 Large-Format Eco-Solvent Printer

Discover the Roland TrueVIS XP-640, a high-performance roll-to-roll printer engineered to deliver unmatched speed, precision, and vibrant color reproduction. Designed for professionals who demand exceptional results, the XP-640 sets a new benchmark for productivity and image quality in large-format printing.

Key Features:

  • Exceptional Productivity: The XP-640 features advanced dual staggered printheads and optimized data control for fast, high-resolution output with fewer passes.
  • Expanded Color Range: Equipped with Red ink and an 8-color setup including CMYK, Light Black, Green, and Orange, it achieves an impressive color gamut for dynamic, vivid prints.
  • Next-Level Efficiency: With twice the productivity of previous TrueVIS print-only models, this printer combines speed with cost-efficiency to support high-volume production.
  • Reliability You Can Trust: Backed by Roland DG’s renowned durability and support, the XP-640 is designed for long-term performance with minimal maintenance.

Why Choose the TrueVIS XP-640?

The XP-640 combines blazing speeds with uncompromised print quality, ensuring every project is completed efficiently and to the highest standards. From banners and vehicle wraps to backlit signage and wall coverings, this printer handles a wide variety of applications with ease.

Advanced Features for Seamless Operation:

  • High-Speed Printheads: Two large printheads deliver finer droplets for smoother gradients and sharp details.
  • Ultra-Wide Color Gamut: Achieve exceptional vibrancy and accurate reproduction of even challenging corporate colors.
  • Cost-Effective Printing: Innovative TH inks reduce ink consumption while maintaining outstanding results.
  • Ease of Use: A 7-inch touchscreen control panel and automated features streamline operation and minimize downtime.

Applications:

The XP-640 is versatile enough to tackle a wide range of print jobs, including:

  • Banners and billboards
  • Vehicle graphics
  • Window and floor decals
  • Backlit displays
  • Wall coverings

Specifications 


XP-640
Printing Method Piezo ink-jet method
Media Width 10.2 to 64 in. (259 to 1,625 mm)
Thickness Max. 39.3 mil (1.0 mm) with liner
Roll outer diameter Max. 9.8 in. (250 mm)
Roll weight Max. 99 lb. (45 kg)
Core diameter 3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing Width (*1) Max. 63.5 in. (1,615 mm)
Ink Type Eco-Solvent Ink (TH) 500 ml cartridge

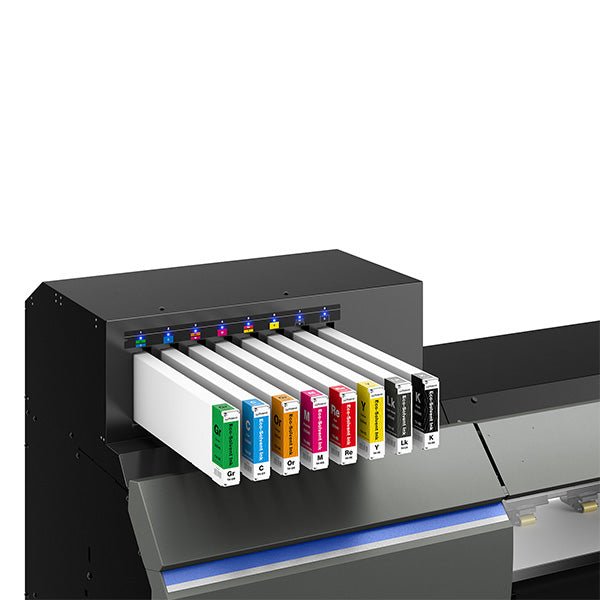

Colors Eight colors (Cyan, Magenta, Yellow, Black, Light Black, Green, Orange, and Red)
Four colors (Cyan, Magenta, Yellow, and Black)
Printing Resolution (dots per inch) Max. 1,800 dpi
Media Heating System (*2) Print heater set temperature: 86 to 113 °F (30 to 45 °C)
Dryer set temperature: 86 to 131 °F (30 to 55 °C)
Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving Function Automatic sleep feature
Rated Input 100-120 / 220-240 Va.c. 50 / 60 Hz 8.9 / 4.5 A
Power Consumption During Operation Approx. 1,180 W
Sleep Mode Approx. 50 W
Acoustic Noise Level During Operation 66 dB (A) or less
During Standby 53 dB (A) or less
Dimensions (Width x Depth x Height) 113.7 in. x 29.5 in. x 55.8 in. (2,886 mm × 748 mm × 1,415 mm)
Weight 417 lb. (189 kg)
Environment During Operation (*3) Temperature: 68 to 89.6 °F (20 to 32 °C), Humidity: 35 to 80% RH (no condensation)
Not Operating Temperature: 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80% RH (no condensation)
Included Items Dedicated stand, power cord, media take-up unit, media holders, replacement blade for separating knife, cleaning liquid bottle for maintenance, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect), etc.
*1 The length of printing is subject to the limitations of the application software.
*2
  • Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.
  • Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
*3 Operating environment (Use in an operating environment within this range.)
Humidity vs Temp




Next-Gen Performance

Unmatched Productivity & Precision

The XP-640 features advanced dual staggered printheads that produce finer ink droplets at higher densities. This results in high-resolution prints with fewer passes, boosting productivity without sacrificing quality.

TrueVIS Quality Prints

Achieve stunning graphics with the True Rich Color preset. This advanced color management tool combines vivid colors, smooth gradients, neutral grays, and natural skin tones for exceptional output.

Ultra-Wide Color Gamut

With the addition of a new red ink cartridge, the XP-640 significantly expands the color gamut. Experience vibrant, rich colors and precise reproduction for even the most demanding designs.

Versatility

This printer supports a wide variety of media types, enabling efficient and accurate production for everything from banners to backlit signage. Its adaptability makes it the perfect solution for diverse printing needs.

Cost Efficiency

The XP-640 is designed with cost-effectiveness in mind. Using low-cost TH inks with reduced ink consumption, it offers exceptional value while maintaining outstanding print quality.

Enhanced Usability

Equipped with a 7-inch LCD touchscreen panel and a perforated sheet cutting feature, the XP-640 streamlines your workflow. These intuitive features minimize post-processing time and simplify operation for high-volume production environments.


Picture Perfect Productivity

The TrueVIS XP-640 is engineered to balance exceptional image quality with unmatched productivity. Offering both 8-color (CMYKLkOrGrRe) and dual CMYK configurations, this printer is built to handle high-volume jobs efficiently. In billboard mode, the 8-color setup delivers a remarkably wide color gamut for vibrant prints, while the dual CMYK configuration achieves vivid output at blazing speeds of up to 819 ft² per hour.


Where Efficiency Meets Versatility

The XP-640 is more than a printer—it's a complete solution designed to simplify and enhance your workflow. With cutting-edge features that maximize efficiency, it supports a diverse range of applications, including:

  • Banners and Billboards
  • Vehicle Graphics
  • Event Marketing Materials
  • Window and Floor Graphics
  • Backlit Displays
  • Wall Coverings

This printer combines versatility and innovation, making it the ideal choice for businesses that demand both high output and exceptional quality.


Unparalleled Color Gamut

The XP-640 introduces a vibrant red ink cartridge that enhances the already expansive TrueVIS color range. Integrated seamlessly with CMYK, Light Black, Green, and Orange inks, this addition ensures superior color accuracy and vibrancy. Reproduce corporate colors with precision and bring your most creative designs to life with this expanded palette.


Lowest Operating Costs in Its Class

Designed for high-volume production, the XP-640 offers exceptional cost efficiency. Utilizing advanced TH inks, it reduces ink consumption while maintaining top-tier image quality. Combined with the innovative True Rich Color preset, this printer helps you achieve stunning results while keeping your operating costs low and your profitability high.


Large Format Made Effortless

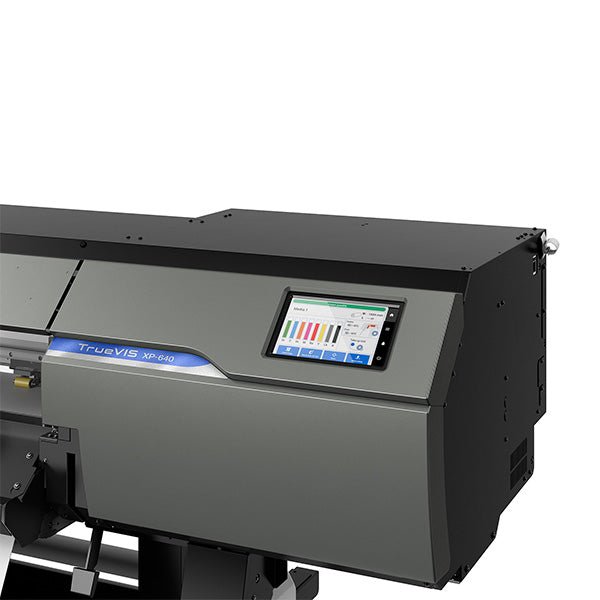

Quick Access with an Intuitive LCD Panel

The built-in 7-inch color touchscreen provides a user-friendly interface for accessing key printer functions. Check ink levels, monitor print progress, and adjust settings with ease—all at the touch of a button.

Automatic Media Take-Up System

Loading media is hassle-free with the XP-640’s automatic take-up system. Align the media, secure it with tape, and let the printer handle the rest, streamlining your workflow.

Perforated Sheet Cutting for Efficiency

Reduce post-production time with the perforated sheet cutting feature, which eliminates the need for additional tools. This unique functionality simplifies high-volume printing, minimizes handling errors, and saves valuable workspace.


Automated Adjustments for Time Savings

With its automatic media gap adjustment feature, the XP-640 takes the guesswork out of calibration. TrueVIS optical registration technology evaluates and adjusts media gaps, ensuring consistent results and freeing up your time for other tasks.


Built for Long-Term Reliability

The XP-640 is designed to keep your business running smoothly. With minimal maintenance requirements, you can easily replace components like caps, wipers, and flushing sponges without the need for a service engineer. This proactive design reduces downtime, ensuring that your printer delivers consistent performance for years to come.


Included VersaWorks 6 RIP Software

The Roland TrueVIS XP-640 comes with the latest version of VersaWorks 6 RIP Software, making print output management seamless from the moment you unbox your printer. Designed for maximum efficiency, this software simplifies your workflow while offering advanced features for precise results.

  • Optimized Print Management: Five print queues, five hot folders, and unlimited queue settings provide unparalleled flexibility.
  • Enhanced Job Assistance: Layout and edit cut lines directly in VersaWorks 6, perfect for dual machine print-and-cut workflows.
  • Advanced Tools: Crop, tile, nest, and more with ease using intuitive tools designed for professional applications.
  • Consistent Color Matching: Achieve uniform output across multiple printers and print modes with Printer Color Match Settings, compatible with tools like the i1 Pro3 and VW-S1 color measuring device.

Master Print Operations with the Roland DG Connect App

Streamline your printing process with the Roland DG Connect App, a powerful tool designed to keep your XP-640 running at peak performance. This user-friendly app offers real-time insights into your device’s performance, helping you minimize downtime and improve efficiency.

  • Centralized Management: Monitor and manage your print operations across multiple users and locations from a single interface.
  • Performance Optimization: Stay on top of your printer’s health and ensure it’s running at optimal levels.

GREENGUARD Gold Certified TH Ink

The XP-640 uses TH Ink, which is GREENGUARD Gold certified for indoor air quality. This environmentally friendly ink expands your color gamut, enabling you to produce vibrant, eye-catching graphics that set your prints apart.


Industry-Leading Warranty and Support

The Roland TrueVIS XP-640 is backed by Roland DG’s 2-Year Limited Warranty, ensuring you’re covered for any potential issues.

Warranty Highlights:

  • Includes two years of coverage when registered within 60 days of purchase.
  • Requires use of OEM inks, maintaining a connection to Roland DG Connect, and adherence to specified maintenance intervals with Care Packs.
  • Supported by Roland DG’s industry-best customer service team, committed to helping you succeed.
