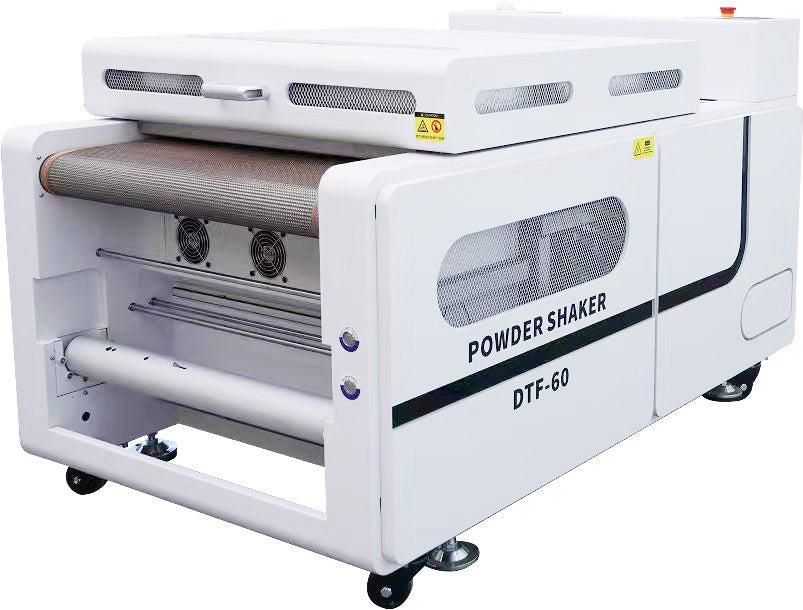

Audley ADL07K12 24" DTF Powder Shaker & Dryer

The Audley ADL07K12 24" DTF Powder Shaker & Dryer is designed to pair seamlessly with Audley DTF printers and create an efficient, automated DTF production workflow.

Supporting PET transfer film up to 23.6" wide, the ADL07K12 combines automatic media transport, powder curing, controlled heating, film take-up, and built-in air purification into one professional production system.

With an applicable media speed of up to approximately 88.6 linear ft./min., six 300W heating lamps, and a two-stage adjustable drying system, the ADL07K12 provides consistent and reliable powder curing for professional DTF production.

Why Choose the ADL07K12?

Professional DTF Production — Designed specifically for continuous DTF transfer production and compatible with PET transfer film up to 23.6" wide.

High-Speed Media Handling — Supports applicable media speeds up to approximately 88.6 linear ft./min.

Six Heating Lamps — Six 300W heating lamps provide a combined 1,800 watts of heating capacity for consistent powder curing.

Adjustable Drying Temperature — Recommended drying temperatures range from 194°F to 248°F, allowing the system to be adjusted for different production requirements.

Heated Platform — The platform operates at approximately 167°F to support consistent media processing.

Mesh Belt Conveyor — Integrated mesh belt media transport provides smooth movement through the curing system.

Integrated Take-Up System — Automatically collects finished transfer film for an efficient roll-to-roll production workflow.

Built-In Air Purifier — The ADL07K12 includes an integrated purification system to help manage the DTF curing process.

Technical Specifications

Professional Powder Curing

The ADL07K12 uses six 300W lamp-tube heating units to provide consistent heat across the transfer film during production.

The recommended drying temperature can be adjusted between 194°F and 248°F, while the heated platform operates at approximately 167°F.

This combination helps provide controlled and consistent curing of DTF adhesive powder as the printed film travels through the system.

Automated Media Transport & Take-Up

The integrated mesh belt conveyor and take-up system helps automate the production process from freshly printed film through powder curing and final collection.

Instead of manually handling individual sheets, operators can maintain a continuous roll-to-roll workflow for higher-volume DTF production.

Built-In Air Purification

The ADL07K12 includes a built-in air purifier, helping create a more self-contained DTF curing system.

The purifier is integrated directly into the machine, eliminating the need to position a separate purification unit next to the shaker.

Electrical Requirements

Power Supply: AC 220V, 50–60Hz
Maximum Power: 2,900W

For commercial installation, the electrical circuit and outlet should be properly sized for the equipment according to the manufacturer's requirements and applicable electrical codes.

Machine Dimensions

Machine:
63.4" L × 37.0" W × 37.4" H

Packing / Shipping Size:
66.9" L × 42.9" W × 43.7" H

Machine Weight:
Approximately 534 lbs., including the built-in purifier.

1-Year Warranty

The Audley ADL07K12 Powder Shaker & Dryer includes a 1-year warranty, giving professional print shops additional confidence in their DTF equipment investment.

Designed for Audley DTF Production

The ADL07K12 is designed to pair with Audley DTF printers, providing a complete workflow for powder curing, drying, media transport, and finished film collection.

For a high-production 24" DTF setup, the ADL07K12 can be paired with the Audley S8074-3 4 Head 24" DTF Printer to create an integrated professional DTF production system.
